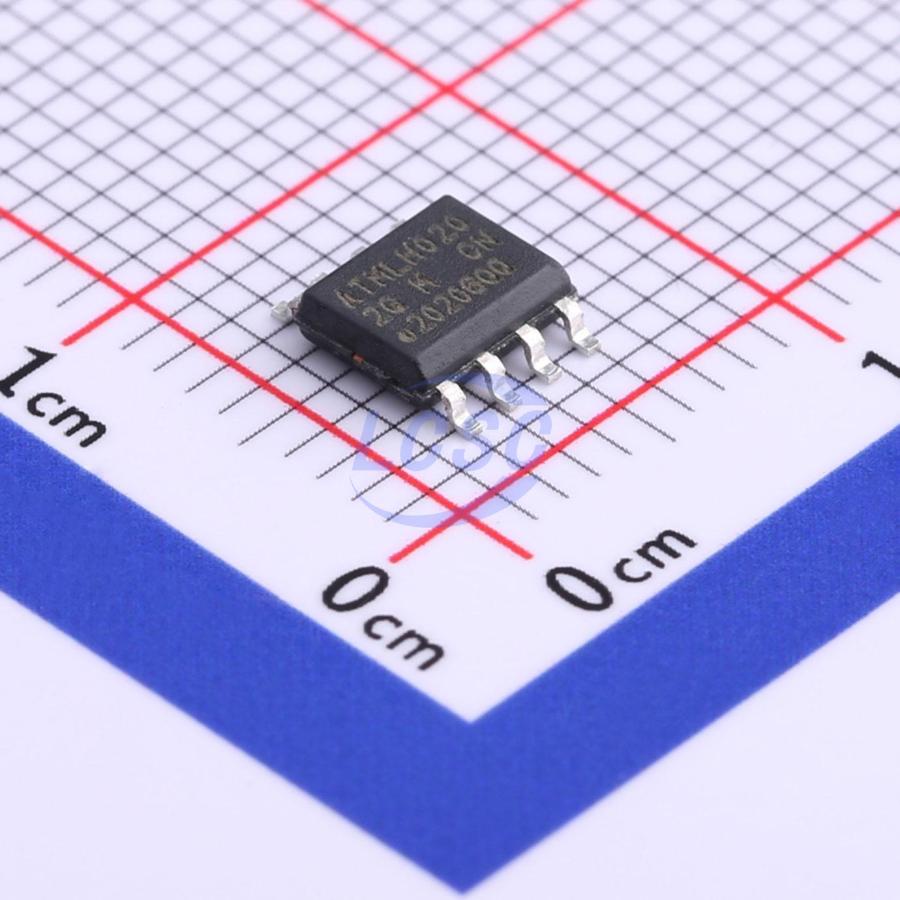

AT24CM01-SSHM-T
1Mbit 1MHz I2C SOIC-8 Memory RoHS
I²C-Compatible Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,758 in stock
#C68393
Stock & price checked 6 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.18 | ₹211.18 |
| 10+ | ₹177.15 | ₹1,771.50 |
| 30+ | ₹158.50 | ₹4,755.00 |
| 100+ | ₹131.61 | ₹13,161.00 |
| 500+ | ₹122.28 | ₹61,140.00 |
| 1,000+ | ₹117.96 | ₹1,17,960.00 |
1 × ₹211.18
₹211.18
excl. GST
₹249.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24CM01-SSHM-T
₹211.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Page write protection function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns;550ns
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 6uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991B1B2
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The Atmel AT24CM01 provides 1,048,576 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 131,072 words of 8 bits each. The device’s cascadable feature allows up to four devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The devices are available in space-saving 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCSP. In addition, the entire family is available in 1.7V (1.7V to 5.5V) and 2.5V (2.5V to 5.5V) versions.
Key features
- Low Voltage and Standard Voltage Operation Available 1.7V (VCC = 1.7V to 5.5V) 2.5V (VCC = 2.5V to 5.5V)
- Internally Organized 131,072 x 8
- 2-wire Serial Interface
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol 400kHz (1.7V) and 1MHz (5V, 2.5V) Compatibility
- Write Protect Pin for Hardware Data Protection
- 256-byte Page Write Mode – Partial Page Writes Allowed
- Random and Sequential Read Modes
- Self-timed Write Cycle (5ms Max)
- High Reliability Endurance: 1,000,000 Write Cycles
- Data Retention: 40 Years
- Green Package Options (Pb/Halide-free/RoHS Compliant)
- 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead TSSOP, and 8-ball WLCS
- Die Sale Options: Wafer Form and Tape and Reel Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CM01-SSHM-B#C1349793MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹409.87 · 1 in stock | View |
 | AT24C1024BN-SH25-T#C36533655Tudi · SOP-8 | Tudi | SOP-8 | 2 | ₹391.14 · 2 in stock | View |
 | AT24CM01-SSHM-T-TUDI#C36533659Tudi · SOP-8 | Tudi | SOP-8 | 964 | ₹142.88 · 964 in stock | View |
 | AT24CM01-SSHD-T-TUDI#C36533660Tudi · SOP-8 | Tudi | SOP-8 | 535 | ₹142.88 · 535 in stock | View |
 | AT24C1024BN-SH-T#C36533654Tudi · SOP-8 | Tudi | SOP-8 | 5,548 | ₹435.65 · 5,548 in stock | View |
