MICROCHIP

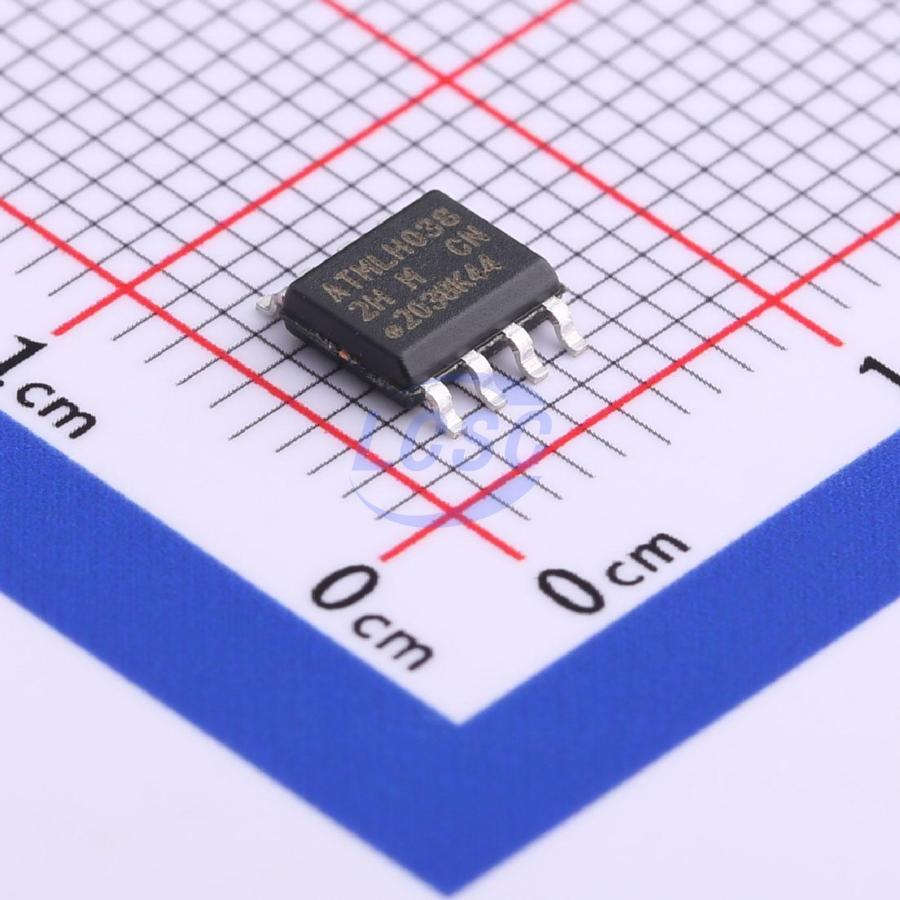

AT24CM02-SSHM-T
2Mbit 1MHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
I2C-Compatible (Two-Wire) Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,279 in stock
#C779670
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹416.20 | ₹416.20 |
| 10+ | ₹357.67 | ₹3,576.70 |
| 30+ | ₹321.17 | ₹9,635.10 |
| 100+ | ₹261.99 | ₹26,199.00 |
| 500+ | ₹244.93 | ₹1,22,465.00 |
| 1,000+ | ₹237.58 | ₹2,37,580.00 |
1 × ₹416.20
₹416.20
excl. GST
₹491.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT24CM02-SSHM-T
₹416.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function
- Memory Size
- 2Mbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 1MHz
- Access Time
- 4500ns;900ns;450ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 10ms
- Standby Supply Current
- 3uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- 3A991B1B1
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.162 g
Overview
Key features
- Low-Voltage and Standard-Voltage Operation:
- VCC = 1.7V to 5.5V
- VCC = 2.5V to 5.5V
- Internally Organized as 262,144 x 8 (2‑Mbit)
- Industrial Temperature Range: -40°C to +85°C
- I²C -Compatible (Two-Wire) Serial Interface:
- 100 kHz Standard mode, 1.7V to 5.5V
- 400 kHz Fast mode, 1.7V to 5.5V
- 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
- Schmitt Triggers, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write-Protect Pin for Full Array Hardware Data Protection
- Ultra Low Active Current (3 mA maximum) and Standby Current (μA maximum)
- 256-byte Page Write Mode:
- Byte write and partial page writes allowed
- Random and Sequential Read Modes
- Self-Timed Write Cycle:
- All write operations complete within 10 ms maximum
- Built-in Error Detection and Correction
- High Reliability:
- Endurance: 1,000,000 write cycles
- Data retention: 100 years
- Green Package Options (Lead-free/Halide-free/RoHS compliant)
- Die Sale Options: Wafer Form and Bumped Wafers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT24CM02-SSHM-B#C615471MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 92 | ₹587.57 · 92 in stock | View |
 | AT24CM02-SSHD-T#C461562MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 4,728 | ₹437.33 · 4,728 in stock | View |
 | AT24CM02-SSHD-B#C220680MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3 | ₹594.34 · 3 in stock | View |
 | AT24CM02-SSHM-T-TUDI#C36533661Tudi · SOP-8 | Tudi | SOP-8 | 648 | ₹239.81 · 648 in stock | View |
 | AT24CM02-SSHD-T-TUDI#C36533662Tudi · SOP-8 | Tudi | SOP-8 | 1,432 | ₹423.66 · 1,432 in stock | View |
