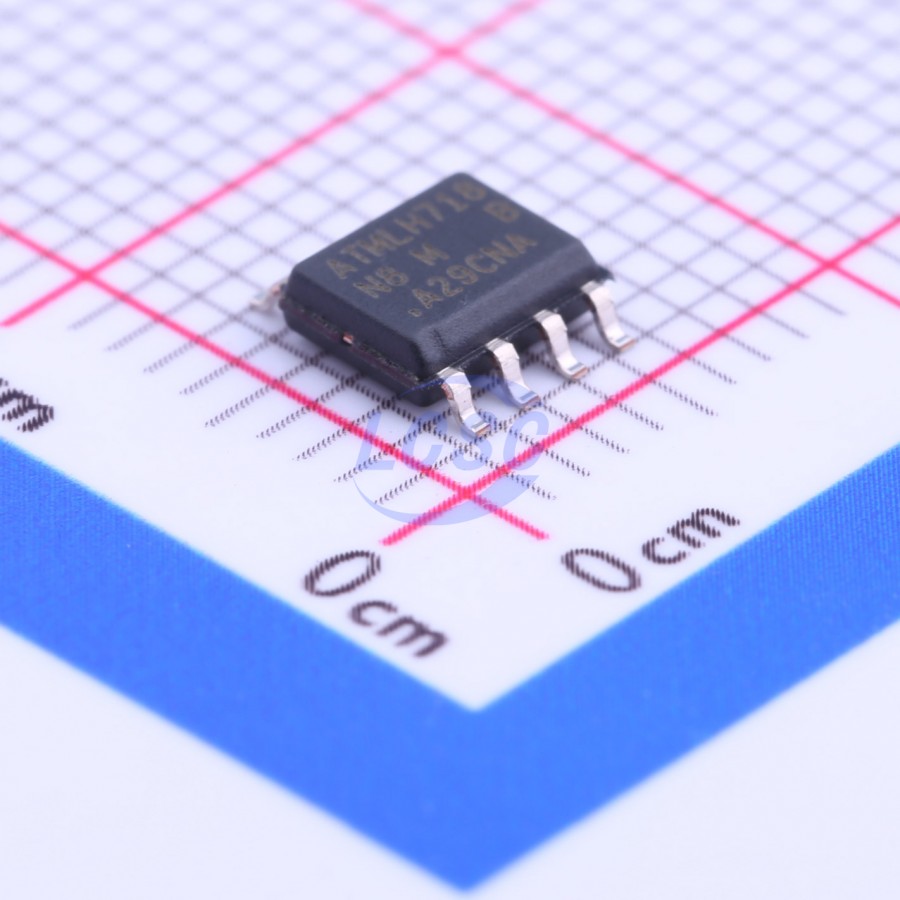

AT24CS08-SSHM-T

The Atmel AT24CS04 and AT24CS08 provides 4,096/8,192 bits of Serial Electrically Erasable and Programmable Read-only Memory (EEPROM) organized as 512/1,024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24CS04/08 is available in space-saving, 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN and 5-lead SOT23 packages and is accessed via a 2-wire serial interface. In addition, both devices fully operate from 1.7V to 5.5V VCC. The AT24CS04/08 provides the additional feature of a factory programmed, guaranteed unique 128-bit serial number, while maintaining all of the traditional features available in the 4-Kbit or 8-Kbit Serial EEPROM. The time consuming step of performing and ensuring true serialization of product on a manufacturing line can be removed from the production flow by employing the CS Series Serial EEPROM. The 128-bit serial number is programmed and permanently locked from future writing during the Atmel production process. Further, this 128-bit location does not consume any of the user read/write area of the 4-Kbit or 8-Kbit Serial EEPROM. The uniqueness of the serial number is guaranteed across the entire CS Series of Serial EEPROMs, regardless of the size of the memory array or the type of interface protocol. This means that as an application's needs for memory size or interface protocol evolve in future generations, any previously deployed serial number from any Atmel CS Series Serial EEPROM part will remain valid.

Key features

• Low-voltage Operation VCC = 1.7V to 5.5V
• Internally Organized as 512x8 (4-Kbit) or 1,024x8 (8-Kbit)
• I2C-compatible (2-wire) Serial Interface
• Schmitt Trigger, Filtered Inputs for Noise Suppression
• Bidirectional Data Transfer Protocol
• 400kHz (1.7V) and 1MHz (2.5V, 2.7, 5.0V) Compatibility
• Write Protect Pin for Hardware Data Protection
• 16-byte Page Write Mode
• Partial Page Writes Allowed
• Self-timed Write Cycle (5ms Max)
• High-reliability Endurance: 1,000,000 Write Cycles
• Data Retention: 100 Years
• Green Package Options (Pb/Halide-free/RoHS-compliant)
• 8-lead JEDEC SOIC, 8-lead TSSOP, 8-pad UDFN, and 5-lead SOT23
• Die Sale Options: Wafer Form and Tape and Reel Available
• 128-bit Unique Factory-programmed Serial Number
• Permanently Locked, Read-only Value Stored in a Separate Memory Area
• Guaranteed Unique Across Entire CS Series of Serial EEPROMs
