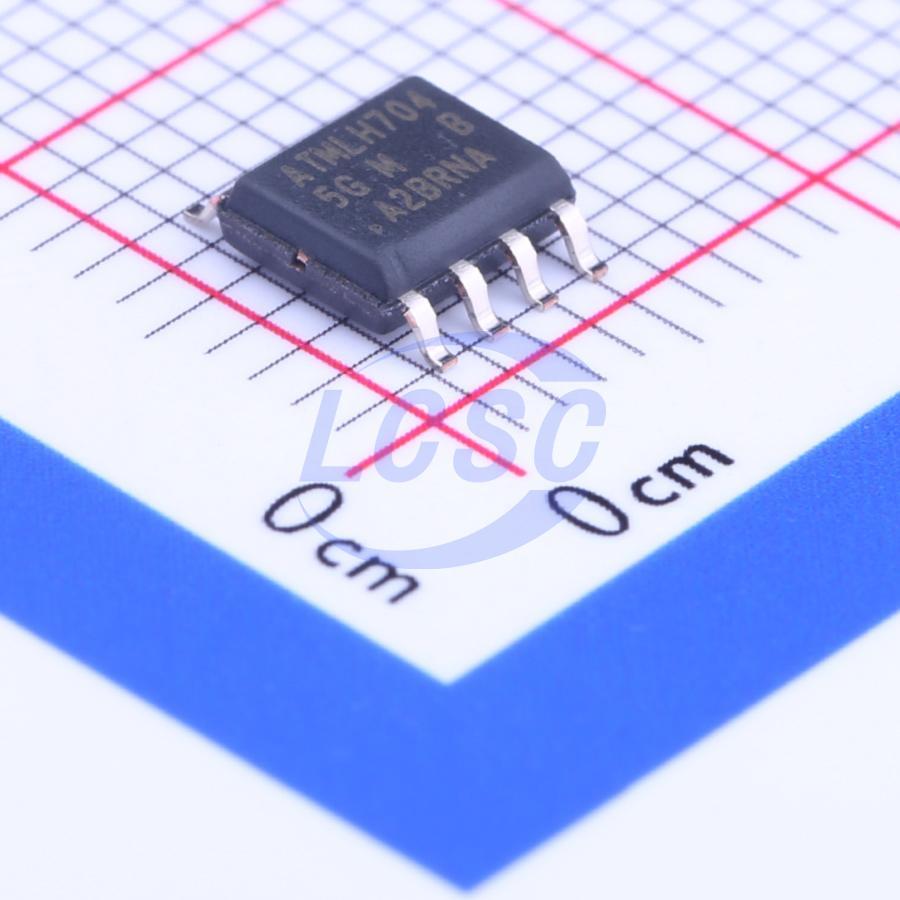

AT25M01-SSHM-T

The Atmel AT25M01 provides 1,048,576 bits of Serial Electrically Erasable Programmable Read-Only Memory (EEPROM) organized as 131,072 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT25M01 is enabled through the Chip Select pin (CS) and accessed via a 3-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO), and Serial Clock (SCK). All programming cycles are completely self-timed, and no separate Erase cycle is required before Write. Block Write protection is enabled by programming the status register with top %, top % or entire array of write protection. Separate Program Enable and Program Disable instructions are provided for additional data protection. Hardware data protection is provided via the WP pin to protect against inadvertent write attempts to the status register. The HOLD pin may be used to suspend any serial communication without resetting the serial sequence.

Key features

• Serial Peripheral Interface (SPI) Compatible
• Supports SPI Modes 0 (0,0) and 3 (1,1) Datasheet Describes Mode 0 Operation
• Low-voltage Operation VCC = 1.7V to 5.5V
• High Frequency Operation 20MHz Clock Rate Capable from 4.5V to 5.5V VCC 10MHz Clock Rate Capable from 2.5V to 5.5V VCC 5MHz Clock Rate Capable from 1.7V to 5.5V VCC
• 256-byte Page Mode and Byte Write Operation Supported
• Block Write Protection Protect %, %, or Entire Array
• Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection
• Self-timed Write Cycle (5ms max)
• High-reliability Endurance: 1,000,000 Write Cycles
• Data Retention: 100 Years
• Green Package Options (Pb/Halide-free/RoHS Compliant)
• 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, and 8-ball WLCSP
• Die Sales Options: Wafer Form, Waffle Pack, and Bumped Die
