RENESAS

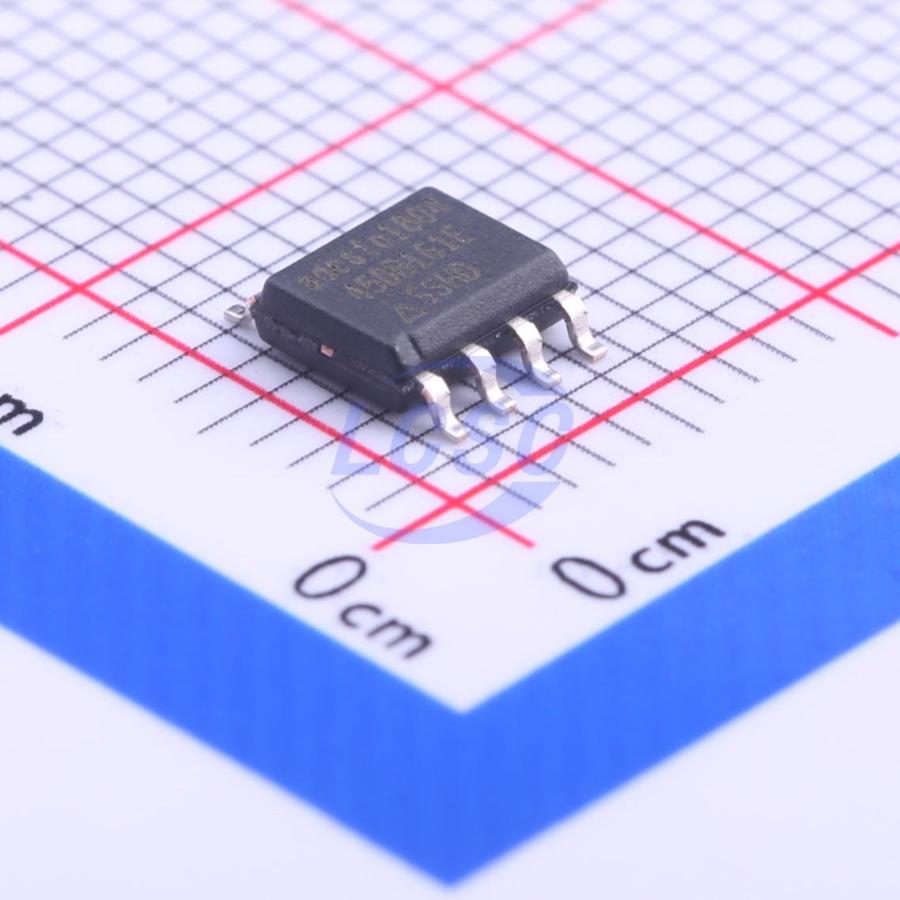

AT45DB161E-SSHD-T
16Mbit 2.3V~3.6V 85MHz SPI SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
SPI Serial Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,089 in stock
#C66279
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹278.61 | ₹278.61 |
| 10+ | ₹235.68 | ₹2,356.80 |
| 30+ | ₹208.80 | ₹6,264.00 |
| 100+ | ₹181.26 | ₹18,126.00 |
| 500+ | ₹168.91 | ₹84,455.00 |
| 1,000+ | ₹163.48 | ₹1,63,480.00 |
1 × ₹278.61
₹278.61
excl. GST
₹328.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT45DB161E-SSHD-T
₹278.61 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.3V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 85MHz
- Data Retention - TDR (Year)
- 20 Years
- Standby Supply Current
- 25uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
Key features
- Single 2.3 V
- 3.6 V or 2.5 V
- 3.6 V supply - Serial Peripheral Interface (SPI) compatible
- Supports SPI modes 0 and 3
- Supports RapidS™ operation - Continuous read capability through entire array
- Up to 85 MHz
- Low - power read option up to 15 MHz
- Clock - to - output time (t_V) of 6 ns maximum
- User - configurable page size
- 512 bytes per page
- 528 bytes per page (default)
- Page size can be factory pre - configured for 512 bytes
- Two fully independent SRAM data buffers (512/528 bytes)
- Allows receiving data while reprogramming the main memory array
- Flexible programming options
- Byte/Page Program (1 to 512/528 bytes) directly into main memory
- Buffer Write
- Buffer to Main Memory Page Program
- Flexible erase options
- Page Erase (512/528 bytes)
- Block Erase (4 kB)
- Sector Erase (128 kB)
- Chip Erase (16 Mbits)
- Program and Erase Suspend/Resume
- Advanced hardware and software data protection features
- Individual sector protection
- Individual sector lockdown to make any sector permanently read - only
- 128 - byte, One - Time Programmable (OTP) Security Register
- 64 bytes factory programmed with a unique identifier
- 64 bytes user programmable
- Hardware and software controlled reset options
- JEDEC Standard Manufacturer and Device ID Read
- Low - power dissipation
- 400 nA Ultra - Deep Power - Down current (typical)
- 5 µA Deep Power - Down current (typical)
- 25 µA Standby current (typical)
- 7 mA Active Read current (typical @ 15 MHz)
- Endurance: 100,000 program/erase cycles per page minimum
- Data retention: 20 years
- Complies with full industrial temperature range
- Green (Pb/Halide - free/RoHS compliant) packaging options
- 8 - lead SOIC (0.150" wide and 0.208" wide)
- 8 - pad Ultra - thin DFN (5 x 6 x 0.6mm)
- 11 - ball Wafer Level Chip Scale Package
- Die in Wafer Form (contact factory for availability)
