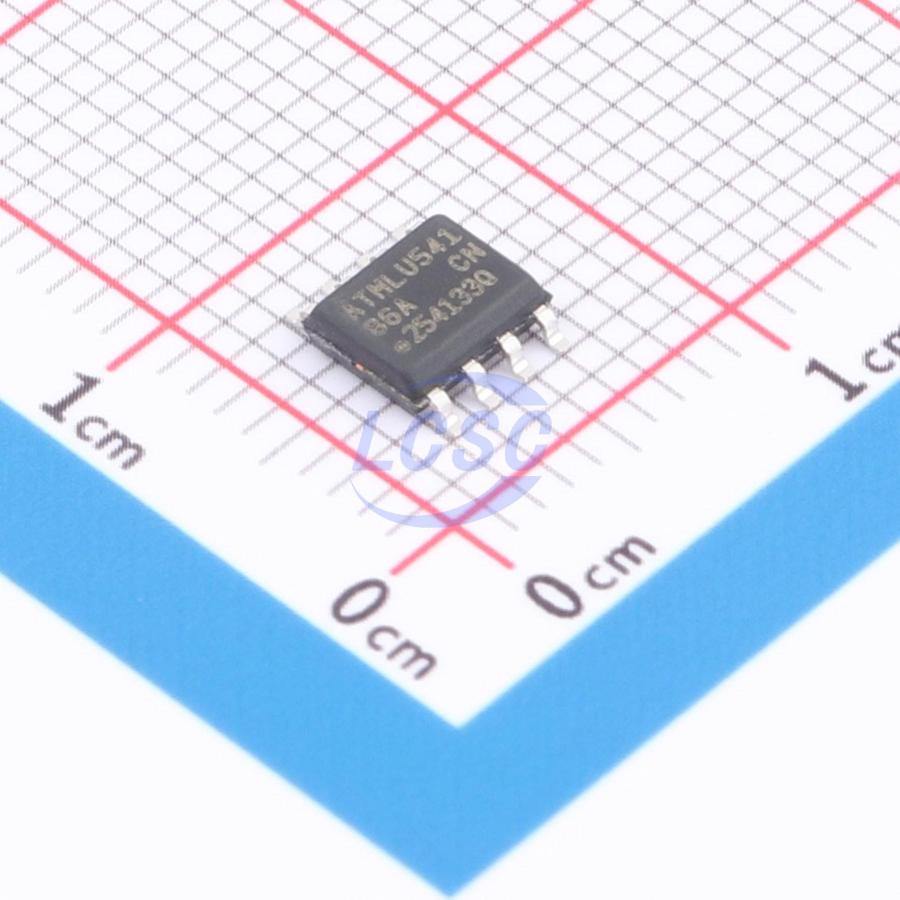

AT93C86A-10SU-2.7-T
16Kbit 2MHz SPI SOIC-8 Memory RoHS
3-wire Serial EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,138 in stock
#C6508
Stock & price checked 6 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.69 | ₹82.69 |
| 10+ | ₹64.89 | ₹648.90 |
| 30+ | ₹56.00 | ₹1,680.00 |
| 100+ | ₹47.10 | ₹4,710.00 |
| 500+ | ₹41.89 | ₹20,945.00 |
| 1,000+ | ₹39.07 | ₹39,070.00 |
1 × ₹82.69
₹82.69
excl. GST
₹97.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
AT93C86A-10SU-2.7-T
₹82.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 2.7V~5.5V;2mA
- Clock Frequency
- 2MHz
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 10ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
The AT93C86A provides 16384 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 1024 words of 16 bits each when the ORG Pin is connected to Vcc and 2048 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT93C86A is available in space saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP and 8-lead TSSOP packages.
Key features
- Low-voltage and Standard-voltage Operation – 2.7 (VCC = 2.7V to 5.5V) – 1.8 (VCC = 1.8V to 5.5V)
- User Selectable Internal Organization – 16K: ±2048x8 or 1024 x 16
- 3-wire Serial Interface
- Sequential Read Operation
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- 2 MHz Clock Rate (5V) Compatibility
- Self-timed Write Cycle (10 ms max)
- High Reliability – Endurance: 1 Million Write Cycles – Data Retention: 100 Years
- Automotive Grade, Extended Temperature and Lead-Free/Halogen-Free Devices Available
- 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead MAP and 8-lead TSSOP Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AT93C86A-10SU-2.7#C1349835MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹203.91 · 1 in stock | View |
 | M93C86-WMN6TP#C111883ST · SOIC-8 | ST | SOIC-8 | 2,170 | ₹43.16 · 2,170 in stock | View |
 | 25LC160T-I/SN#C2061749MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 22 | ₹243.66 · 22 in stock | View |
 | M93C86-RMN3TP/K#C1852773ST · SOP-8 | ST | SOP-8 | 9 | ₹88.19 · 9 in stock | View |
 | 93LC86B-I/SN#C1350246MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 1 | ₹101.75 · 1 in stock | View |
