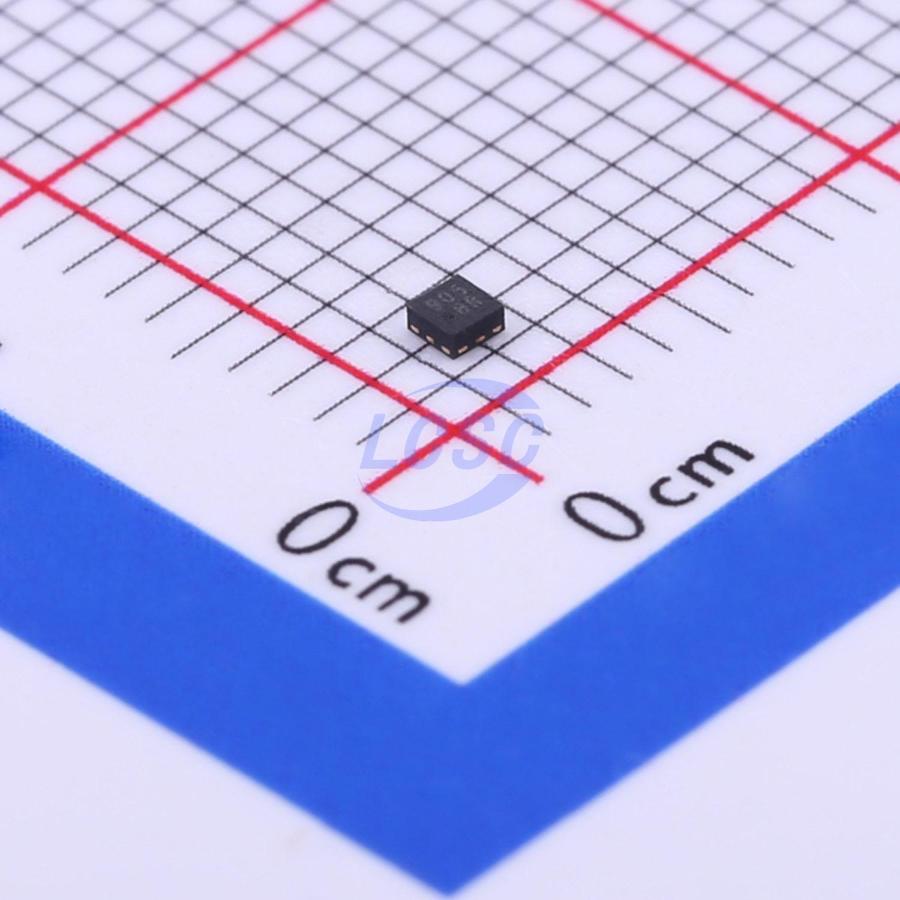

AW33905FCR
1 5A Active High Load Switch FCQFN-9(1.2x1.2) Power Distribution Switches, Load Drivers RoHS
FCQFN-9(1.2x1.2)ROHS CompliantActive
Over-Voltage Protection Load Switch
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW33905FCR
- Store part #
- C401024
- Package / case
- FCQFN-9(1.2x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C401024
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.88 | ₹144.40 |
| 50+ | ₹22.65 | ₹1,132.50 |
| 150+ | ₹19.96 | ₹2,994.00 |
| 500+ | ₹16.63 | ₹8,315.00 |
| 3,000+ | ₹15.15 | ₹45,450.00 |
| 6,000+ | ₹14.25 | ₹85,500.00 |
5 × ₹28.88
₹144.40
excl. GST
₹170.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AW33905FCR
₹144.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overvoltage protection;Over temperature protection;Under-voltage lockout;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 5A
- Control Input Logic
- Active High
- RDS(on)
- 30mΩ
- Operating Voltage
- 3V~30V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The AW339XX features an ultra-low 30mΩ (typ.) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 32VDC. The default OVP threshold is 5.95V (AW33901), 6.2V (AW33902), 6.8V (AW33905), 9.98V (AW33909) and 10.5V (AW33910). The OVP threshold can be adjusted from 4V to 20V through external OVLO pin. The device features an open-drain output ACOK (overline): when VIN_UVLO < VIN < VIN_OVLO and the switch is on, ACOK (overline) will be driven low to indicate a good power input, otherwise it is in high impedance mode (HiZ). The AW339XX is available in a RoHS compliant 1.2mm × 1.2mm FCQFN-9 package.
Applications
- Smartphones
- Tablets
- Charging Ports
Key features
- Highly reliable 1.2mm × 1.2mm FCQFN-9 package
- Integrated low Rdson nFET switch: typical 30mΩ
- 5A continuous current capability
- Default Over-Voltage Protection (OVP) threshold AW33901: 5.95V; AW33902: 6.2V; AW33905: 6.8V; AW33909: 9.98V; AW33910: 10.5V
- OVP threshold adjustable range: 4V to 20V
- Input maximum voltage rating: 32VDC
- Fast turn-off response: typical 50ns
- Over-Temperature Protection (OTP)
- Under-Voltage Lockout (UVLO)
