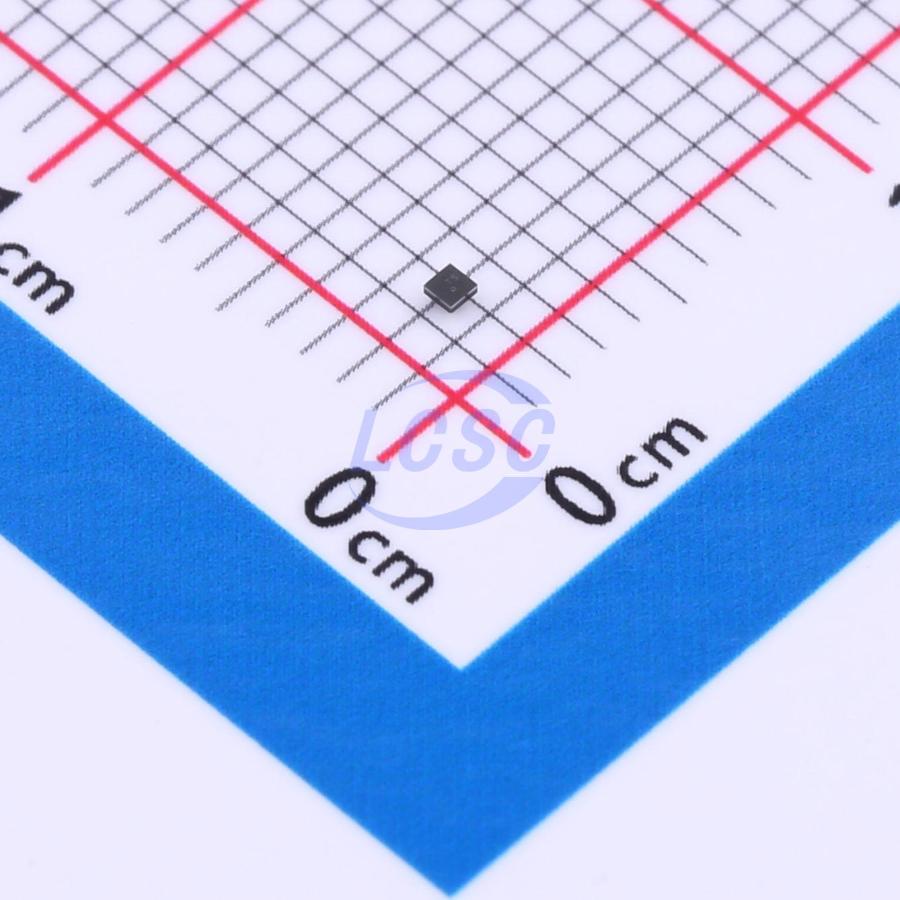

AWINIC(Shanghai Awinic Tech)

AW35121FOR

1 1.5A Active High High Side Switch FOWLP-4 Power Distribution Switches, Load Drivers RoHS

FOWLP-4ROHS CompliantActive

1.5A Ultra-small Load Switch with Slew Rate Control

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW35121FOR
Store part #: C5125887
Package / case: FOWLP-4
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C5125887

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹13.69	₹68.45
50+	₹10.82	₹541.00
150+	₹9.39	₹1,408.50
500+	₹8.32	₹4,160.00
3,000+	₹7.46	₹22,380.00
6,000+	₹7.03	₹42,180.00

Quantity (min 5, multiples of 5)

5 × ₹13.69

₹68.45

excl. GST

₹80.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW35121FOR

₹68.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Soft-start;Output discharge function
number of channels: 1
Maximum Continuous Current: 1.5A
Control Input Logic: Active High
RDS(on): 50mΩ
Operating Voltage: 1.2V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.006 g

Overview

The AW35121 is a load switch with output slew rate control. The device integrates a 64mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1.2V to 5.5V. The AW35121 features output slew rate control, limiting inrush current during turn-on to protect downstream devices. The AW35121 integrates a high side P channel MOSFET load switch, and provides a low on-resistance for a low voltage drop across the device. A controlled slew rate is used in applications to limit the inrush current. The part can be turned on, with a supply voltage from 1.2V to 5.5V.

Applications

Smartphones and Tablets
Portable Devices
Wearables

Key features

Integrated P-channel MOSFET load switch
Input voltage: 1.2V to 5.5V
1.5A maximum continuous switch current
Switch on-resistance(typ.): Rdson = 50mΩ at VIN = 5.5V; Rdson = 56mΩ at VIN = 4.2V; Rdson = 64mΩ at VIN = 3.3V; Rdson = 78mΩ at VIN = 2.5V; Rdson = 109mΩ at VIN = 1.8V; Rdson = 225mΩ at VIN = 1.2V
Controlled slew rate to limit inrush current
Internal EN Pull-Down Resistor
Quick output discharge
FOWLP 0.76mm × 0.76mm × 0.50mm · 4B package
