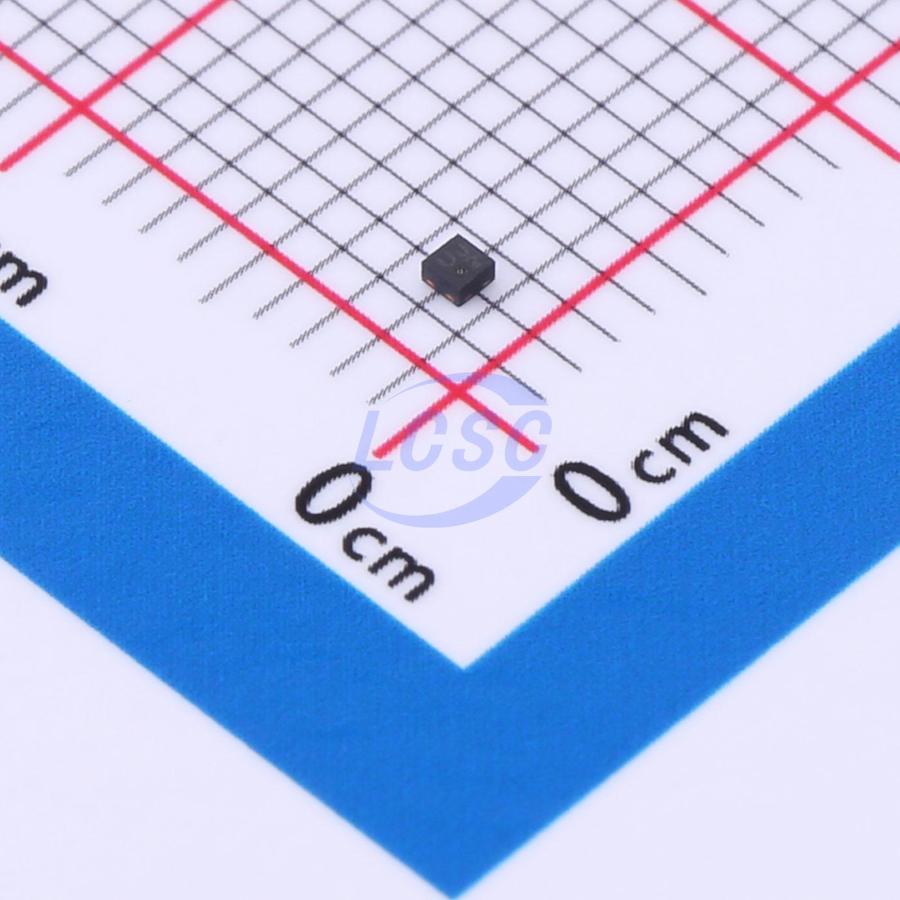

AWINIC(Shanghai Awinic Tech)

AW35122FDR

1 1.5A Active High High Side Switch FCDFN-4L(1x1) Power Distribution Switches, Load Drivers RoHS

FCDFN-4L(1x1)ROHS CompliantActive

1.5A Ultra-small Load Switch with Slew Rate Control

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW35122FDR
Store part #: C5125911
Package / case: FCDFN-4L(1x1)
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,515 in stock

#C5125911

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.77	₹68.85
50+	₹10.90	₹545.00
150+	₹9.47	₹1,420.50
500+	₹8.40	₹4,200.00
3,000+	₹7.78	₹23,340.00
6,000+	₹7.34	₹44,040.00

Quantity (min 5, multiples of 5)

5 × ₹13.77

₹68.85

excl. GST

₹81.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW35122FDR

₹68.85 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Features: Soft-start;Output discharge function
number of channels: 1
Maximum Continuous Current: 1.5A
Control Input Logic: Active High
RDS(on): 52mΩ
Operating Voltage: 1.2V~5.5V
Type: High Side Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.005 g

Overview

The AW3512/AW35122 is a load switch with output slew rate control. The device integrates a 66mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1.2V to 5.5V. The AW3512/AW35122 features output slew rate control, limiting inrush currents during turn-on to protect downstream devices. The AW3512/AW35122 integrates a high side P channel MOSFET load switch, and provides a low onresistance for a low voltage drop across the device. A controlled slew rate is used in applications to limit the inrush current. The part can be turned on, with a supply voltage from 1.2V to 5.5V.

Applications

Smartphones and Tablets
Portable Devices
Wearables

Key features

Integrated P-channel MOSFET load switch
Input voltage: 1.2V to 5.5V
1.5A maximum continuous switch current
Switch on-resistance(typ.): Rdson = 52mΩ at V1N = 5.5V; Rdson = 58mΩ at VIN = 4.2V; Rdson = 66mΩ at VIN = 3.3V; Rdson = 80mΩ at V1N = 2.5V; Rdson = 110mΩ at VIN = 1.8V; Rdson = 222mΩ at VIN = 1.2V
Controlled slew rate to limit inrush currents
Internal EN Pull-Down Resistor on AW35122
Quick output discharge
FCDFN 1mm×1mm×0.55mm×4L package
