AWINIC(Shanghai Awinic Tech)

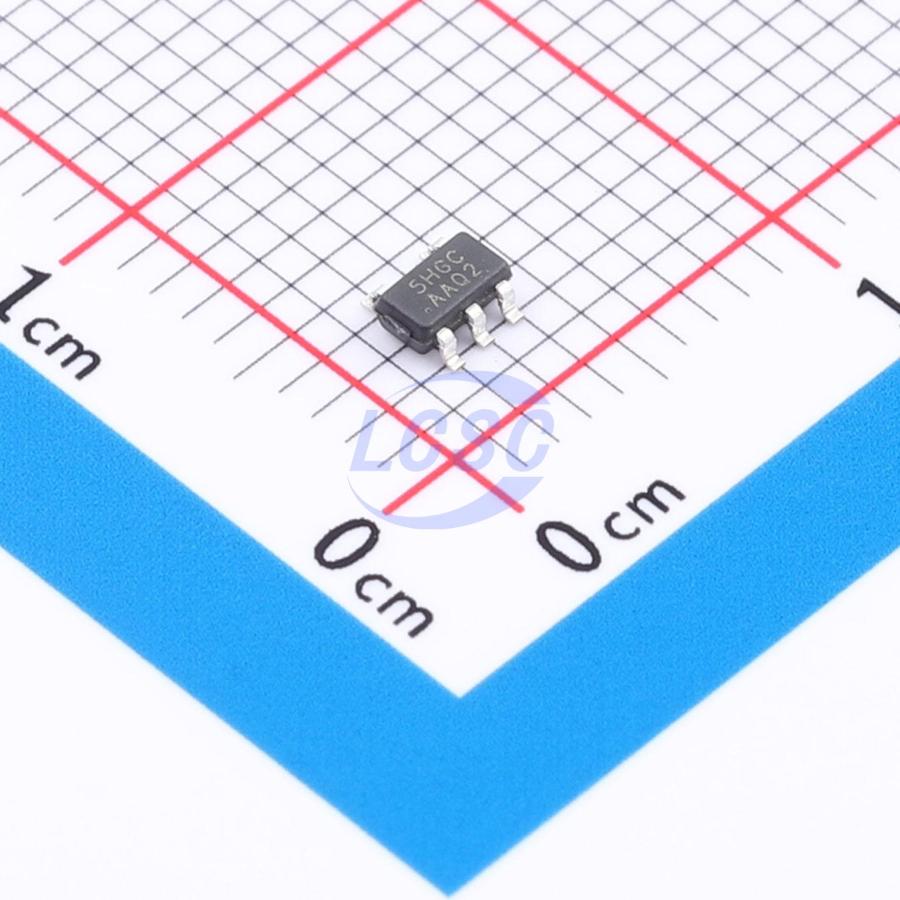

AW37030D180STR

1.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5LRoHSActive

Manufacturer: AWINIC(Shanghai Awinic Tech)
Manufacturer part #: AW37030D180STR
Store part #: C50379595
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,760 in stock

#C50379595

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
10+	₹6.09	₹60.90
100+	₹4.84	₹484.00
300+	₹4.22	₹1,266.00
3,000+	₹3.74	₹11,220.00
6,000+	₹3.37	₹20,220.00
9,000+	₹3.19	₹28,710.00

Quantity (min 10, multiples of 10)

10 × ₹6.09

₹60.90

excl. GST

₹71.86 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

AW37030D180STR

₹60.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

A low dropout voltage regulator featuring low on-resistance, high power supply rejection ratio, low noise, excellent load/line transient response, and smooth soft-start characteristics. The device integrates current limiting, short-circuit protection, and thermal shutdown functions to fully protect the IC from damage. Designed to operate with input ceramic capacitors of 1μF or greater and output ceramic capacitors of 1μF or greater. Its low power consumption and excellent dynamic response make it ideal for handheld communication devices. The miniature package enables high-density board mounting.

Applications

Battery-powered devices
Smartphones
Digital cameras
Set-top boxes

Key features

Input voltage range: 1.4V to 5.5V
Fixed output voltage: 1.1V, 1.2V, 1.5V, 1.55V, 1.8V, 2.5V, 2.8V, 2.85V, 2.9V, 2.95V, 3.0V, 3.1V, 3.3V
Rated output current: 300mA
Quiescent current: 50μA typical
Typical shutdown current: 0.1μA
Typical dropout voltage: 310mV (output current = 300mA, output voltage = 1.8V)
Power supply rejection ratio: 90dB typical (output current = 30mA, frequency = 1kHz, output voltage = 1.8V)
Noise: 33μVrms typical (output current = 30mA, bandwidth = 10Hz to 100kHz, output voltage = 1.8V)
Built-in output short-circuit protection: typical current limit 120mA on output-to-GND short
Package: DFN 1mm×1mm×0.37mm-4L, SOT 23-5L, DFN 2mm×2mm×0.75mm-6L
