AWINIC(Shanghai Awinic Tech)Datasheet (PDF)

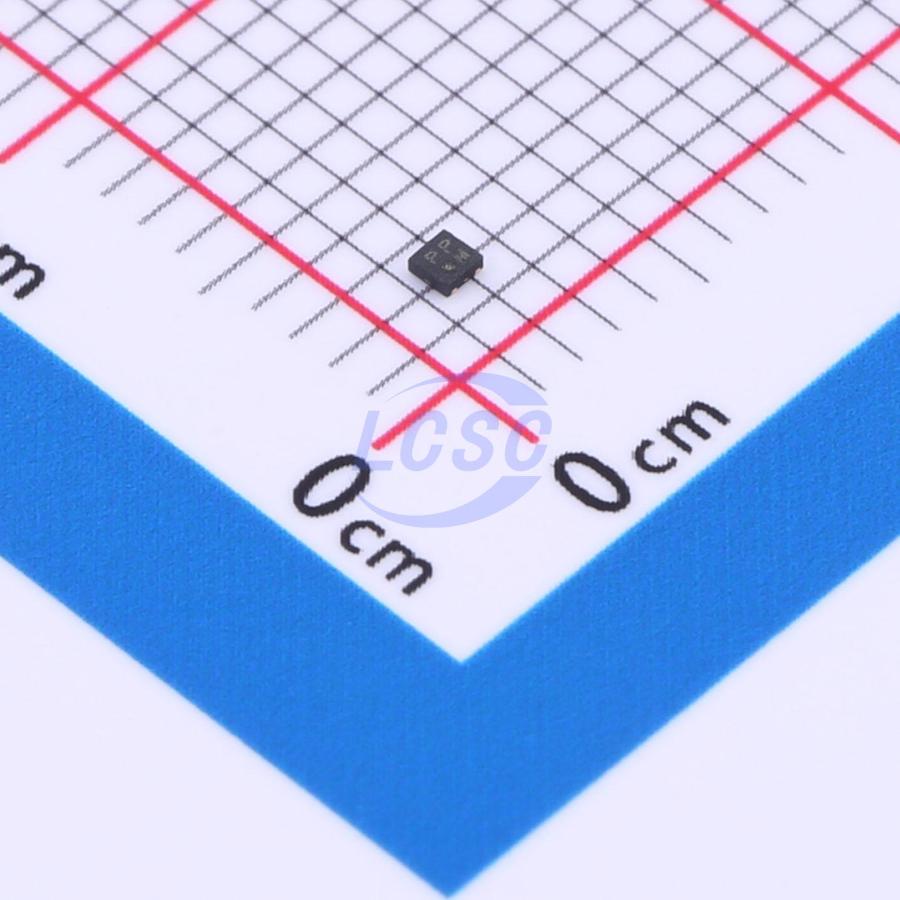

AW37030D330DNR
3.3V Positive Fixed DFN1x1-4L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN1x1-4LROHS CompliantActive
300 mA High Performance Low-Dropout Linear Regulator
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW37030D330DNR
- Store part #
- C5125909
- Package / case
- DFN1x1-4L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,000 in stock
#C5125909
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.56 | ₹55.60 |
| 100+ | ₹4.30 | ₹430.00 |
| 300+ | ₹3.68 | ₹1,104.00 |
| 3,000+ | ₹3.57 | ₹10,710.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.56
₹55.60
excl. GST
₹65.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AW37030D330DNR
₹55.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Built-in soft-start;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.006 g
Overview
A low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth softstart. Integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. Designed to work with a 1μF or more input ceramic capacitor and a 1μF or more output ceramic capacitor. The low power dissipation and good dynamic response make it very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
Applications
- Battery-powered equipment
- Smart phone
- Digital camera
- STB
Key features
- Input voltage range: 1.4V to 5.5V
- Fixed outputs of 1.1V, 1.2V, 1.5V, 1.55V, 1.8V, 2.5V, 2.8V, 2.85V, 2.9V, 2.95V, 3.0V, 3.1V, 3.3V
- Rated output current: 300mA
- Quiescent current: typical 50μA
- Typical 0.1μA shutdown current
- Typical 310mV dropout voltage (IOUT = 300mA, 1.8V output)
- Power supply rejection ratio: typical 90dB (IOUT = 30mA, freq = 1kHz, 1.8V output)
- Noise: typical 33μVrms (IOUT = 30mA, BW = 10Hz to 100kHz, 1.8V output)
- Built-in output short protection: typical 120mA when output short to ground
- DFN 1mmX1mmX0.37mm - 4L package and SOT 23 - 5L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AW37050D330DNR#C5162556AWINIC(Shanghai Awinic Tech) · DFN1x1-4L | AWINIC(Shanghai Awinic Tech) | DFN1x1-4L | 1,360 | ₹7.40 · 1,360 in stock | View |
 | AW37103D330DNR#C5241012AWINIC(Shanghai Awinic Tech) · DFN1x1-4L | AWINIC(Shanghai Awinic Tech) | DFN1x1-4L | 2,075 | ₹9.95 · 2,075 in stock | View |
