AWINIC(Shanghai Awinic Tech)Datasheet (PDF)

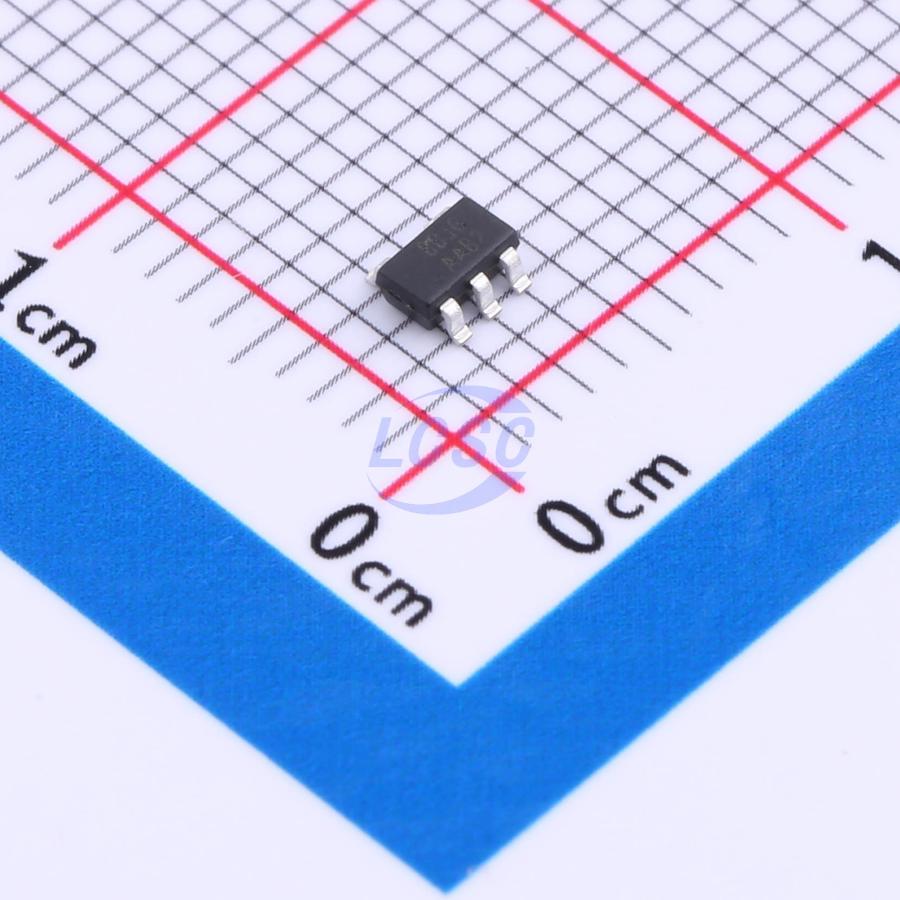

AW37030D330STR
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
300 mA High Performance Low-Dropout Linear Regulator
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW37030D330STR
- Store part #
- C5162551
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,100 in stock
#C5162551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.72 | ₹57.20 |
| 100+ | ₹4.46 | ₹446.00 |
| 300+ | ₹3.84 | ₹1,152.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.07 | ₹18,420.00 |
| 9,000+ | ₹2.88 | ₹25,920.00 |
10 × ₹5.72
₹57.20
excl. GST
₹67.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
AW37030D330STR
₹57.20 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.07 g
Overview
A low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response and smooth softstart. Integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. Designed to work with a 1 μF or more input ceramic capacitor and a 1 μF or more output ceramic capacitor. The low power dissipation and good dynamic response make it very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.
Applications
- Battery-powered equipment
- Smart phone
- Digital camera
- STB
Key features
- Input voltage range: 1.4V to 5.5V
- Fixed outputs of 1.1V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 2.85V, 2.9V, 2.95V, 3.0V, 3.1V, 3.3V
- Rated output current: 300mA
- Quiescent current: typical 50 μA
- Typical 0.1 μA shutdown current
- Typical 310 mV dropout voltage (IOUT = 300mA, 1.8V output)
- Power supply rejection ratio: typical 90dB (IOUT = 30mA, freq = 1kHz, 1.8V output)
- Noise: typical 33 μVrms (IOUT = 30mA, BW = 10Hz to 100kHz, 1.8V output)
- Built-in output short protection: typical 120mA when output short to ground
- DFN 1mmX1mmX0.37mm - 4L package and SOT 23 - 5L package
