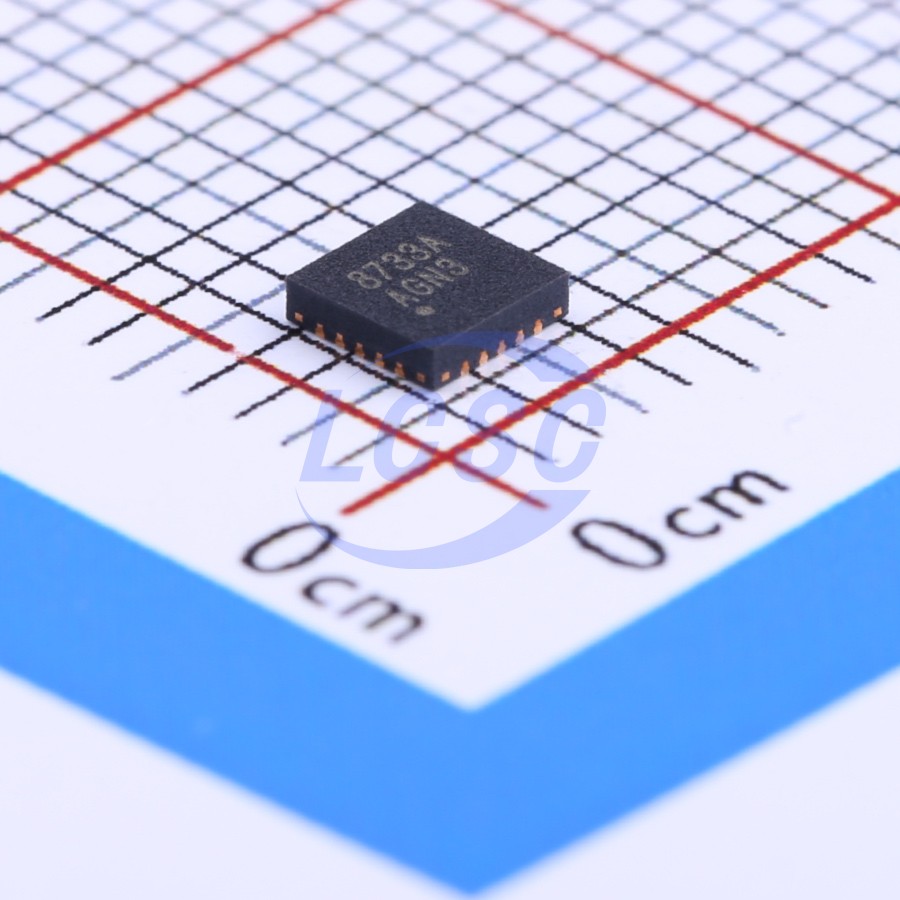

AW8733ATQR

The AW8733A features proprietary RNS technology to effectively suppress TDD noise. It boosts voltage to 6.3V within the lithium battery voltage range, delivering 2.0W output power to an 8Ω speaker at a 4.2V supply voltage with THD+N = 10%. The unique No Clip Noise (NCN) function automatically adjusts the amplifier gain based on the output signal level, providing a more comfortable listening experience. A single-wire pulse interface controls four operating states, enabling selection of different gain settings and NCN modes. Comprehensive protection features prevent chip damage under abnormal operating conditions. Minimal external components are required, making it ideal for portable applications. Available in a compact 3mm×3mm 20-Pin TQFN package with a small PCB footprint. Rated operating temperature range: -40°C to 85°C.

Applications

• Mobile phones
• Portable audio devices
• Mini speakers

Key features

• Proprietary RNS technology with superior TDD suppression
• Compatible with AW8733 compact 3mm×3mm 20-Pin TQFN package
• Output power 2.0W
• NCN technology for effective pop/click prevention
• EEE technology with excellent full-bandwidth EMI suppression
• Selectable gain: 12dB, 16dB, 24dB, 27.5dB
• Single-wire pulse control for four operating states
• Excellent Pop-Click noise suppression
• ±8KV HBM ESD
• ±450mA Latch-up
