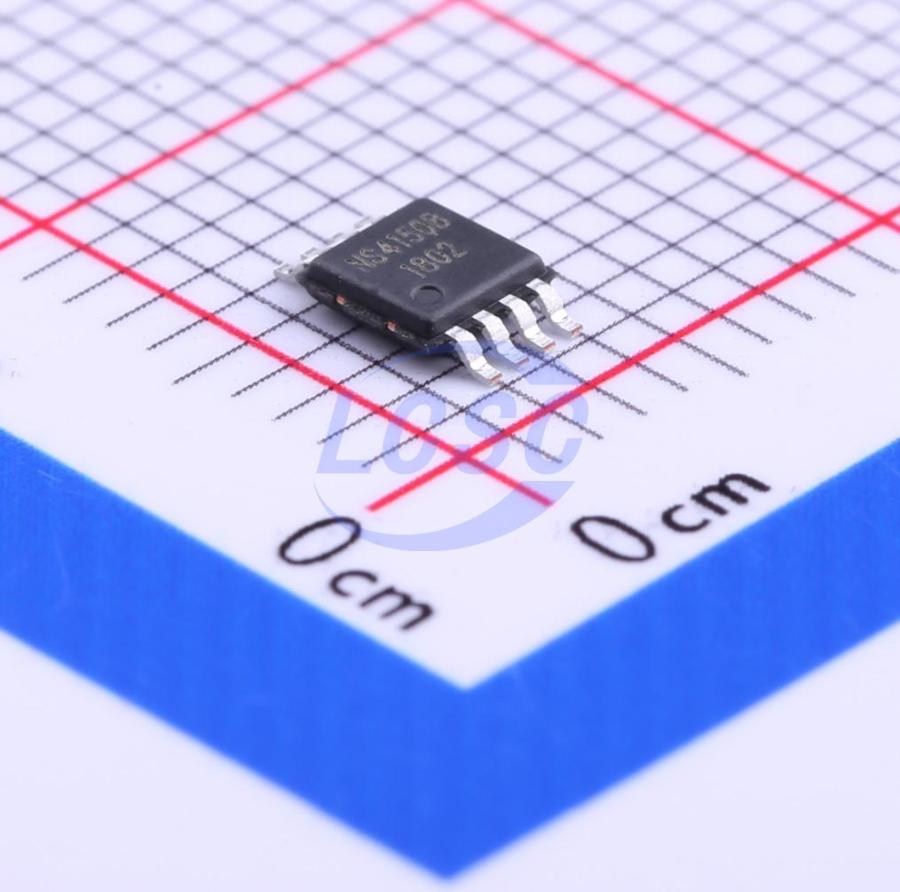

NS4150B
4mA 3V~5.25V 1-Channel 3Wx1@4Ω Class D MSOP-8 Audio Amplifiers RoHS
NS4150B 3.0W Mono Class-D Audio Power Amplifier
- Manufacturer
- Shenzhen Nsiway Tech
- Manufacturer part #
- NS4150B
- Store part #
- C189961
- Package / case
- MSOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,40,465 in stock
#C189961
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.95 | ₹84.75 |
| 50+ | ₹13.81 | ₹690.50 |
| 150+ | ₹12.19 | ₹1,828.50 |
| 500+ | ₹10.86 | ₹5,430.00 |
| 3,000+ | ₹8.14 | ₹24,420.00 |
| 6,000+ | ₹7.82 | ₹46,920.00 |
5 × ₹16.95
₹84.75
excl. GST
₹100.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NS4150B
₹84.75 for 5 + GST
Specifications
- Quiescent Current
- 4mA
- Voltage - Supply
- 3V~5.25V
- Features
- Filterless architecture;Enable/shutdown function;ESD protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.1%
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Efficiency
- 88%;90%
- Output Power
- 3Wx1@4Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -80dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
NS4150B is an ultra-low EMI, filterless 3W mono Class-D audio power amplifier. Operating from a 5V supply, it delivers 3W into a 4Ω load with up to 90% efficiency. Advanced technology is employed to significantly reduce EMI across the full bandwidth, minimizing interference with other components. The filterless PWM modulation architecture with integrated gain reduces external component count, PCB area, and system cost, while spread-spectrum technology fully optimizes the new circuit design. The device integrates overcurrent protection, overtemperature protection, and undervoltage protection, which shut down the device under abnormal operating conditions to prevent damage. Once the fault condition is removed, the NS4150B automatically resumes normal operation.
Applications
- Tablet
- Dash Cam
- Bluetooth Speaker
Key features
- Operating voltage range: 3.0V~5.0V
- Output power: 2.8W (5V/4Ω, THD=10%), 0.1% THD (0.5W/3.6V)
- Up to 88% efficiency
- High PSRR: -80dB (217Hz)
- Filterless Class-D architecture
- Excellent full-bandwidth EMI suppression
- Excellent pop-and-click noise suppression
- Low quiescent current: 4mA (3.6V supply, No load)
- Overcurrent protection, overtemperature protection, undervoltage protection
- MSOP8 package
