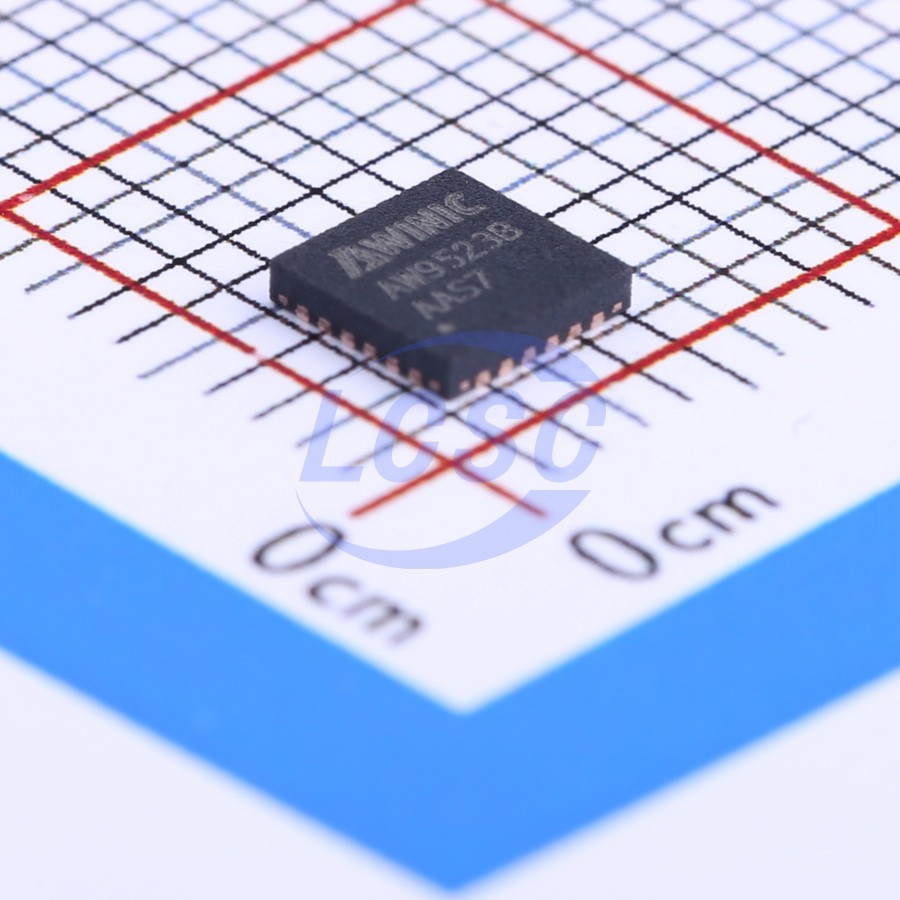

AW9523BTQR
16 I2C TQFN-24-EP(4x4) I/O Expanders RoHS
AW9523B Product Manual
- Manufacturer
- AWINIC(Shanghai Awinic Tech)
- Manufacturer part #
- AW9523BTQR
- Store part #
- C148077
- Package / case
- TQFN-24-EP(4x4)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
76,390 in stock
#C148077
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.44 | ₹192.20 |
| 50+ | ₹29.54 | ₹1,477.00 |
| 150+ | ₹25.71 | ₹3,856.50 |
| 500+ | ₹21.90 | ₹10,950.00 |
| 2,500+ | ₹19.78 | ₹49,450.00 |
| 6,000+ | ₹18.50 | ₹1,11,000.00 |
5 × ₹38.44
₹192.20
excl. GST
₹226.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
AW9523BTQR
₹192.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 16
- Features
- Reset function;Input anti-jitter;Built-in LED driver;IO level configurable;Cascade and address expansion
- Voltage - Supply
- 2.4V~5.5V
- Quiescent Supply Current
- 100nA
- Number of Supporting Devices
- 4
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.472 g
Overview
The AW9523B is an I²C interface, 16-channel breathing light and 16-channel GPIO expander controller. It features 16 bidirectional GPIO ports, each of which can be configured as LED drive mode via command. In GPIO mode, each GPIO can be individually configured as input or output. In LED drive mode, the outputs are common-anode constant-current controlled, with 256 adjustable levels per channel. Additionally, four different levels of maximum drive current IMAX can be selected through the global control bits ISEL[1:0].
Applications
- Mobile Phone
- MP3/PMP
- GPS
- Digital Photo Frame
Key features
- 16-channel common-anode constant-current LED driver
- 256-step linear dimming, four current range options
- 16-channel GPIO expansion port, each independently configurable as input or output
- Input port state change triggers interrupt output (INTN)
- 400kHz fast I²C interface, supports 1.8V communication
- Hardware reset support, reset pin with 10μs debounce
- ESD protection: ±4000V HBM (MIL-STD-883H Method 3015.8)
- Latch-up: ±450mA (JEDEC STANDARD NO.78C SEPTEMBER 2010)
- RoHS compliant, lead-free package
- Low standby current (<0.1μA)
- Operating voltage: 2.4V ~ 5.5V
- Operating temperature: -40°C ~ 85°C
- Package: TQFN4X4-24L
