TIDatasheet (PDF)

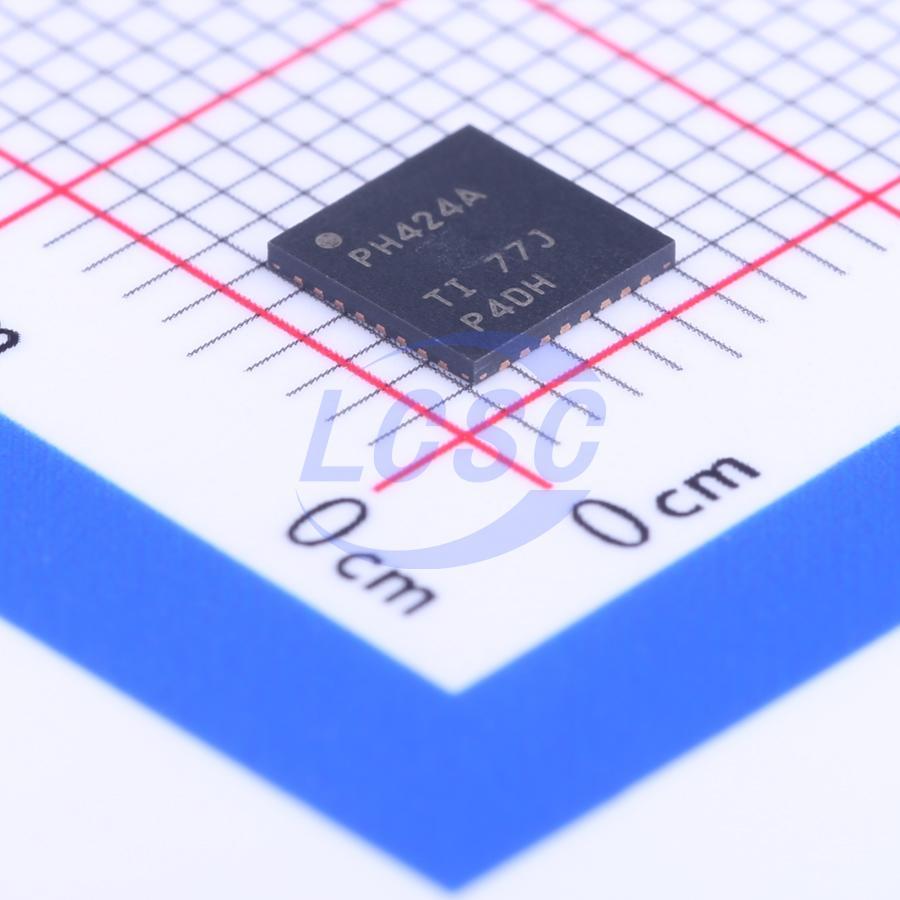

TCA6424ARGJR
24 VQFN-32-EP(5x5) I/O Expanders RoHS
VQFN-32-EP(5x5)ROHS3 CompliantActive
Low-Voltage 24-Bit I²C and SMBus I/O Expander With Interrupt Output, Reset, and Configuration Registers
- Manufacturer
- TI
- Manufacturer part #
- TCA6424ARGJR
- Store part #
- C80692
- Package / case
- VQFN-32-EP(5x5)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,903 in stock
#C80692
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹213.15 | ₹213.15 |
| 10+ | ₹181.18 | ₹1,811.80 |
| 30+ | ₹163.56 | ₹4,906.80 |
| 100+ | ₹143.77 | ₹14,377.00 |
| 500+ | ₹134.85 | ₹67,425.00 |
| 1,000+ | ₹130.94 | ₹1,30,940.00 |
1 × ₹213.15
₹213.15
excl. GST
₹251.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TCA6424ARGJR
₹213.15 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 24
- Features
- Reset function;Built-in LED driver;IO level configurable;Cascade and address expansion
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 1uA
- Number of Supporting Devices
- 2
- Current - Output High(IOH)
- 10mA
- Interface
- I2C;SMBus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
This 24-bit I/O expander for two-wire bidirectional bus (I²C) is designed to provide general-purpose remote I/O expansion for most microcontroller families via the I²C interface [Serial Clock (SCL) and Serial Data (SDA)]. The key advantage of this device is its wide VCC range. On both the P-port side and the SDA/SCL side, it operates over a voltage range of 1.65V to 5.5V. This enables the TCA6424A to interface with next-generation microprocessors and microcontrollers on the SDA/SCL side, where supply voltage levels are being reduced to conserve power. Unlike the continuously decreasing supply voltages of microprocessors and microcontrollers, some PCB components (such as LEDs) remain on 5V supplies.
Key features
- Operating supply voltage range: 1.65V to 5.5V
- Supports bidirectional voltage level translation and GPIO expansion between the following ports:
- 1.8V SCL/SDA and 1.8V, 2.5V, 3.3V, or 5V P-port
- 2.5V SCL/SDA and 1.8V, 2.5V, 3.3V, or 5V P-port
- 3.3V SCL/SDA and 1.8V, 2.5V, 3.3V, or 5V P-port
- 5V SCL/SDA and 1.8V, 2.5V, 3.3V, or 5V P-port
- I²C to parallel port expander
- Low standby current: 1μA
- Schmitt-trigger inputs on SCL and SDA for slow input transitions and improved switching noise immunity
- At 1.8V: Vhys = 0.18V (typical)
- At 2.5V: Vhys = 0.25V (typical)
- At 3.3V: Vhys = 0.33V (typical)
- At 5V: Vhys = 0.5V (typical)
- 5V-tolerant I/O ports
- Active-low reset input (RESET)
- Open-drain active-low interrupt output (INT)
- 400kHz fast-mode I²C bus
- Input/output configuration register
- Polarity inversion register
- Internal power-on reset
- Powers up with all channels configured as inputs
- No glitch on power-up
- Noise filter on SCL/SDA inputs
- Latched outputs with maximum high-current drive capability for direct LED driving
- Latch-up performance exceeds 100mA per JESD78 Class II
- ESD protection exceeds JESD22 requirements
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
