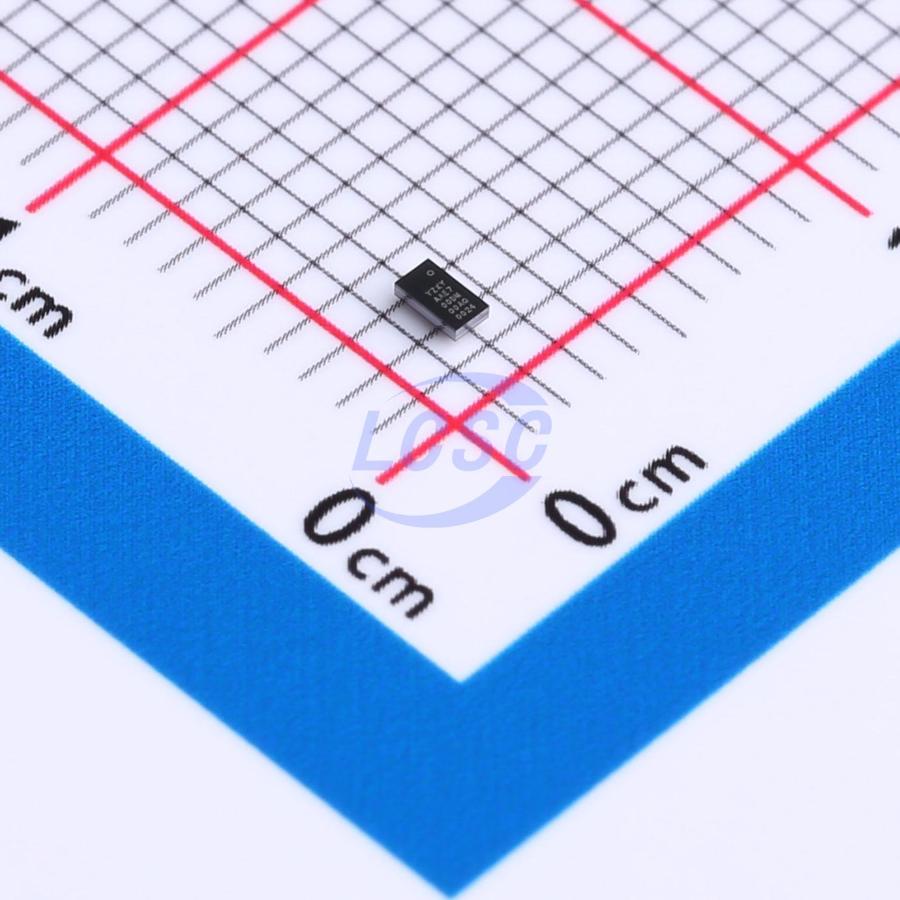

AW96103CSR

AW96103 is a 3- channel low power consumption capacitive touch and proximity controller. Each channel can be independently configured as sensor input, shield output. Advanced self- capacitance technology is adopted, which supports parasitic capacitance compensation for each channel up to 220pF. The device has a high resolution ADC, the minimal capacitance that can be detected is as low as 1aF. A high performance 32bit MCU is integrated. By executing the firmware- program in the ROM, it implements all AFE sampling controlling and complicated data processing algorithms including signal filtering, RF noise suppression, baseline calculation, proximity status decision, etc. With the auxiliary of DSP algorithm, the device is able to track slow environmental variations (such as temperature, humidity, etc.) and maintain high performance operation.

Applications

• Mobile phones
• Wearable devices, TWS
• Tablets, Notebooks

Key features

• 3-channel capacitive sensing
• Self-capacitive sensing technology
• Capacitance resolution down to 1aF
• Maximum offset capacitance up to 220pF
• Auto-Offset-Tuning (AOT)
• Each Channel configurable independently
• 400kHz I²C interface
• Default address: 0x12
• Address configurable via pin CS2
• External interrupt pin INTN, open-drain output
• Built-in brown-out reset (BOR)
• Low power consumption
• Active mode: 32pA
• Doze mode: 8.7μA
• Sleep mode: 7.5μA
• 1.7V~3.6V power supply
• Operation temperature range: -40°C ~ 85°C
• WLCSP 1.75mm×0.96mm-8B package
