DIODESDatasheet (PDF)

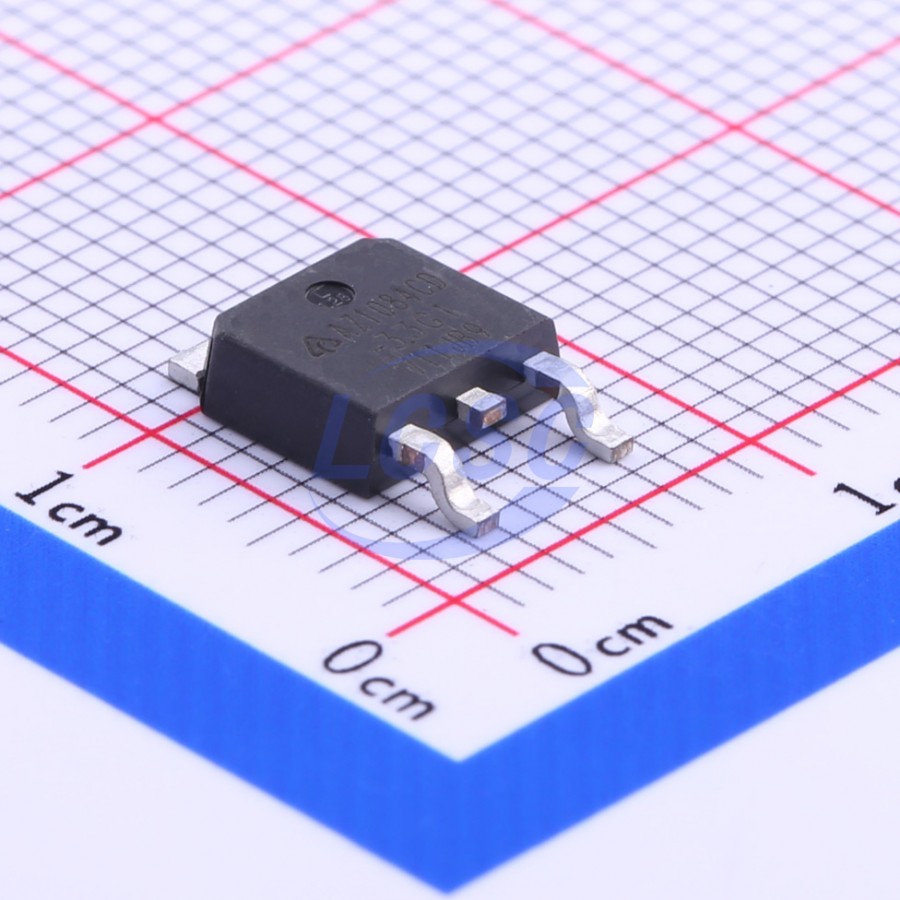

AZ1084CD-3.3TRG1
3.3V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-3ROHS3 CompliantActive
5A Low Dropout Linear Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- AZ1084CD-3.3TRG1
- Store part #
- C151391
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,200 in stock
#C151391
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.34 | ₹196.70 |
| 50+ | ₹31.51 | ₹1,575.50 |
| 150+ | ₹28.16 | ₹4,224.00 |
| 500+ | ₹23.98 | ₹11,990.00 |
| 2,500+ | ₹19.74 | ₹49,350.00 |
| 5,000+ | ₹18.62 | ₹93,100.00 |
5 × ₹39.34
₹196.70
excl. GST
₹232.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
AZ1084CD-3.3TRG1
₹196.70 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 5A
- Operating Voltage
- 12V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.503 g
Overview
The AZ1084C is a series of low- dropout positive- voltage regulators with a maximum dropout of 1.5V at 5A of load current. The series features on- chip thermal limiting, which provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. It also includes a trimmed bandgap reference and a current- limiting circuit. The AZ1084C is available in 1.5V, 1.8V, 2.5V, 3.3V and 5.0V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1084C series is available in the standard packages of TO252- 2 (3), TO252- 2 (4), TO252- 2 (5) and TO252 (Type CJ).
Applications
- High-efficiency linear regulators
- Battery chargers
- Post-regulation for switching supplies
- Microprocessor supplies
- Desktop PCs, RISC and embedded processors' supplies
Key features
- Low Dropout Voltage: 1.35V typical at 5A
- Current Limiting and Thermal Protection
- Output Current: 5A
- Current Limit: 6.5A
- Operating Junction Temperature Range: 0°C to +125°C
- Compatible with Low ESR Ceramic Capacitor
- Line Regulation (Adj Version): 0.015% (typ)
- Load Regulation (Adj Version): 0.1% (typ)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1084RS-3.3#C7434827HTC · TO-252-3L | HTC | TO-252-3L | 749 | ₹55.34 · 749 in stock | View |
