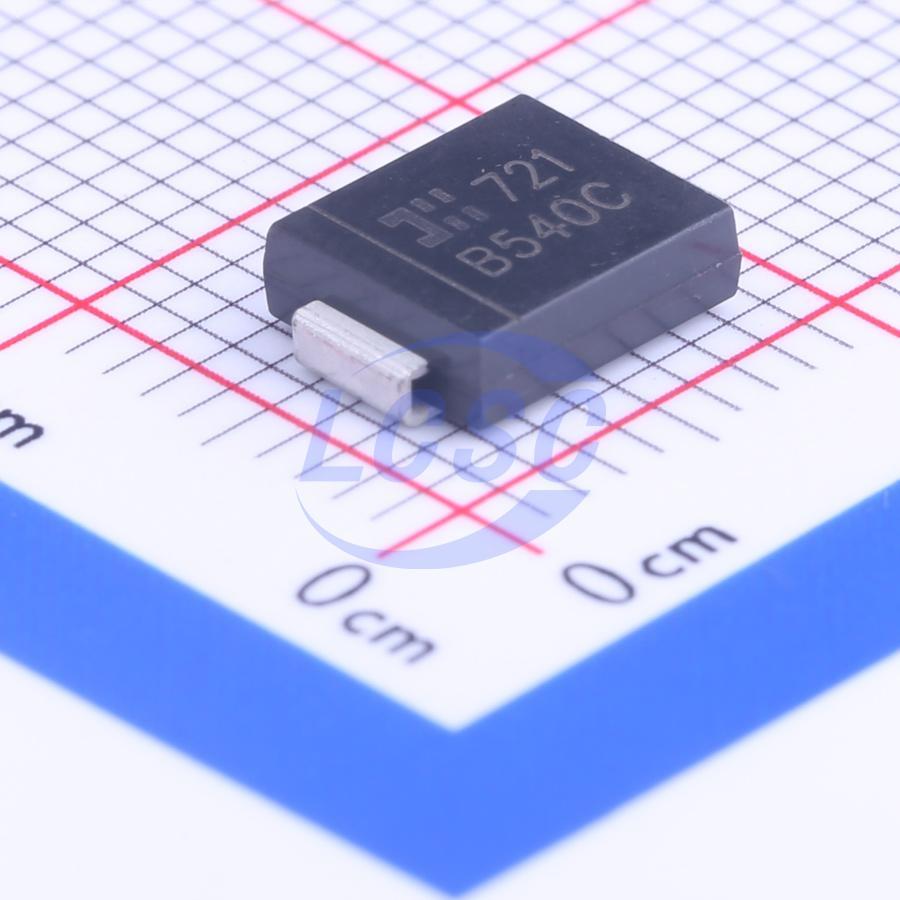

B540C-13-F
1 Independent 40V 550mV@5A 5A SMC(DO-214AB) Single Diodes RoHS
Voltage: 40V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- B540C-13-F
- Store part #
- C72264
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
52,470 in stock
#C72264
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.85 | ₹154.25 |
| 50+ | ₹24.71 | ₹1,235.50 |
| 150+ | ₹21.72 | ₹3,258.00 |
| 500+ | ₹19.05 | ₹9,525.00 |
| 3,000+ | ₹18.31 | ₹54,930.00 |
| 6,000+ | ₹17.87 | ₹1,07,220.00 |
5 × ₹30.85
₹154.25
excl. GST
₹182.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
B540C-13-F
₹154.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@5A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.337 g
Overview
This Schottky barrier rectifier is designed to meet the general requirements of commercial applications. It is ideally suited for use as: Polarity protection diodes Re- circulating diodes Switching diodes
Key features
- Guard Ring Die Construction for Transient Protection
- Ideally Suited for Automated Assembly
- Low Power Loss, High Efficiency For Use in Low- Voltage, High- Frequency Inverters, Free Wheeling, and Polarity Protection Applications
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC- Q) for High Reliability
- An automotive- compliant part is available under separate datasheet (B520CQ - B560CQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B540CQ-13-F#C105556DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 302 | ₹67.43 · 302 in stock | View |
 | SS54C#C49247451PDW · SMC | PDW | SMC | 180 | ₹6.97 · 180 in stock | View |
 | B550C-13-F#C134461DIODES · SMC(DO-214AB) | DIODES | SMC(DO-214AB) | 43,195 | ₹42.53 · 43,195 in stock | View |
 | B560CQ-13-F#C460781DIODES · SMC | DIODES | SMC | 4,796 | ₹60.94 · 4,796 in stock | View |
 | SK56L_R1_00001#C294834PANJIT · DO-214AB(SMC) | PANJIT | DO-214AB(SMC) | 1,000 | ₹32.41 · 1,000 in stock | View |
