InfineonDatasheet (PDF)

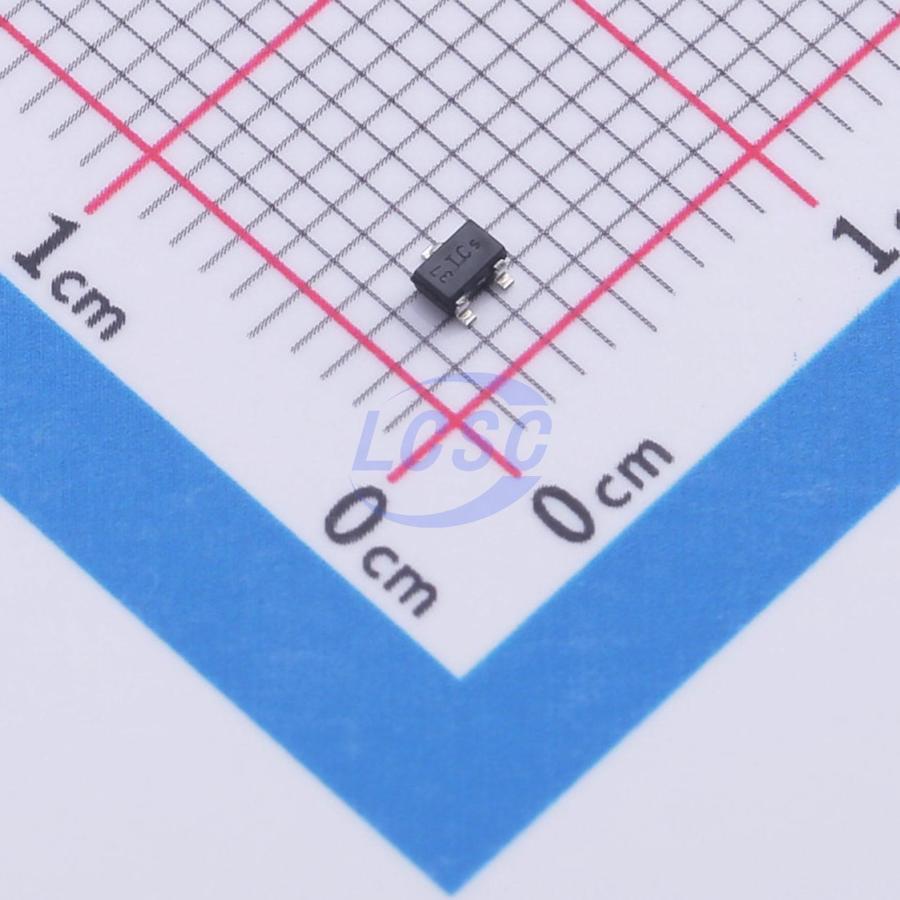

BAT5405WH6327
30V 1 Pair Common Cathode 800mV@100mA 200mA SOT-323-3 Single Diodes RoHS
SOT-323-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- BAT5405WH6327
- Store part #
- C3759884
- Package / case
- SOT-323-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3759884
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹11.47 | ₹573.50 |
| 150+ | ₹11.30 | ₹1,695.00 |
| 500+ | ₹11.13 | ₹5,565.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT5405WH6327
₹58.70 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - Forward(Vf@If)
- 800mV@100mA
- Reverse Leakage Current (Ir)
- 2uA@25V
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- For low-loss, fast-recovery, meter protection, bias isolation and clamping application
- Guard ring protected
- Low forward voltage
- Pb-free (RoHS compliant) package
- Qualified according AEC Q101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1PS70SB15,115#C551385Nexperia · SOT-323-3 | Nexperia | SOT-323-3 | 965 | ₹11.72 · 965 in stock | View |
 | BAT54CWT1G#C82467onsemi · SOT-323(SC-70) | onsemi | SOT-323(SC-70) | 745 | ₹11.22 · 745 in stock | View |
 | SBAT54CWT1G#C894271onsemi · SOT-323-3 | onsemi | SOT-323-3 | 5,835 | ₹14.01 · 5,835 in stock | View |
 | BAT54CW(UMW)#C18207543UMW · SOT-323 | UMW | SOT-323 | 4,750 | ₹2.66 · 4,750 in stock | View |
 | BAT54CW#C19183927DIOTEC · SOT-323 | DIOTEC | SOT-323 | 1,310 | ₹8.33 · 1,310 in stock | View |
