LGE

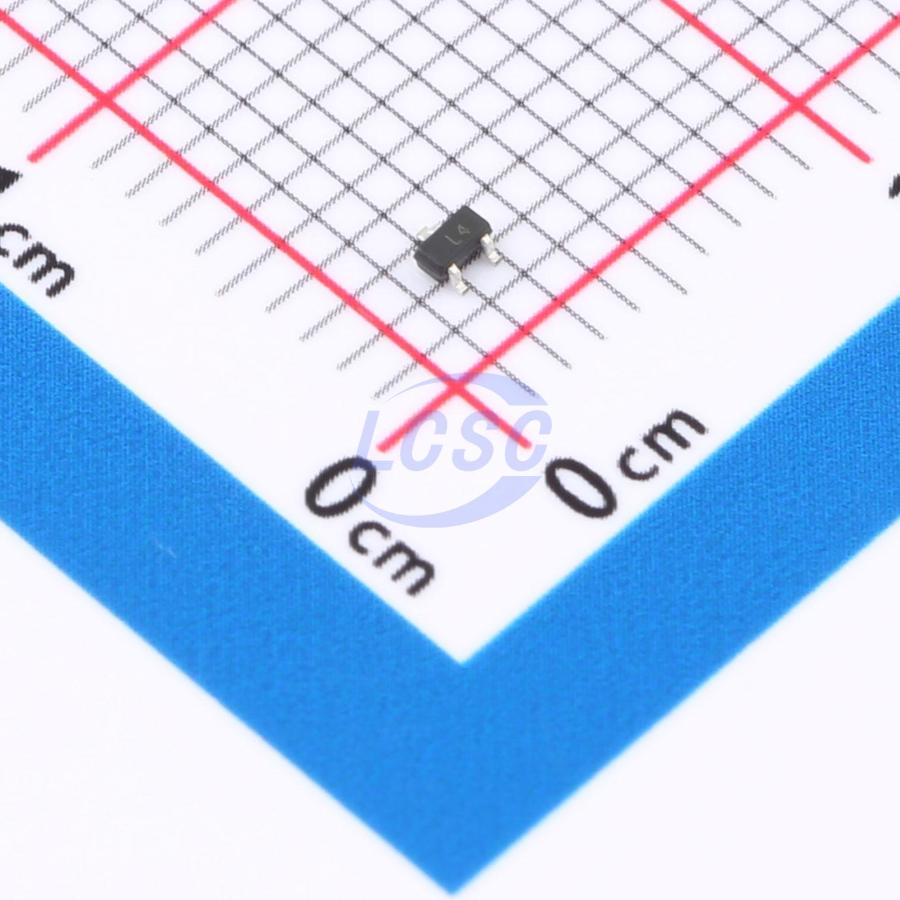

BAT54ST

Diode Array 1 Pair Series Connection 30V 200mA Surface Mount SOT-523

SOT-523RoHSActive

DIODE ARR SCHOTTKY 30V SOT-523

Manufacturer: LGE
Manufacturer part #: BAT54ST
Store part #: C2903786
Package / case: SOT-523
Category: Single Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C2903786

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
20+	₹4.45	₹89.00
200+	₹3.48	₹696.00
600+	₹2.95	₹1,770.00
3,000+	₹2.46	₹7,380.00
9,000+	₹2.18	₹19,620.00
21,000+	₹2.04	₹42,840.00

Quantity (min 20, multiples of 20)

20 × ₹4.45

₹89.00

excl. GST

₹105.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

BAT54ST

₹89.00 for 20 + GST

Specifications

Diode Configuration: 1 Pair Series Connection
Voltage - DC Reverse (Vr) (Max): 30V
Voltage - Forward(Vf@If): 1V@100mA
Reverse Leakage Current (Ir): 2uA@25V
Non-Repetitive Peak Forward Surge Current: 600mA
Current - Rectified: 200mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.026 g
