JSMSEMIDatasheet (PDF)

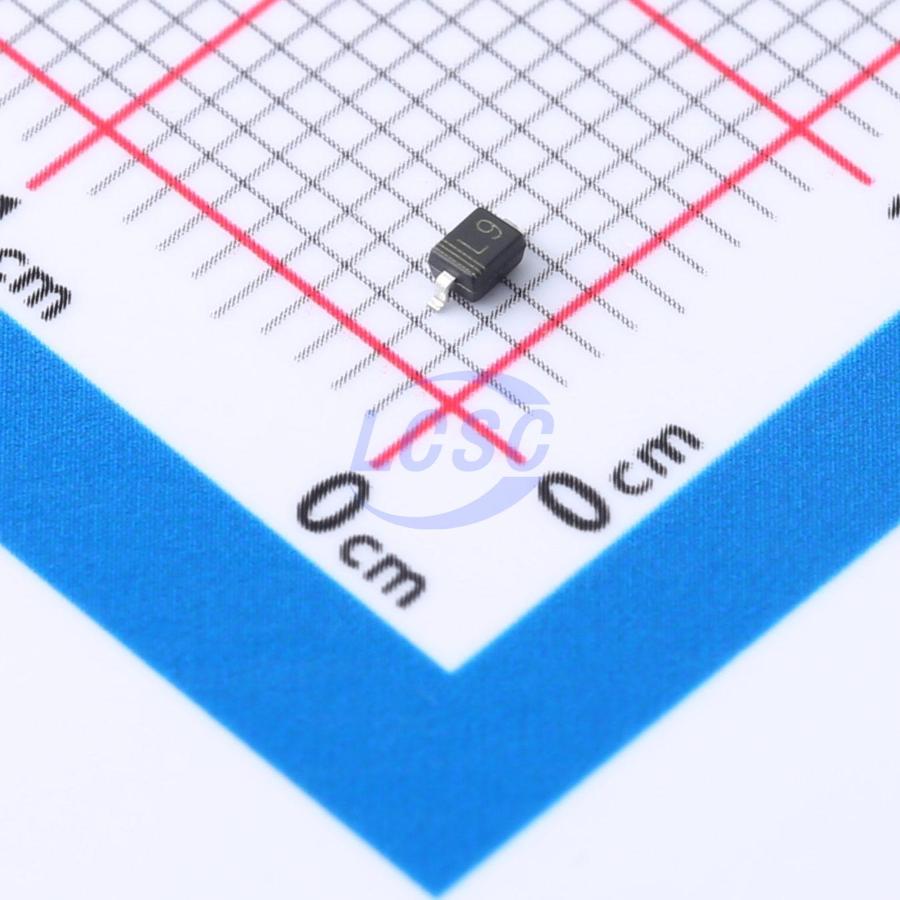

BAT54WS
Diode Independent 30V 200mA Surface Mount SOD-323
SOD-323ROHS CompliantActive
DIODE SCHOTTKY 30V SOD-323
- Manufacturer
- JSMSEMI
- Manufacturer part #
- BAT54WS
- Store part #
- C916997
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C916997
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.04 | ₹60.80 |
| 200+ | ₹2.41 | ₹482.00 |
| 600+ | ₹2.05 | ₹1,230.00 |
| 3,000+ | ₹1.84 | ₹5,520.00 |
| 9,000+ | ₹1.65 | ₹14,850.00 |
| 21,000+ | ₹1.55 | ₹32,550.00 |
20 × ₹3.04
₹60.80
excl. GST
₹71.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAT54WS
₹60.80 for 20 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 1V@100mA
- Reverse Leakage Current (Ir)
- 2uA
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
