VISHAYDatasheet (PDF)

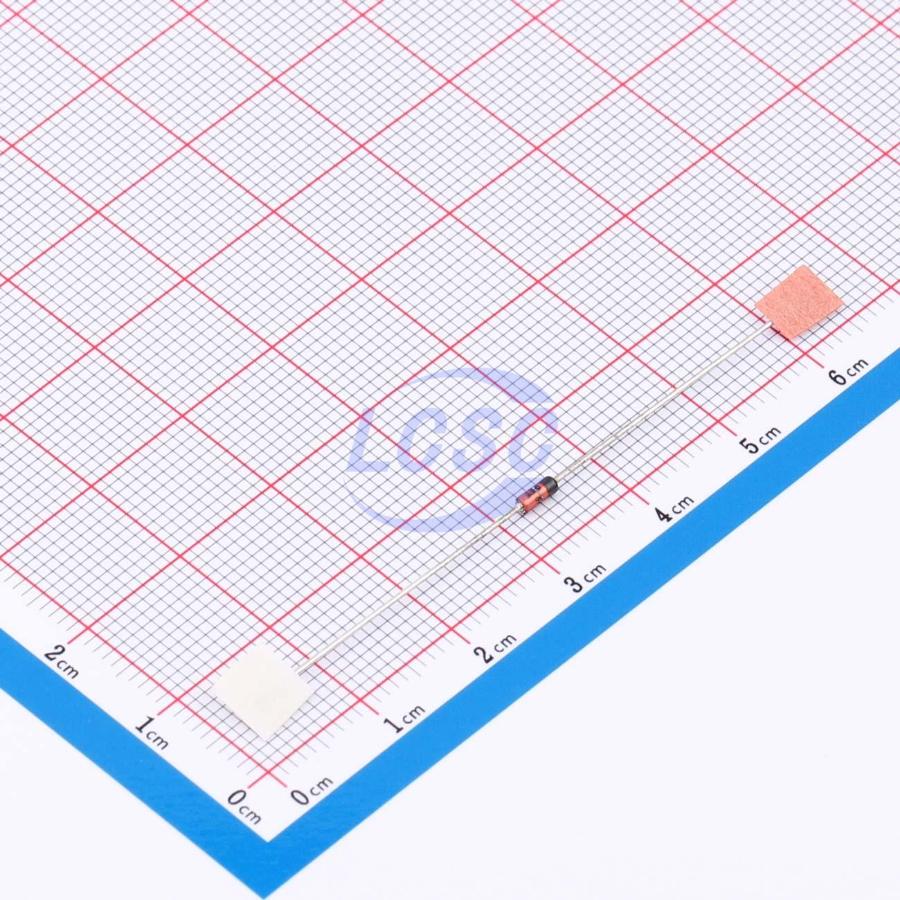

BAT83S-TR
1 Independent 60V 1V@15mA 30mA DO-35(DO-204AH) Single Diodes RoHS
DO-35(DO-204AH)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BAT83S-TR
- Store part #
- C7086112
- Package / case
- DO-35(DO-204AH)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
245 in stock
#C7086112
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.69 | ₹61.69 |
| 10+ | ₹49.10 | ₹491.00 |
| 30+ | ₹43.66 | ₹1,309.80 |
| 100+ | ₹36.92 | ₹3,692.00 |
| 500+ | ₹33.88 | ₹16,940.00 |
| 1,000+ | ₹32.15 | ₹32,150.00 |
1 × ₹61.69
₹61.69
excl. GST
₹72.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BAT83S-TR
₹61.69 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 1V@15mA
- Reverse Leakage Current (Ir)
- 200nA@60V
- Non-Repetitive Peak Forward Surge Current
- 500mA
- Current - Rectified
- 30mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
Applications
- General purpose and switching Schottky barrier diodes
- High-frequency detectors
- Protection circuits
- Low-current diodes for low supply voltages
- Compact battery chargers
Key features
- Integrated ESD protection ring
- Low capacitance
- Low leakage current
- Low forward voltage drop
- Ultra-short switching time
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT41#C2969790ST · DO-35 | ST | DO-35 | 2,440 | ₹8.59 · 2,440 in stock | View |
 | BAT46#C2969783ST · DO-35 | ST | DO-35 | 5,190 | ₹9.54 · 5,190 in stock | View |
| BAT83S-TAP#C6469841VISHAY · DO-35(DO-204AH) | VISHAY | DO-35(DO-204AH) | On request | ₹12.42 · 0 in stock | View | |
| SD101A-TR#C6999740VISHAY · DO-35(DO-204AH) | VISHAY | DO-35(DO-204AH) | On request | ₹14.46 · 0 in stock | View | |
| SD101A-TAP#C7075092VISHAY · DO-35(DO-204AH) | VISHAY | DO-35(DO-204AH) | On request | ₹12.65 · 0 in stock | View | |
