DIODESDatasheet (PDF)

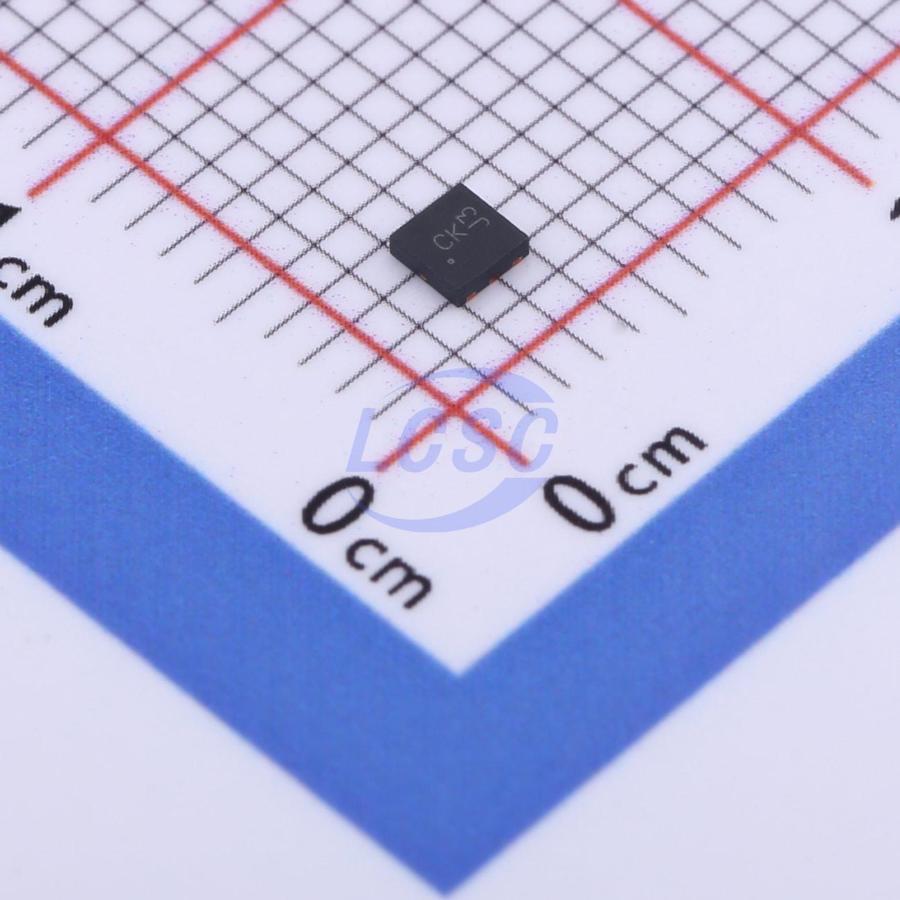

BAV99BRLP-7
Diode Array 2 Pair Common Cathode 75V 300mA Surface Mount UDFN2020-6
UDFN2020-6ROHS CompliantDiscontinued
DIODE ARR GP 75V 300mA UDFN2020-6
- Manufacturer
- DIODES
- Manufacturer part #
- BAV99BRLP-7
- Store part #
- C3025204
- Package / case
- UDFN2020-6
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3025204
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.38 | ₹171.90 |
| 50+ | ₹27.37 | ₹1,368.50 |
| 150+ | ₹24.36 | ₹3,654.00 |
| 500+ | ₹20.60 | ₹10,300.00 |
| 3,000+ | ₹18.93 | ₹56,790.00 |
| 6,000+ | ₹17.93 | ₹1,07,580.00 |
5 × ₹34.38
₹171.90
excl. GST
₹202.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BAV99BRLP-7
₹171.90 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 2 Pair Common Cathode
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 25nA
- Non-Repetitive Peak Forward Surge Current
- 3A
- Current - Rectified
- 300mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Discontinued
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
