ROHMDatasheet (PDF)

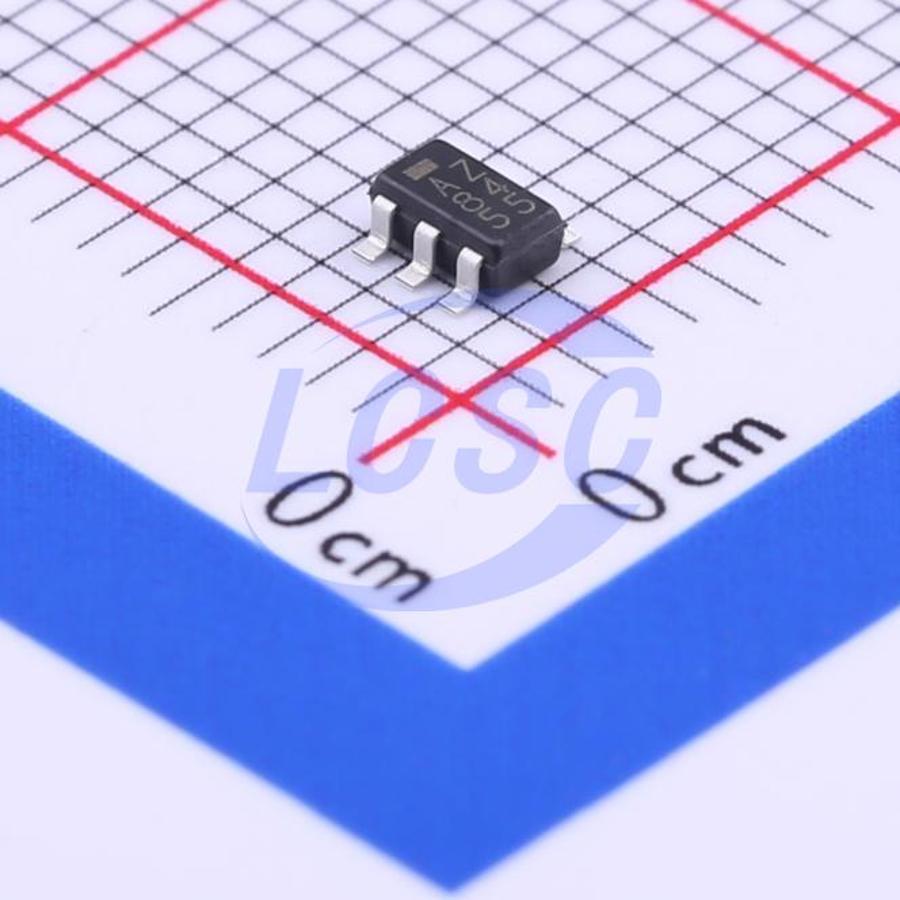

BD2243G-GTR
1 Active Low 1.7A High Side Switch SSOP-6 Power Distribution Switches, Load Drivers RoHS
SSOP-6ROHS3 CompliantActive
1 Channel Compact High Side Switch ICs
- Manufacturer
- ROHM
- Manufacturer part #
- BD2243G-GTR
- Store part #
- C84988
- Package / case
- SSOP-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,890 in stock
#C84988
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.22 | ₹161.10 |
| 50+ | ₹25.86 | ₹1,293.00 |
| 150+ | ₹23.15 | ₹3,472.50 |
| 500+ | ₹19.75 | ₹9,875.00 |
| 3,000+ | ₹15.90 | ₹47,700.00 |
| 6,000+ | ₹14.99 | ₹89,940.00 |
5 × ₹32.22
₹161.10
excl. GST
₹190.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD2243G-GTR
₹161.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start
- number of channels
- 1
- Control Input Logic
- Active Low
- Maximum Continuous Current
- 1.7A
- RDS(on)
- 89mΩ
- Operating Voltage
- 2.8V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
BD2222G, BD2242G and BD2243G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. These devices are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start. Moreover, the range of Current limit threshold can be adjusted from 0.2A to 1.7A by changing the external resistance.
Applications
- USB hub in consumer appliances
- PC
- PC peripheral equipment
Key features
- Adjustable Current Limit Threshold: 200mA to 1.7A
- Low On-Resistance (Typ 89mΩ) N-channel MOSFET Built-in
- Soft-Start Circuit
- Output Discharge Function BD2242G, BD2243G
- Open-Drain Fault Flag Output
- Thermal Shutdown
- Under-Voltage Lockout
- Reverse Current Protection when Power Switch Off
- Control Input Logic Active-High Active-High: BD2222G, BD2242G Active-Low: BD2243G
