ROHM

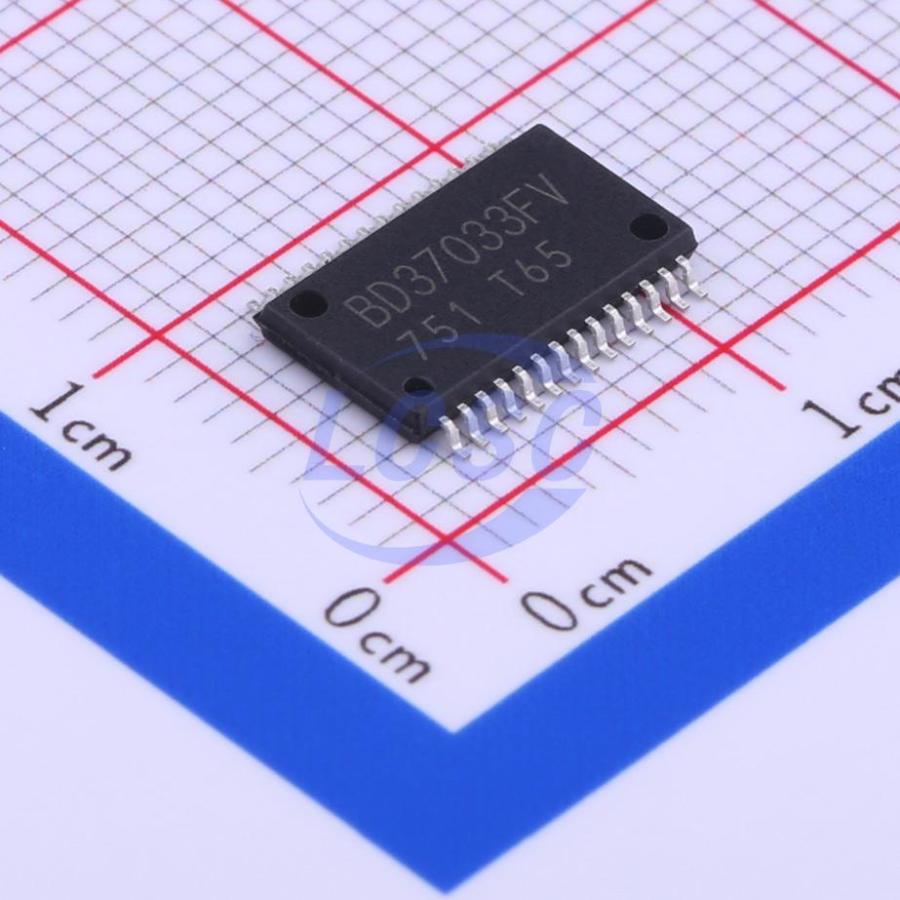

BD37033FV-ME2

SSOP-28-5.6mm Audio Special Purpose RoHS

SSOP-28-5.6mmROHS3 CompliantActive

Analog Audio Processors for Car Audio

Manufacturer: ROHM
Manufacturer part #: BD37033FV-ME2
Store part #: C323856
Package / case: SSOP-28-5.6mm
Category: Audio Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,417 in stock

#C323856

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹258.29	₹258.29
10+	₹216.72	₹2,167.20
30+	₹190.62	₹5,718.60
100+	₹155.58	₹15,558.00
500+	₹143.40	₹71,700.00
1,000+	₹138.17	₹1,38,170.00

Quantity (min 1)

1 × ₹258.29

₹258.29

excl. GST

₹304.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

BD37033FV-ME2

₹258.29 for 1 + GST

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.314 g

Overview

BD37033FV-M is sound processors for car audio. The functions are stereo input selector with single end 3 and ground isolation input 2, volume, 3-band parametric equalizer, loudness, 6ch fader volume, LPF for subwoofer, anti-aliasing-filter, Mixing volume. Moreover, “Advanced switch circuit”, that is ROHM original technology, can reduce various switching noise (ex. No-signal, low frequency likes 20Hz & large signal inputs). “Advanced switch” makes control of microcomputer easier, and can construct high quality car audio system.

Applications

It is the optimal for the car audio.
Besides, it is possible to use for the audio equipment of mini Compo, micro Compo, TV etc with all kinds.

Key features

Reduce switching noise of volume, mute, fader volume, bass, middle, treble, loudness by using advanced switch circuit [Possible to control all steps].
Built-in input selector (single 3 / diff 2).
Decrease the number of external components by built-in 3-band equalizer filter, LPF for subwoofer, loudness filter.
And, possible to control Q, Gv, fo of 3-band equalizer and fc of LPF, Gv, fo of loudness by I²C BUS control freely.
Built-in mixing volume and anti-aliasing-filter.
Built-in anti-GSM-noise-filter.
Package is SSOP-B28.
Putting input-terminals together and output-terminals together can make PCB layout easier and can makes area of PCB smaller.
It is possible to control by 3.3V / 5V for I²C BUS.
AEC-Q100 Qualified.
