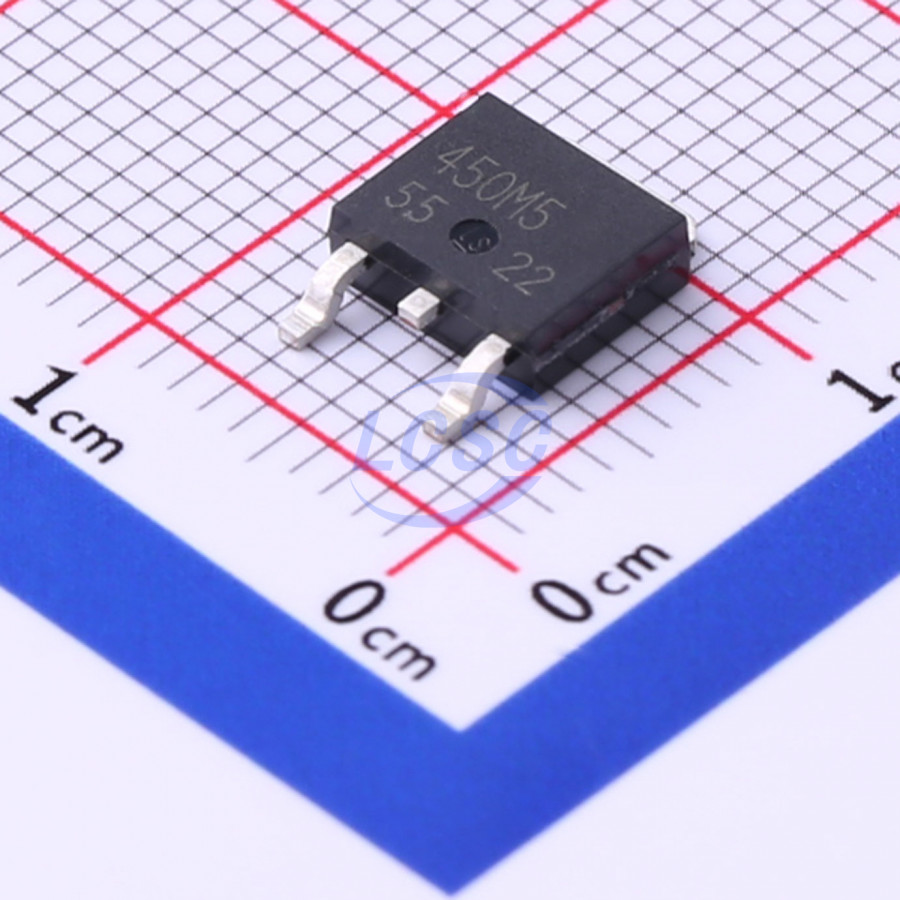

BD450M5FP-CE2

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA TO-252

TO-252ROHS3 CompliantActive

500-mA 3.3-V or 5.0-V Output LDO Regulators

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,123 in stock

#C308598

Stock & price checked 24 h ago

Quantity (min 1)

1 × ₹96.05

₹96.05

excl. GST

₹113.34 incl. 18% GST

BD450M5FP-CE2

₹96.05 for 1 + GST

Specifications

45 V absolute maximum voltage
Output voltage accuracy of ±2 % (3.3 V or 5 V: Typ.)
500 mA output current
38 μA (Typ.) current consumption
A logical “HIGH” at the CTL enables the device and “LOW” at the CTL disables the device (Only W: Includes Enable Input)
Ceramic capacitors can be used for compensation of the output capacitor phase
Overcurrent protection to protect the device from damage caused by short - circuiting
Integrated thermal shutdown to protect the device from overheating at overload conditions
Qualified for Automotive Applications
Wide Temperature Range (Tj): -40 °C to +150 °C
Wide Operating Input Range: 3.0 V to 42 V
Low Quiescent Current: 38 μA (Typ.)
High Output Voltage Accuracy: ±2 %
Output Voltage: 3.3 V or 5.0 V (Typ.)
Enable Input (Only W)
Overload Current Protection (OCP)
Thermal Shutdown Protection (TSD)
AEC - Q100 Qualified (Grade1)
