ROHMDatasheet (PDF)

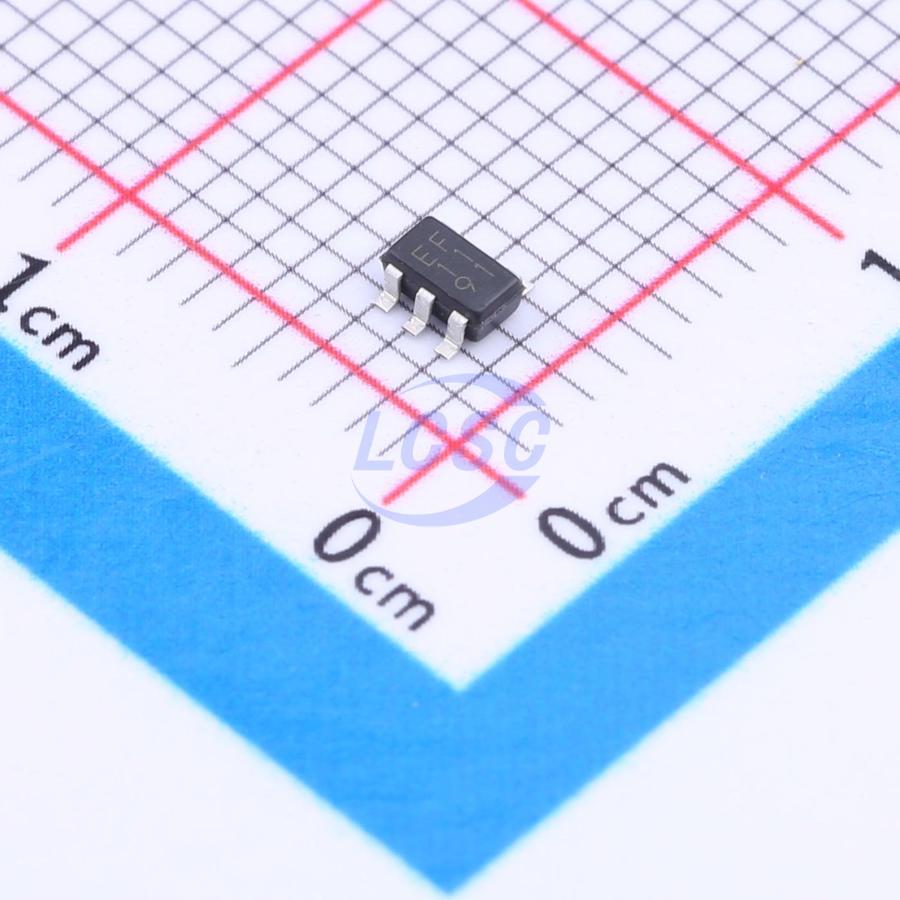

BD4845G-TR
100us Active Low 2.3V~6V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD4845G-TR
- Store part #
- C600736
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C600736
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.52 | ₹127.60 |
| 50+ | ₹20.37 | ₹1,018.50 |
| 150+ | ₹18.18 | ₹2,727.00 |
| 500+ | ₹15.43 | ₹7,715.00 |
| 3,000+ | ₹11.95 | ₹35,850.00 |
| 6,000+ | ₹11.22 | ₹67,320.00 |
5 × ₹25.52
₹127.60
excl. GST
₹150.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD4845G-TR
₹127.60 for 5 + GST
Specifications
- Reset Timeout
- 100us
- Operating Temperature
- -40℃~+105℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 2.3V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.5V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
BD48xxx and BD49xxx series are highly accurate, low-current Voltage Detector IC series. The family includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Package SSOP3 is similar to SOT-23-3 (JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BD48E45G-MTR#C2066379ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | 20 | ₹137.38 · 20 in stock | View |
 | BD4847G-TR#C2067241ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | 20 | ₹87.75 · 20 in stock | View |
 | TPS3828-50DBVR#C2865140TI · SOT-23-5 | TI | SOT-23-5 | 984 | ₹94.81 · 984 in stock | View |
 | BD48E43G-TR#C509826ROHM · SSOP-5-1.6mm | ROHM | SSOP-5-1.6mm | On request | ₹19.91 · 0 in stock | View |
| MAX6307UK45D2+T#C1354038MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | On request | ₹377.37 · 0 in stock | View | |
