ROHMDatasheet (PDF)

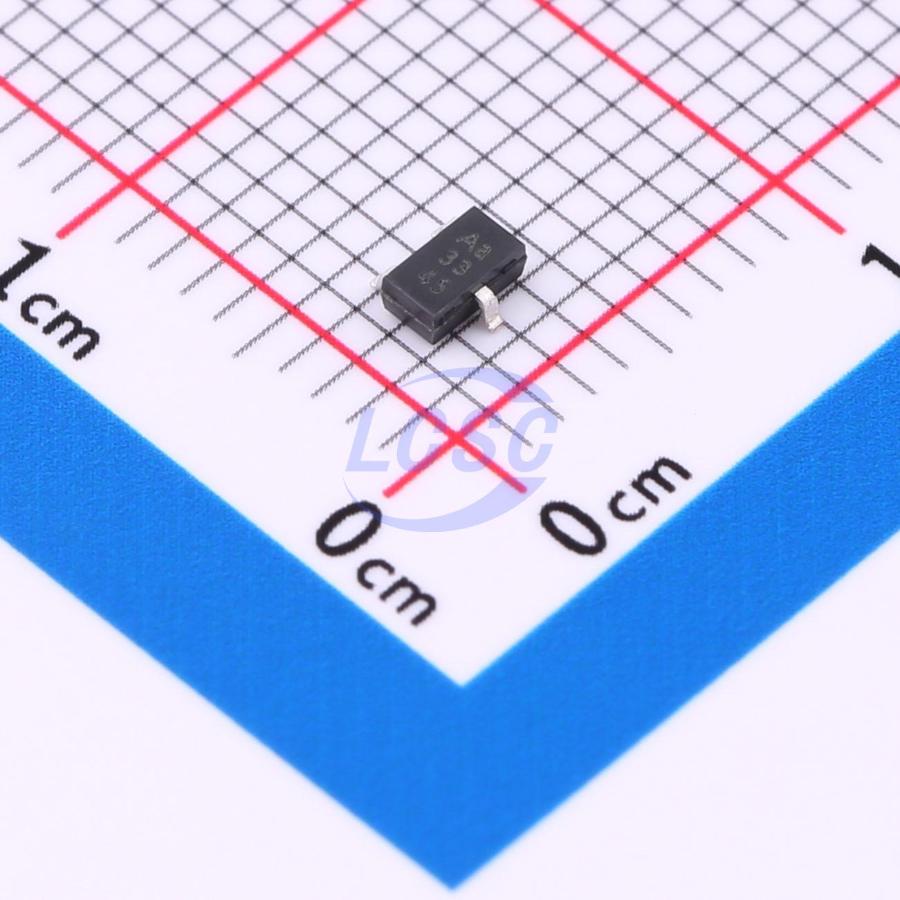

BD48K23G-TL
510ns Active Low 2.3V 1 SSOP-3-1.6mm Supervisors RoHS
SSOP-3-1.6mmROHS3 CompliantActive
Voltage Detector IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD48K23G-TL
- Store part #
- C2066799
- Package / case
- SSOP-3-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C2066799
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.72 | ₹143.60 |
| 50+ | ₹28.10 | ₹1,405.00 |
| 150+ | ₹27.69 | ₹4,153.50 |
| 500+ | ₹27.28 | ₹13,640.00 |
5 × ₹28.72
₹143.60
excl. GST
₹169.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD48K23G-TL
₹143.60 for 5 + GST
Specifications
- Reset Timeout
- 510ns
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 900nA
- Voltage - Supply
- 2.3V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
BD48xxx and BD49xxx series are highly accurate, low-current Voltage Detector IC series. The family includes BD48xxx devices with N-channel open drain output and BD49xxx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- High accuracy detection
- Ultra-low current consumption
- Two output types (Nch open drain and CMOS output)
- Wide Operating temperature range
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5 (JEDEC)
- Package SSOP3 is similar to SOT-23-3 (JEDEC)
