ROHMDatasheet (PDF)

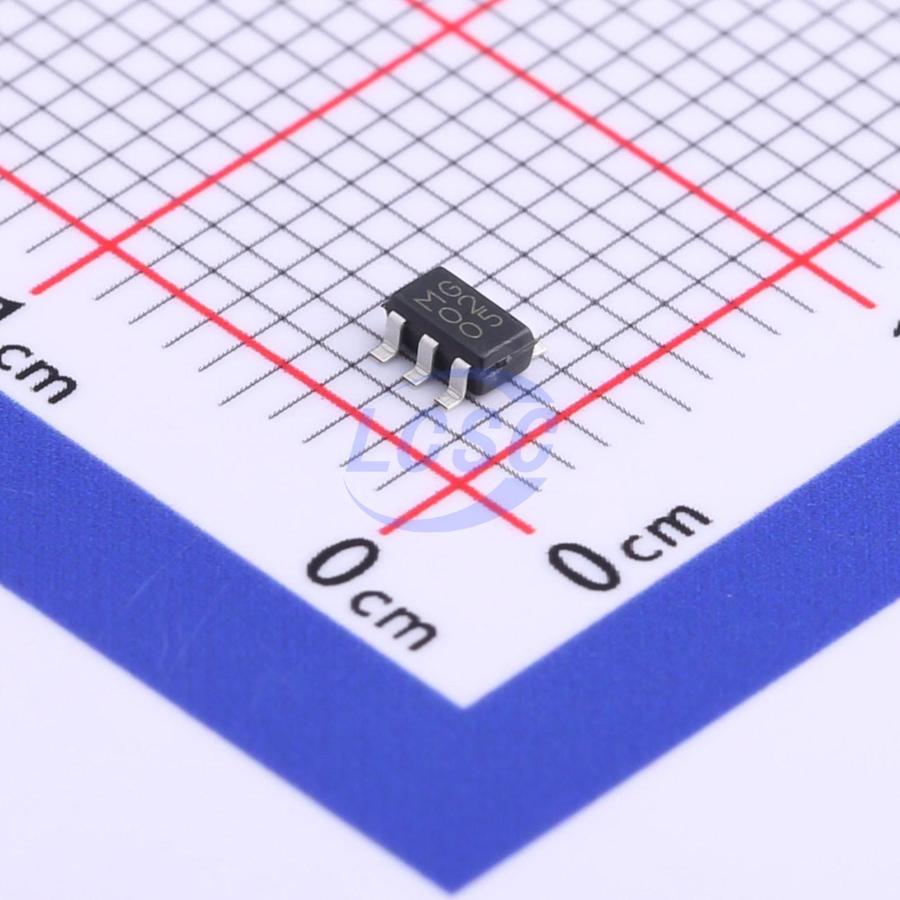

BD5226G-TR
Active Low 2.3V~6V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
Voltage Detector IC Series with Capacitor-Controlled Time Delay
- Manufacturer
- ROHM
- Manufacturer part #
- BD5226G-TR
- Store part #
- C694091
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,105 in stock
#C694091
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.67 | ₹103.35 |
| 50+ | ₹18.09 | ₹904.50 |
| 150+ | ₹16.99 | ₹2,548.50 |
| 500+ | ₹15.60 | ₹7,800.00 |
| 3,000+ | ₹13.39 | ₹40,170.00 |
| 6,000+ | ₹13.02 | ₹78,120.00 |
5 × ₹20.67
₹103.35
excl. GST
₹121.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD5226G-TR
₹103.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃@(TA)
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 950nA
- Voltage - Supply
- 2.3V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.6V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
BD52xx and BD53xx series are highly accurate, low current consumption Voltage Detector ICs with a capacitor-controlled time delay. The line up includes BD52xx devices with N channel open drain output and BD53xx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Delay Time Controlled by external Capacitor
- Two output types (N channel open drain and CMOS output)
- Ultra-low current consumption
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5(JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
