ROHMDatasheet (PDF)

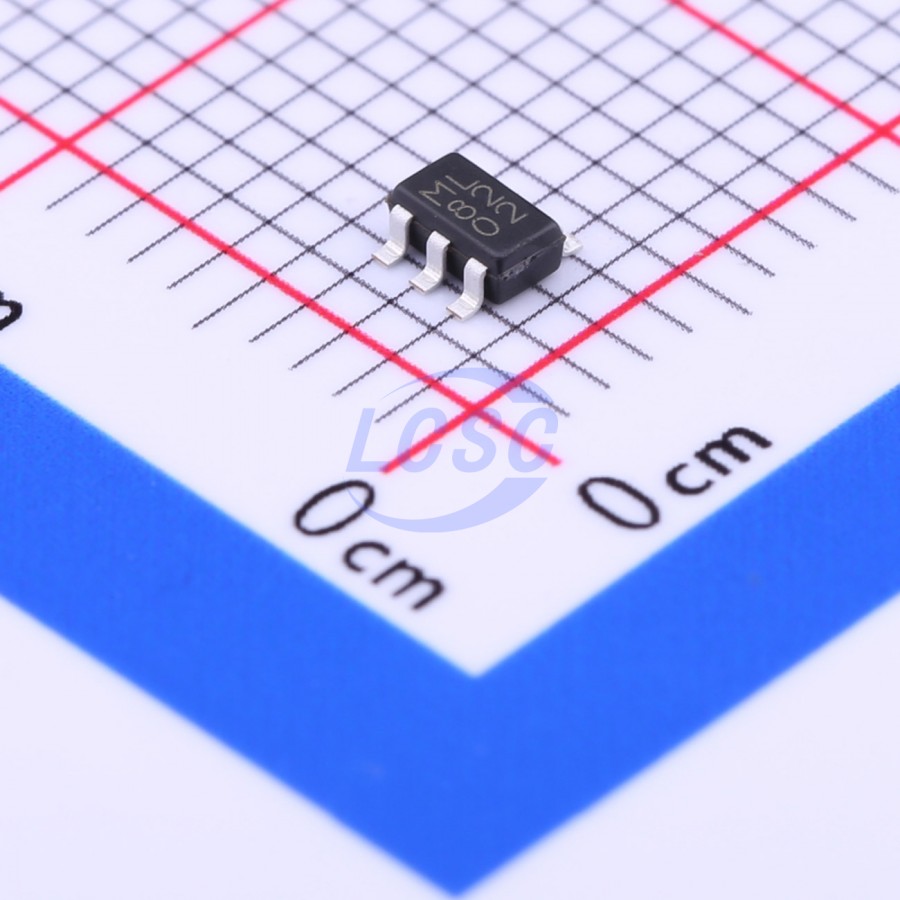

BD5230G-TR
Active Low 2.3V~6V 1 SSOP-5-1.6mm Supervisors RoHS
SSOP-5-1.6mmROHS3 CompliantActive
CMOS Voltage Detector IC with Capacitor-Controlled Time Delay
- Manufacturer
- ROHM
- Manufacturer part #
- BD5230G-TR
- Store part #
- C253178
- Package / case
- SSOP-5-1.6mm
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,435 in stock
#C253178
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.65 | ₹153.25 |
| 50+ | ₹24.09 | ₹1,204.50 |
| 150+ | ₹21.27 | ₹3,190.50 |
| 500+ | ₹17.75 | ₹8,875.00 |
| 3,000+ | ₹16.19 | ₹48,570.00 |
| 6,000+ | ₹15.25 | ₹91,500.00 |
5 × ₹30.65
₹153.25
excl. GST
₹180.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BD5230G-TR
₹153.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 950nA
- Voltage - Supply
- 2.3V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
BD52xx and BD53xx series are highly accurate, low current consumption Voltage Detector ICs with a capacitor-controlled time delay. The line up includes BD52xx devices with N channel open drain output and BD53xx devices with CMOS output. The devices are available for specific detection voltages ranging from 2.3V to 6.0V in increments of 0.1V.
Applications
- Circuits using microcontrollers or logic circuits that require a reset.
Key features
- Delay Time Controlled by external Capacitor
- Two output types (N channel open drain and CMOS output)
- Ultra-low current consumption
- Very small and low height package
- Package SSOP5 is similar to SOT-23-5(JEDEC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS3836K33QDBVRQ1#C201693TI · SOT-23-5 | TI | SOT-23-5 | 16 | ₹634.07 · 16 in stock | View |
 | TPS3838K33QDBVRQ1#C702198TI · SOT-23-5 | TI | SOT-23-5 | 51 | ₹615.31 · 51 in stock | View |
 | MAX6320PUK29CY+T#C2650208MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | 14 | ₹606.05 · 14 in stock | View |
 | MAX6822SUK+T#C2067140MAXIM · SOT-23-5 | MAXIM | SOT-23-5 | 8 | ₹622.05 · 8 in stock | View |
 | ADM6320CY31ARJZ-R7#C7457148ADI · SOT-23-5 | ADI | SOT-23-5 | 10 | ₹375.96 · 10 in stock | View |
