ROHMDatasheet (PDF)

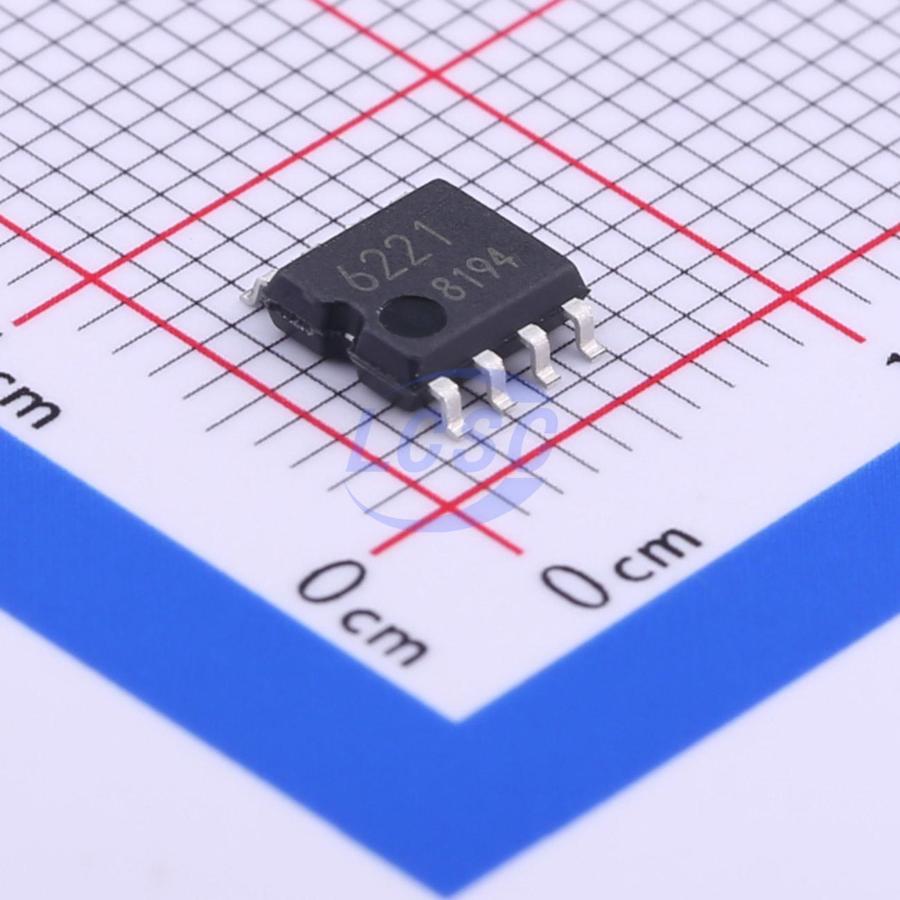

BD6221F-E2
SOP-8 Full, Half-Bridge (H Bridge) Drivers RoHS
SOP-8ROHS3 CompliantActive
DC Brush Motor Drivers
- Manufacturer
- ROHM
- Manufacturer part #
- BD6221F-E2
- Store part #
- C79612
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,404 in stock
#C79612
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹217.95 | ₹217.95 |
| 10+ | ₹186.66 | ₹1,866.60 |
| 30+ | ₹169.50 | ₹5,085.00 |
| 100+ | ₹149.94 | ₹14,994.00 |
| 500+ | ₹127.34 | ₹63,670.00 |
| 1,000+ | ₹123.65 | ₹1,23,650.00 |
1 × ₹217.95
₹217.95
excl. GST
₹257.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD6221F-E2
₹217.95 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Interleaved conduction protection;Current sensing/regulation function
- Technology
- Yes
- Quiescent Current(Iq)
- 0uA
- Number of H-bridges
- 1
- RDS(on)
- 1.5Ω
- Voltage - Supply
- 6V~15V
- Output Current
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
These H-bridge drivers are full bridge drivers for brush motor applications. Each IC can operate at a power supply voltage range of 6V to 15V, with output currents of up to 2A. MOS transistors in the output stage allow PWM speed control. The integrated VREF voltage control function allows direct replacement of discontinued motor driver ICs. These highly efficient H-bridge driver ICs facilitate low-power consumption design.
Applications
- VTR
- CD/DVD players
- audio-visual equipment
- optical disc drives
- PC peripherals
- OA equipments
Key features
- Built-in Selectable One Channel or Two Channels Configuration
- VREF Voltage Setting Pin Enables PWM Duty Control
- Cross-Conduction Prevention Circuit Four Protection Circuits Provided: OCP, OVP, TSD and UVLO
