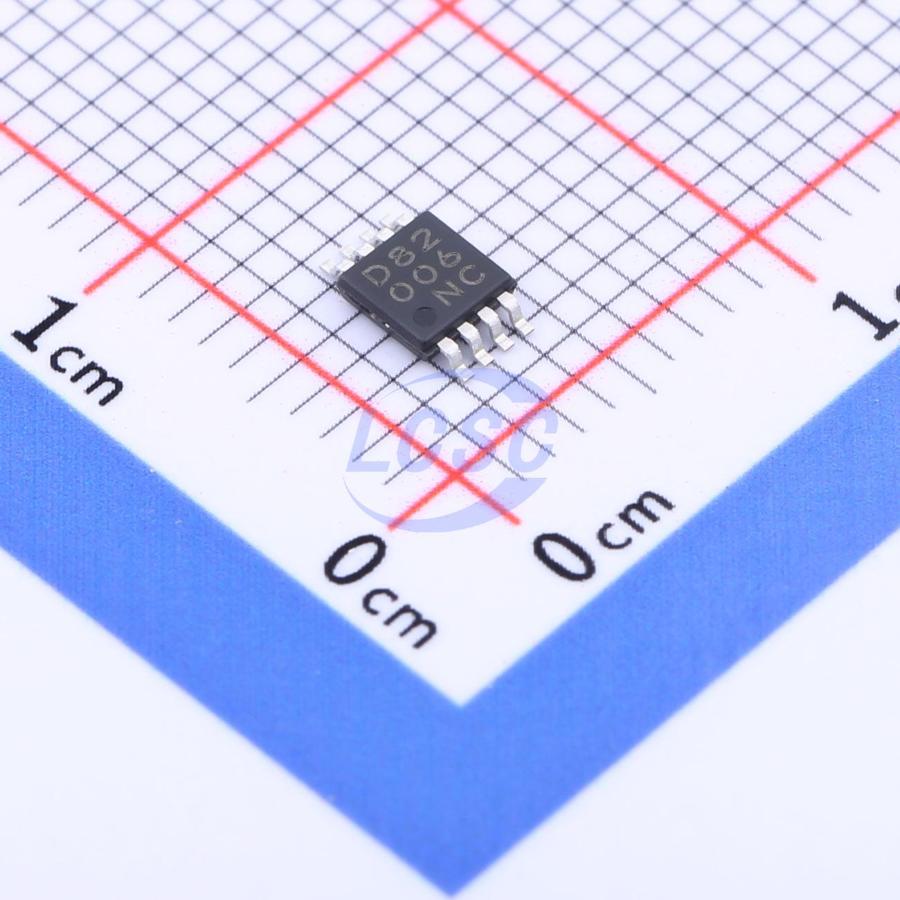

BD82006FVJ-MGE2
1 Active High 3A High Side Switch MSOP-8 Power Distribution Switches, Load Drivers RoHS
MSOP-8ROHS3 CompliantActive
Single Channel High Side Switch IC
- Manufacturer
- ROHM
- Manufacturer part #
- BD82006FVJ-MGE2
- Store part #
- C2150448
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C2150448
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.65 | ₹72.65 |
| 10+ | ₹58.54 | ₹585.40 |
| 30+ | ₹51.61 | ₹1,548.30 |
| 100+ | ₹44.45 | ₹4,445.00 |
| 500+ | ₹37.30 | ₹18,650.00 |
| 1,000+ | ₹35.13 | ₹35,130.00 |
1 × ₹72.65
₹72.65
excl. GST
₹85.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD82006FVJ-MGE2
₹72.65 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Soft-start;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 3A
- RDS(on)
- 70mΩ
- Operating Voltage
- 2.7V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
BD82006FVJ-M and BD82007FVJ-M are low on-resistance N-Channel MOSFET high-side power switches optimized for Universal Serial Bus (USB) applications. BD82006FVJ-M and BD82007FVJ-M are equipped with the function of over-current protection, thermal shutdown, under-voltage lockout and soft-start.
Key features
- AEC-Q100 Qualified
- Built-in Low ON-Resistance (Typ 70mΩ) N-Channel MOSFET
- Current Limit Threshold 2.4A
- Over-Current Protection
- Thermal Shutdown
- Open-Drain Fault Flag Output
- Under-Voltage Lockout Protection
- Soft-Start Circuit
- Reverse Current Protection when Power Switch Off
- Control Input Logic Active-High : BD82006FVJ-M Active-Low : BD82007FVJ-M
- TTL Enable Input
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP22814BM8-13#C2150209DIODES · MSOP-8 | DIODES | MSOP-8 | 10 | ₹101.00 · 10 in stock | View |
 | AP2511M8-13#C3151705DIODES · MSOP-8 | DIODES | MSOP-8 | 610 | ₹33.15 · 610 in stock | View |
 | AP22814AM8-13#C2150350DIODES · MSOP-8 | DIODES | MSOP-8 | On request | Price on request | Quote |
 | AP22804AM8-13#C442625DIODES · MSOP-8 | DIODES | MSOP-8 | On request | Price on request | Quote |
