ROHMDatasheet (PDF)

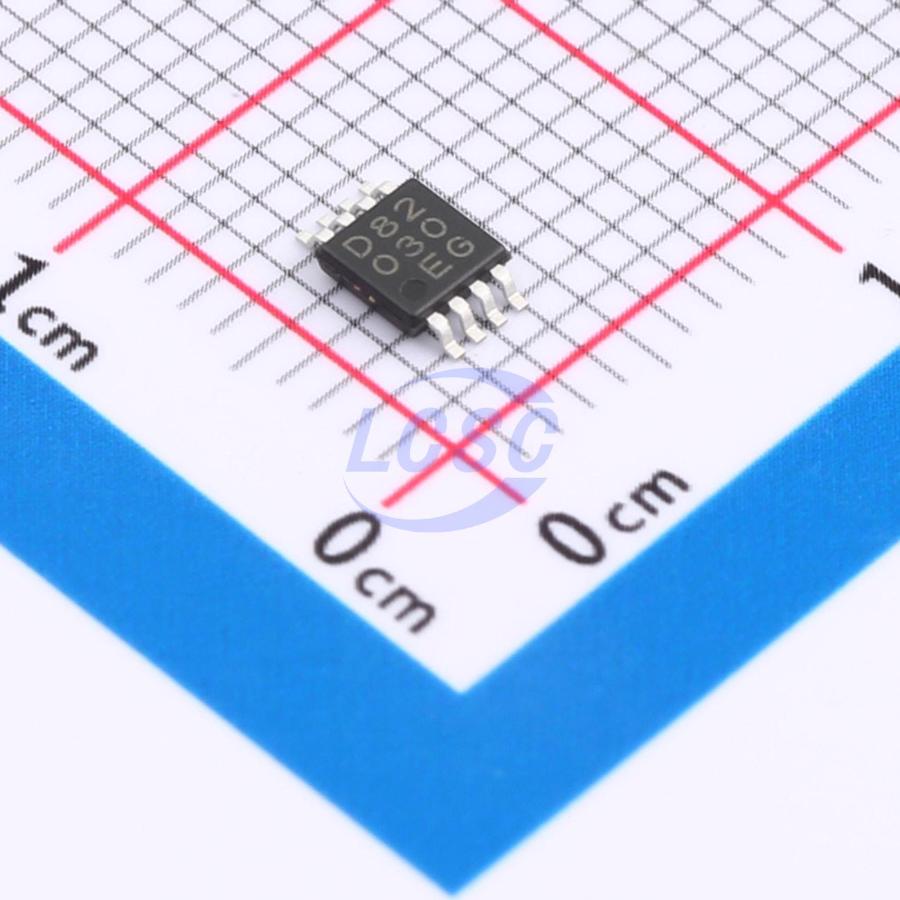

BD82030FVJ-GE2
1 1.5A Active High High Side Switch TSSOP-B8J Power Distribution Switches, Load Drivers RoHS
TSSOP-B8JROHS3 CompliantActive
1 Channel High Side Switch ICs
- Manufacturer
- ROHM
- Manufacturer part #
- BD82030FVJ-GE2
- Store part #
- C2680391
- Package / case
- TSSOP-B8J
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,950 in stock
#C2680391
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.40 | ₹142.00 |
| 50+ | ₹25.00 | ₹1,250.00 |
| 150+ | ₹23.55 | ₹3,532.50 |
| 500+ | ₹21.74 | ₹10,870.00 |
| 2,500+ | ₹20.93 | ₹52,325.00 |
| 5,000+ | ₹20.44 | ₹1,02,200.00 |
5 × ₹28.40
₹142.00
excl. GST
₹167.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BD82030FVJ-GE2
₹142.00 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Output discharge function;Reverse current blocking;Soft-start
- number of channels
- 1
- Maximum Continuous Current
- 1.5A
- Control Input Logic
- Active High
- Operating Voltage
- 4.5V~5.5V
- RDS(on)
- 72mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.159 g
Overview
BD82030FVJ is a Single Channel High Side Switch IC employing N-channel power MOSFET with low on resistance and low supply current for the power supply line of universal serial bus (USB). This IC has a built-in over current detection circuit, thermal shutdown circuit, under voltage lockout and soft start circuits.
Applications
- USB hub in consumer appliances, PC, PC peripheral equipment, and so forth
Key features
- Over-Current Protection：1.5A
- Control Input Logic：Active-High
- Output Discharge Function
- Reverse Current Protection when Power Switch Off
- Thermal Shutdown
- Open-Drain Fault Flag Output
- Under-Voltage Lockout
- OCP Fast Response
- Soft-Start Circuit
- ESD Protection
- UL：File No.E243261
- IEC 60950-1 CB_scheme: File No.US-20060-UL
