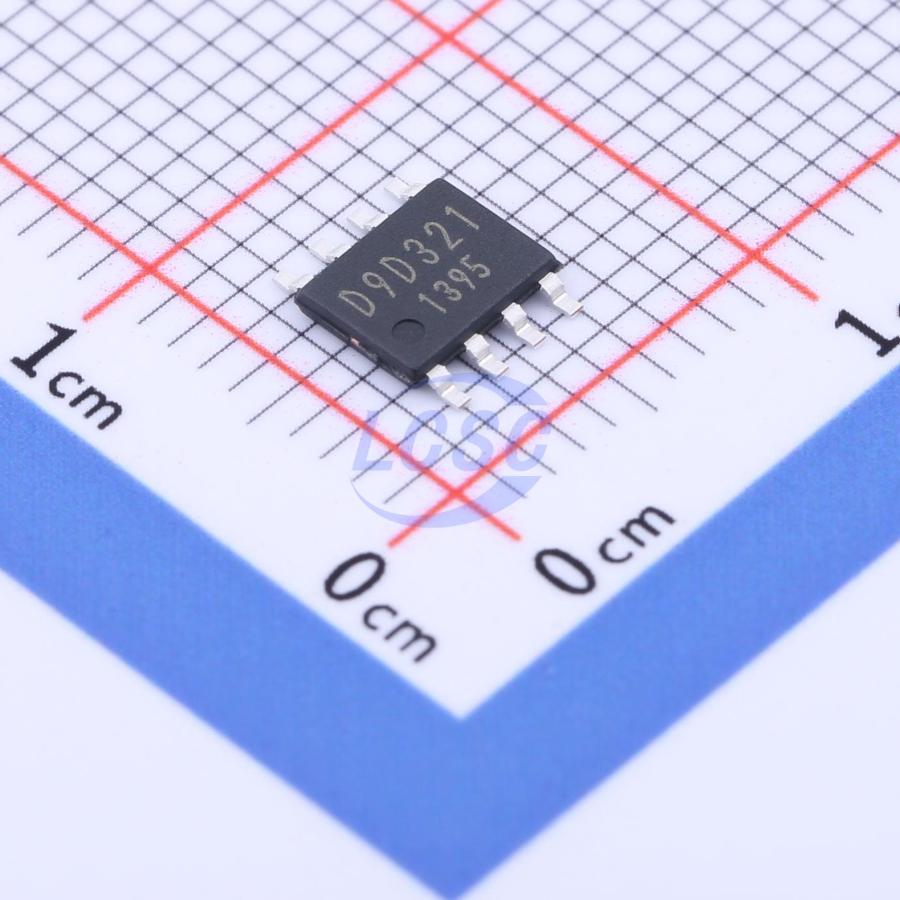

ROHM

BD9D321EFJ-E2

700kHz Step-down type Adjustable 765mV~7V 3A SOP-8-EP Voltage Regulators - DC DC Switching Regulators RoHS

SOP-8-EPROHS3 CompliantActive

4.5V to 18V Input, 3.0A Integrated MOSFET 1ch Synchronous Buck DC/DC Converter

Manufacturer: ROHM
Manufacturer part #: BD9D321EFJ-E2
Store part #: C2070889
Package / case: SOP-8-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,314 in stock

#C2070889

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.40	₹59.40
10+	₹45.58	₹455.80
30+	₹39.53	₹1,185.90
100+	₹31.98	₹3,198.00
500+	₹28.74	₹14,370.00
1,000+	₹26.79	₹26,790.00

Quantity (min 1)

1 × ₹59.40

₹59.40

excl. GST

₹70.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

BD9D321EFJ-E2

₹59.40 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 700kHz
Function: Step-down type
Number of Outputs: 1
Features: Light load efficient mode;Adjustable soft-start;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 765mV~7V
Output Current: 3A
Quiescent Current: 700uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.185 g

Overview

BD9D321EFJ is a synchronous buck switching regulator with built-in low on-resistance power MOSFETs. It is capable of providing current of up to 3 A. The SLLMTM control provides excellent efficiency characteristics in light-load conditions which make the product appropriate for equipment and devices that demand minimal standby power consumption. External phase compensation circuit is not necessary for it is a constant on-time control DC/DC converter with high speed response.

Applications

Step-down Power Supply for DSPs, FPGAs, Microprocessors, etc.
Set-top Box
LCD TVs
DVD / Blu-ray Player / Recorder
Entertainment Devices

Key features

Synchronous Single DC/DC Converter
Constant On-time Control
SLLMTM (Simple Light Load Mode) Control
Over Current Protection
Short Circuit Protection
Thermal Shutdown Protection
Under Voltage Lockout Protection
Adjustable Soft Start
HTSOP-J8 Package (Backside Heat Dissipation)
