Bardeen Micro.Datasheet (PDF)

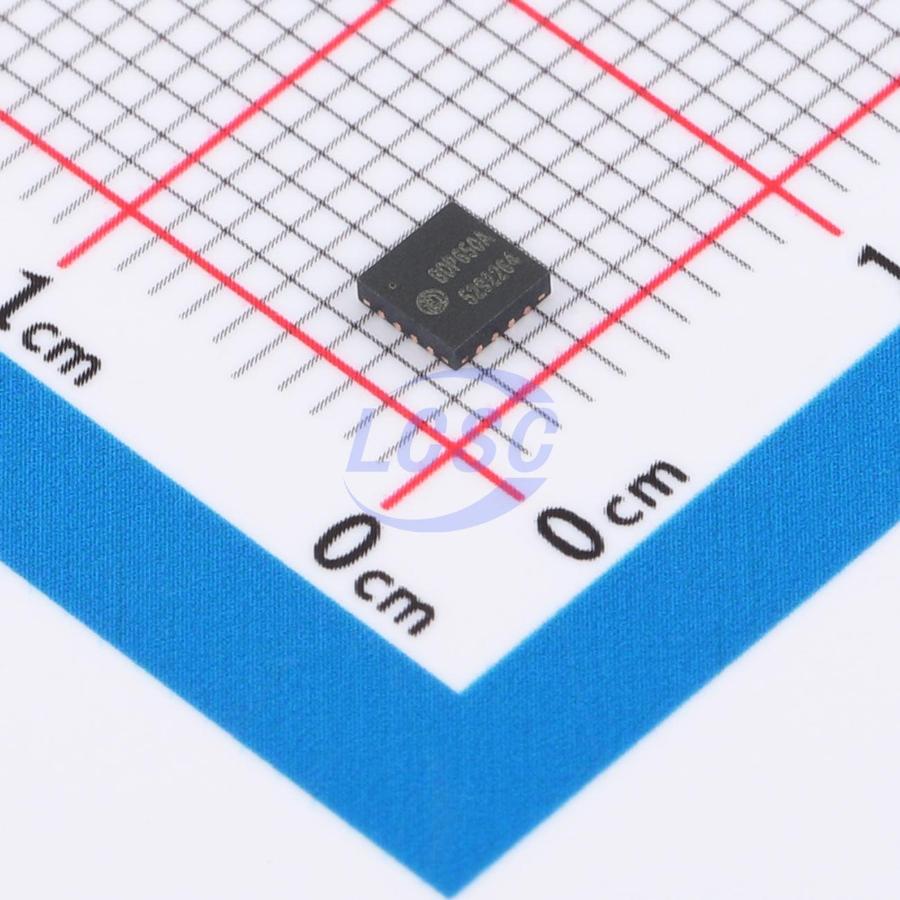

BDP650A
2.5V~5.5V 2-Wire Serial Interface 25mA 150mA QFN-16(3x3) Display Drivers
QFN-16(3x3)RoHSActive
- Manufacturer
- Bardeen Micro.
- Manufacturer part #
- BDP650A
- Store part #
- C51978090
- Package / case
- QFN-16(3x3)
- Category
- Display Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,620 in stock
#C51978090
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.24 | ₹66.20 |
| 50+ | ₹10.53 | ₹526.50 |
| 150+ | ₹9.18 | ₹1,377.00 |
| 500+ | ₹8.16 | ₹4,080.00 |
| 2,500+ | ₹7.36 | ₹18,400.00 |
| 5,000+ | ₹6.95 | ₹34,750.00 |
5 × ₹13.24
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
BDP650A
₹66.20 for 5 + GST
Specifications
- Voltage - Supply
- 2.5V~5.5V
- Configuration
- 8 Segment x 4 Digit
- Operating Temperature
- -40℃~+105℃
- Interface
- 2-Wire Serial Interface
- Features
- BCD input latch function;Internal reset function;PWM dimming
- Segment Drive Current
- 25mA
- Quiescent Current (Iq)
- 300uA
- Digit Drive Current
- 150mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.108 g
Overview
BDP650A is an LED driver control IC designed for two-wire serial communication. It integrates an I/O digital interface, data latches, LED driver circuitry, and grayscale adjustment circuit. This IC offers stable performance, high reliability, and strong noise immunity. Housed in a QFN16 package with a low profile, it is easy to integrate into digital tube modules and suitable for applications requiring continuous 24-hour long-term operation.
Applications
- Integrated digital tube modules
- LED display panels
- Home appliances such as microwave ovens, induction cookers, and water heaters
Key features
- Operating voltage range: 2.5V~5.5V
- Display mode: 8-segment × 4-digit
- 8-level grayscale control
- Segment drive current ≥25mA
- Digit drive current ≥150mA
- High-speed 2-wire serial interface
- Built-in clock oscillator circuit
- Built-in power-on reset circuit
- Package: QFN16 3×3
