BLDatasheet (PDF)

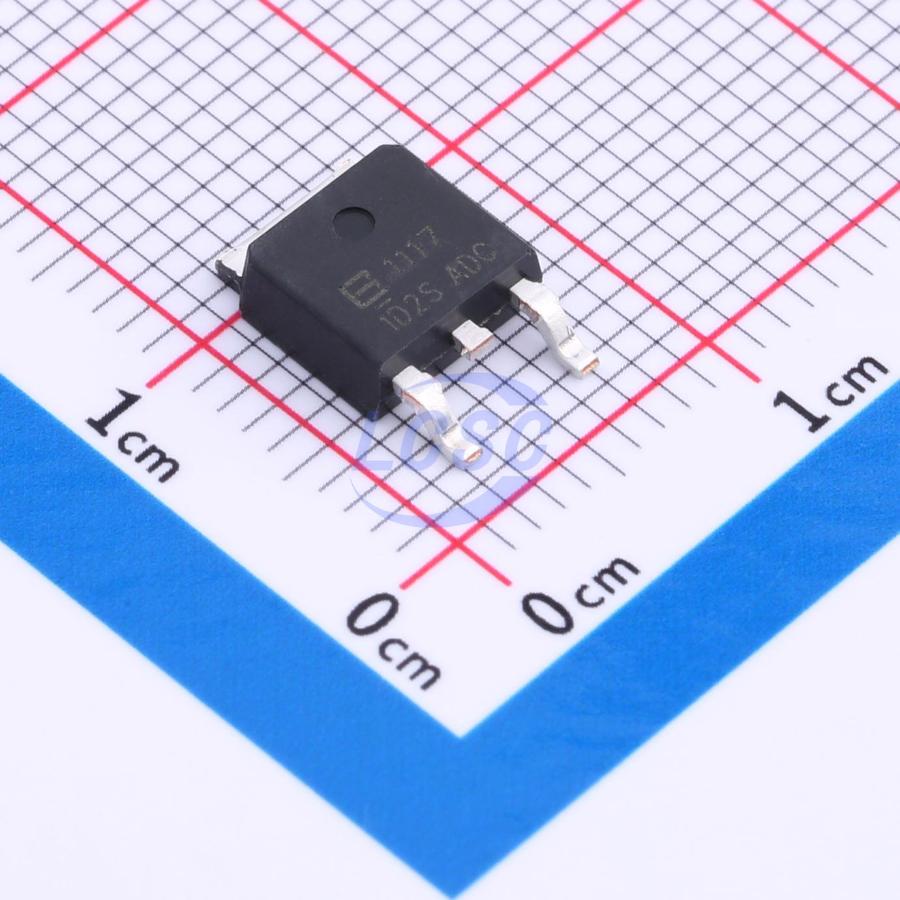

BL1117-ADJCY
1.25V~12V Positive Adjustable TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2RoHSActive
1A Bipolar Low Dropout (LDO) Three-Terminal Voltage Regulators
- Manufacturer
- BL
- Manufacturer part #
- BL1117-ADJCY
- Store part #
- C2763862
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C2763862
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.88 | ₹84.40 |
| 50+ | ₹13.35 | ₹667.50 |
| 150+ | ₹11.58 | ₹1,737.00 |
| 500+ | ₹10.25 | ₹5,125.00 |
| 2,500+ | ₹9.19 | ₹22,975.00 |
| 5,000+ | ₹8.67 | ₹43,350.00 |
5 × ₹16.88
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL1117-ADJCY
₹84.40 for 5 + GST
Specifications
- Output Voltage
- 1.25V~12V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Tj)
- Supply Current (Iq)
- 2mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Output Type
- Adjustable
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.49 g
Overview
BL1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. BL1117 features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, BL1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. BL1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. Other output voltage accuracy can be customized on demand, such as ±1%. BL1117 is available in SOT-223, TO-252 power package.
Applications
- Power Management for Computer Mother Board, Graphic Card
- BLD Monitor and BLD TV
- DVD Decode Board
- ADSL Modem Post Regulators for Switching Supplies
Key features
- Other than a fixed version and an adjustable version, output value can be customized on demand. Maximum output current is 1A
- Range of operation input voltage: Max 12V
- Standby current: 2mA (typ.)
- Line regulation: 0.1%/V (typ.)
- Load regulation: 10mV (typ.)
- Environment Temperature: -40°C~85°C
