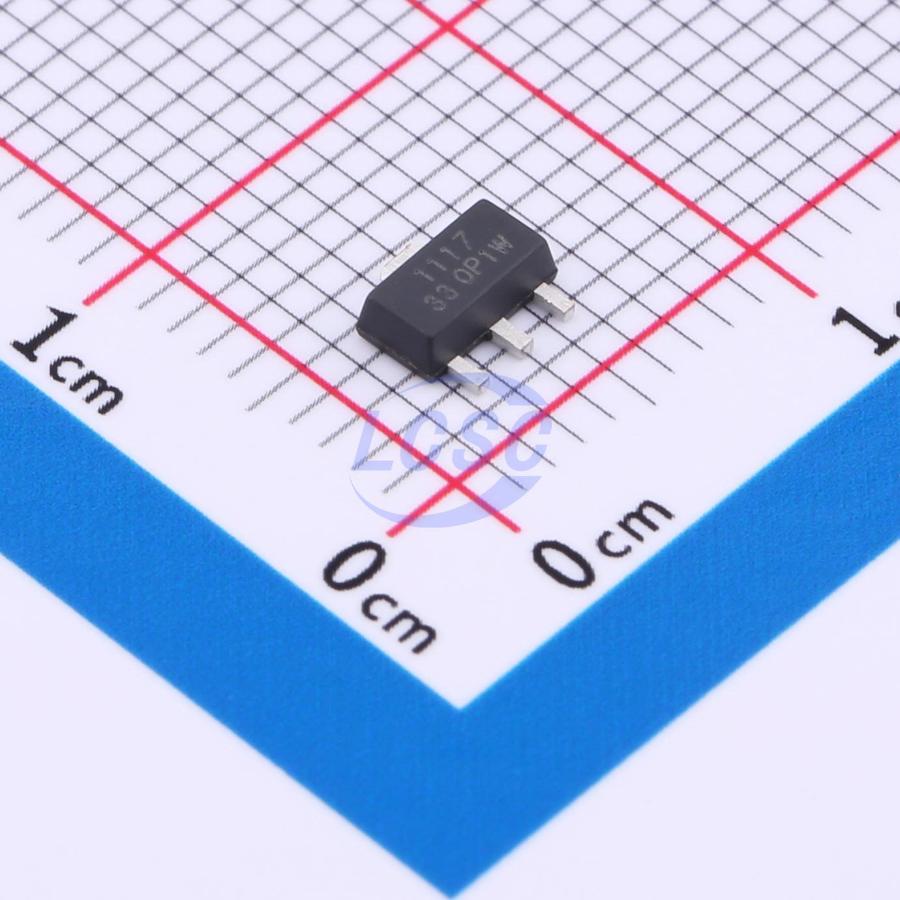

BL1117C-33CM

3.3V Positive Fixed SOT-89-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-89-3LRoHSActive

Low Dropout Three-Terminal Regulators

Manufacturer: BL
Manufacturer part #: BL1117C-33CM
Store part #: C2932480
Package / case: SOT-89-3L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,290 in stock

#C2932480

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
10+	₹9.90	₹99.00
100+	₹8.04	₹804.00
300+	₹7.12	₹2,136.00
1,000+	₹6.22	₹6,220.00
5,000+	₹5.66	₹28,300.00
10,000+	₹5.38	₹53,800.00

Quantity (min 10, multiples of 10)

10 × ₹9.90

₹99.00

excl. GST

₹116.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

BL1117C-33CM

₹99.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -20℃~+125℃@(Tj)
Supply Current (Iq): 5mA
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 12V
Output Type: Fixed
Features: Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.179 g

Overview

BL1117C is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current. BL1117C features a very low standby current 2mA compared to 5mA of competitor. Other than a fixed version, Vout = 1.2V, 1.8V, 2.5V, 3.3V, 5V, and 12V, BL1117C has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. BL1117C offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. Other output voltage accuracy can be customized on demand, such as ±1%. BL1117C is available in SOT - 223, TO - 252 power package.

Applications

Power Management for Computer Mother Board, Graphic Card
BLD Monitor and BLD TV
DVD Decode Board
ADSL Modem
Post Regulators for Switching Supplies

Key features

Other than a fixed version and an adjustable version, output value can be customized on demand. Maximum output current is 1A
Range of operation input voltage: Max 12V
Standby current: 2mA (typ.)
Line regulation: 0.1%/V (typ.)
Load regulation: 10mV (typ.)
Environment Temperature: -40°C ~ 85°C
