BL

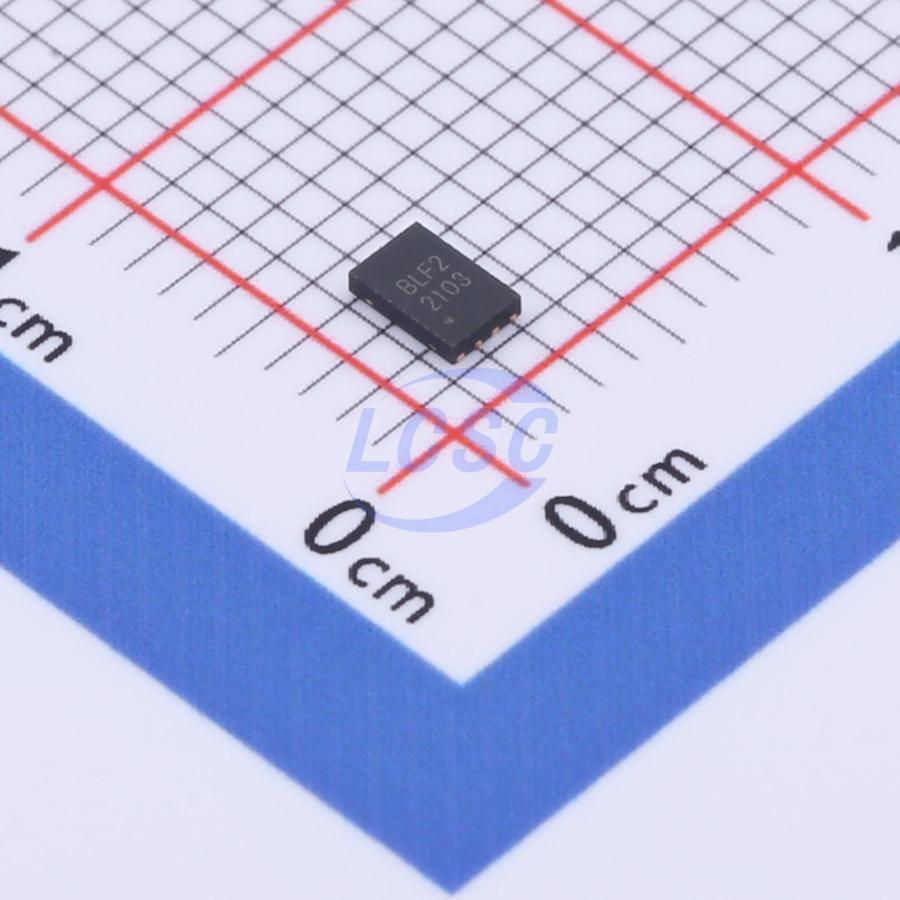

BL24C02F-NTRC
2Kbit 1MHz I2C DFN-8-EP(2x3) Memory
DFN-8-EP(2x3)RoHSActive
2K bits Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,200 in stock
#C2828222
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.19 | ₹65.95 |
| 50+ | ₹10.90 | ₹545.00 |
| 150+ | ₹9.75 | ₹1,462.50 |
| 500+ | ₹8.90 | ₹4,450.00 |
| 3,000+ | ₹7.98 | ₹23,940.00 |
| 6,000+ | ₹7.63 | ₹45,780.00 |
5 × ₹13.19
₹65.95
excl. GST
₹77.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL24C02F-NTRC
₹65.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
- The BL24C02F provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 256 words of 8 bits each. - The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all |2's complement| bidirectional data transfer protocol
- Memory array:
- 2 Kbits (256 bytes) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed:
- 1 MHZ
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
- Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 6000V
- 8-lead PDIP/SOP/TSSOP/ UDFN/TSOT23-5 and SOT23-5 packages
