BL

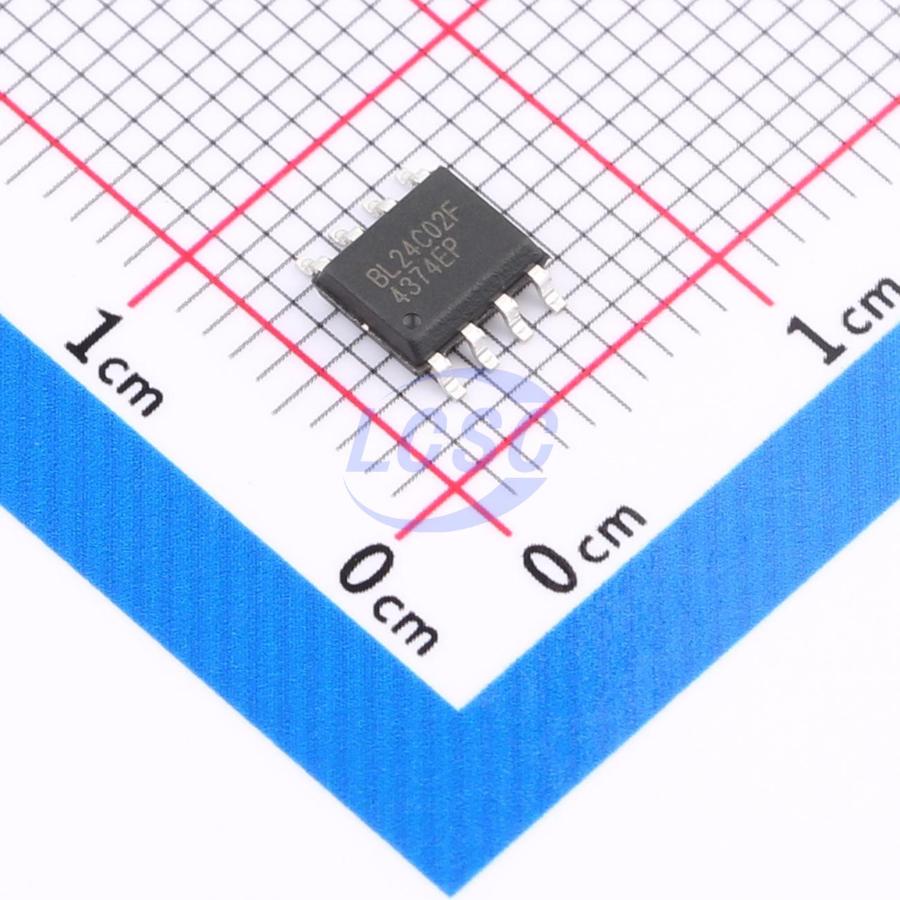

BL24C02F-PARC
2Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
2Kbits I2C Bidirectional Transfer Protocol Compatible EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,290 in stock
#C176653
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.23 | ₹102.30 |
| 100+ | ₹8.56 | ₹856.00 |
| 300+ | ₹7.73 | ₹2,319.00 |
| 2,500+ | ₹7.10 | ₹17,750.00 |
| 5,000+ | ₹6.60 | ₹33,000.00 |
| 10,000+ | ₹6.36 | ₹63,600.00 |
10 × ₹10.23
₹102.30
excl. GST
₹120.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL24C02F-PARC
₹102.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.301 g
Overview
- The BL24C02F provides 2048 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 256 words of 8 bits each. - The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array:
- 2 Kbits (256 bytes) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1 MHZ Random and sequential Read modes
- Write: Byte Write within 3 ms, Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 6000V
- 8-lead PDIP/SOP/TSSOP/UDFN and TSOT23 - 5 packages
