Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,740 in stock
#C498263
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.21 | ₹102.10 |
| 100+ | ₹8.23 | ₹823.00 |
| 300+ | ₹7.24 | ₹2,172.00 |
| 3,000+ | ₹6.48 | ₹19,440.00 |
| 6,000+ | ₹5.89 | ₹35,340.00 |
| 9,000+ | ₹5.60 | ₹50,400.00 |
10 × ₹10.21
₹102.10
excl. GST
₹120.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

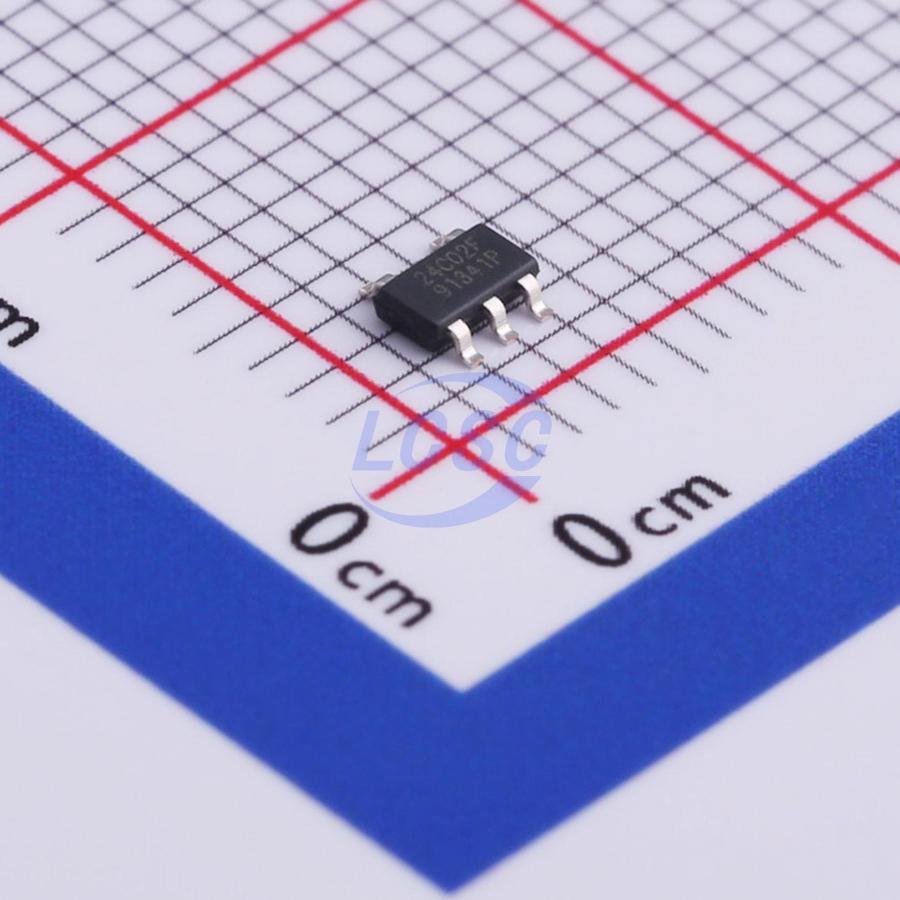

BL24C02F-RRRC
₹102.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
- The BL24C02F provides 2048 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 256 words of 8 bits each. - The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array:
- 2 Kbits (256bytes) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1MHZ Random and sequential Read modes
- Write: Byte Write within 3 ms Page Write within 3 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability
- Endurance: 1 Million Write Cycles Data Retention: 100 Years
- Enhanced ESD/Latch-up protection
- HBM 6000V
- 8-lead PDIP/SOP/TSSOP/ UDFN and TSOT23-5 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BL24C02F-TCRC#C7436803BL · SOT23-5 | BL | SOT23-5 | 26,810 | ₹7.77 · 26,810 in stock | View |
