Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,110 in stock
#C2932505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹5.99 | ₹1,797.00 |
| 3,000+ | ₹5.33 | ₹15,990.00 |
| 6,000+ | ₹4.80 | ₹28,800.00 |
| 9,000+ | ₹4.54 | ₹40,860.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

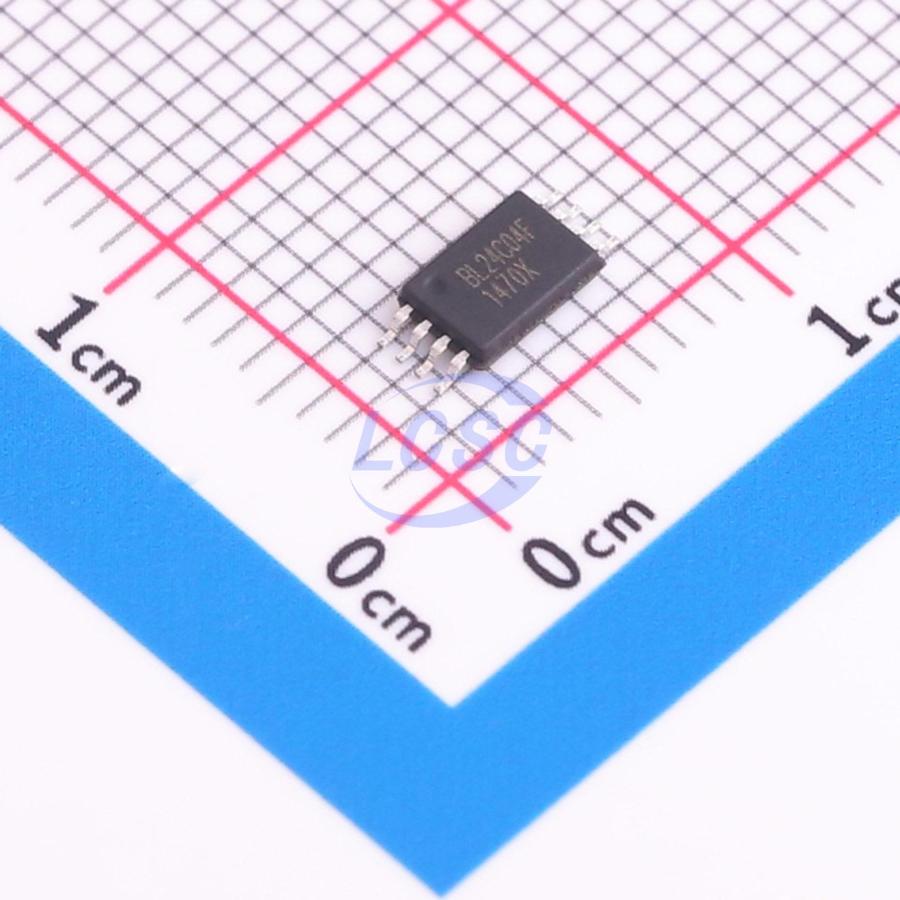

BL24C04F-SFRC
₹86.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.198 g
Overview
Write Protect Pin for Hardware Data Protection Schmitt Trigger, Filtered Inputs for Noise Suppression High-reliability Endurance: 1 Million Write Cycles Data Retention: 100 Years Enhanced ESD/Latch-up protection HBM 6000V 8-lead PDIP/SOP/TSSOP/ UDFN and TSOT23-5 packages The BL24C04F provides 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 256 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. BL24C04F, 4K SERIAL EEPROM: Internally organized with 32 pages of 16 bytes each, the 4K requires a 9-bit data word address for random word addressing. DATA SECURITY: The BL24C04F has a hardware data protection scheme that allows the user to write protect the entire memory when the WP pin is at VCC.
Key features
- Compatible with all |2 complement bidirectional data transfer protocol
- Memory array: 4 Kbits (512 bytes) of EEPROM
- Page size: 16 bytes
- Single supply voltage and high speed: 1 MHz
- Random and sequential Read modes
- Write: Byte Write within 3 ms
- Page Write within 3 ms
