BL

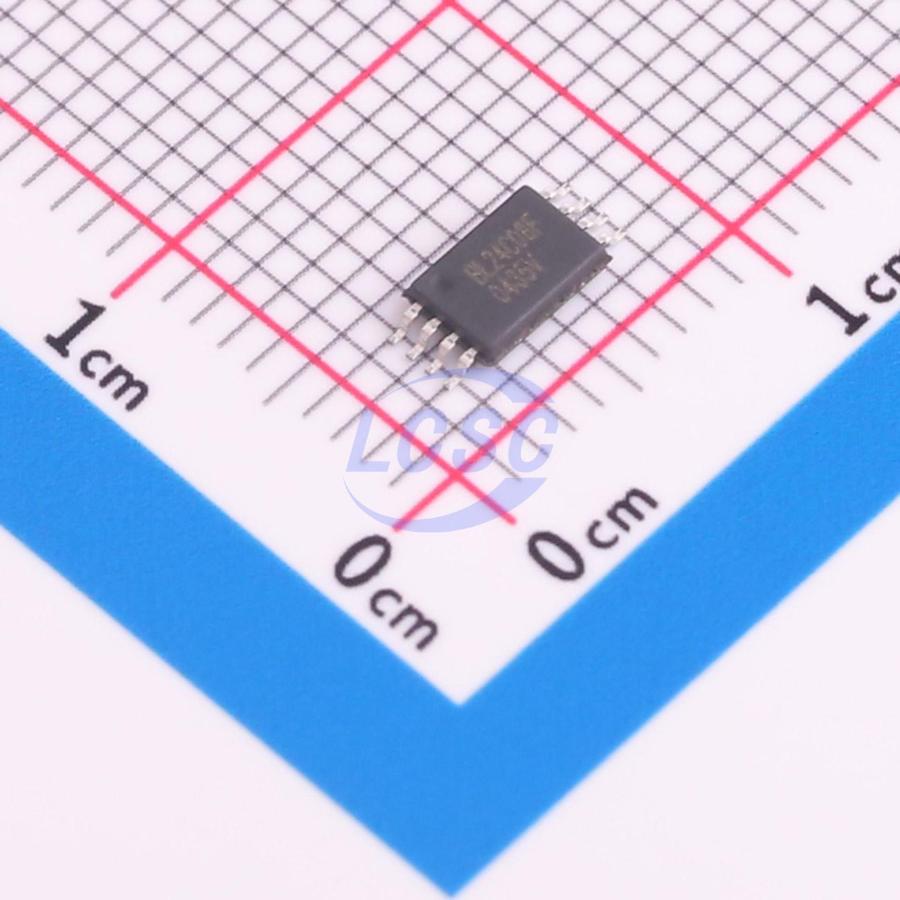

BL24C08F-SFRC
8Kbit 1MHz I2C TSSOP-8 Memory
TSSOP-8RoHSActive
8K bits I²C Interface EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,990 in stock
#C2763859
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.34 | ₹93.40 |
| 100+ | ₹7.36 | ₹736.00 |
| 300+ | ₹6.38 | ₹1,914.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.03 | ₹30,180.00 |
| 9,000+ | ₹4.74 | ₹42,660.00 |
10 × ₹9.34
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL24C08F-SFRC
₹93.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.202 g
Overview
The BL24C08F provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array: 8K bits (1024x8) of EEPROM, Page size: 16 bytes
- Single supply voltage and high speed: 1 MHz
- Random and sequential Read modes
- Write: Byte Write within 3 ms, Page Write within 3 ms, Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection, HBM 5000V
- 8-lead PDIP/SOP/TSSOP/ UDFN/SOT23-5 and TSOT23-5 packages
