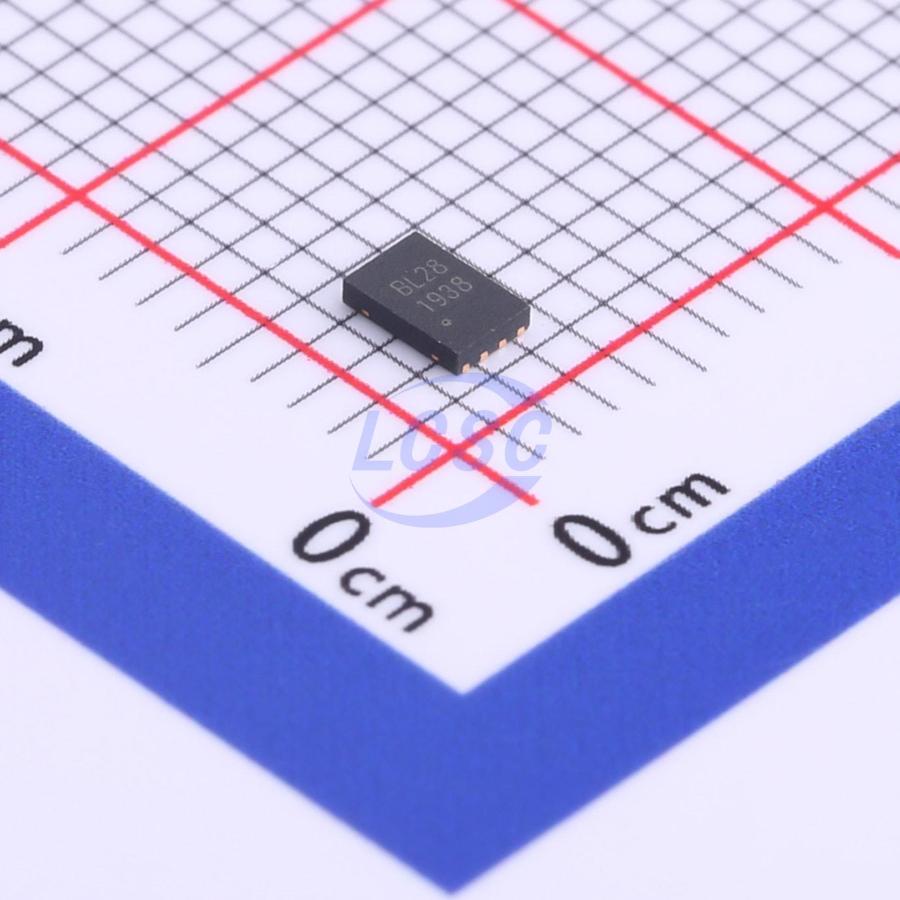

BL24C128A-NTRC
128Kbit 1MHz I2C UDFN-8L-EP(2x3) Memory
I2C EEPROM Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,735 in stock
#C691880
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.48 | ₹117.40 |
| 50+ | ₹18.59 | ₹929.50 |
| 150+ | ₹16.48 | ₹2,472.00 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 3,000+ | ₹12.70 | ₹38,100.00 |
| 6,000+ | ₹12.00 | ₹72,000.00 |
5 × ₹23.48
₹117.40
excl. GST
₹138.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL24C128A-NTRC
₹117.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function;Page write protection function
- Memory Size
- 128Kbit
- Voltage - Supply
- 1.7V~5.5V;0.5mA
- Clock Frequency
- 1MHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.5uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The BL24C128A provides 131,072 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 16,384 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The BL24C128A is available in space-saving 8-lead PDIP, 8-lead SOP, and 8-lead TSSOP，TSOT23-5 packages and is accessed via a two-wire serial interface. In addition, the BL24C128A is available in 1.7V (1.7V to 5.5V) version.
Key features
- Compatible with all I2C bidirectional data transfer protocol
- 1 MHz, 400 kHz, 100 kHz
- Memory array: 128 Kbit (16 Kbytes) of EEPROM
- Page size: 64 bytes
- Additional Write lockable page
- Single supply voltage and high speed: 1 MHz
- Write: Byte Write within 3 ms, Page Write within 3 ms
- Operating Ambient Temperature: From -40 ℃ up to +85 ℃
- High-reliability: Endurance: 1 Million Write Cycles, Data Retention: 100 Years
- Internally Organized: BL24C128A, 16,384 X 8 (128K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- Write Protect Pin for Hardware Data Protection
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- 8-lead PDIP/SOP/TSSOP/UDFN/TSOT23-5 packages
