BL

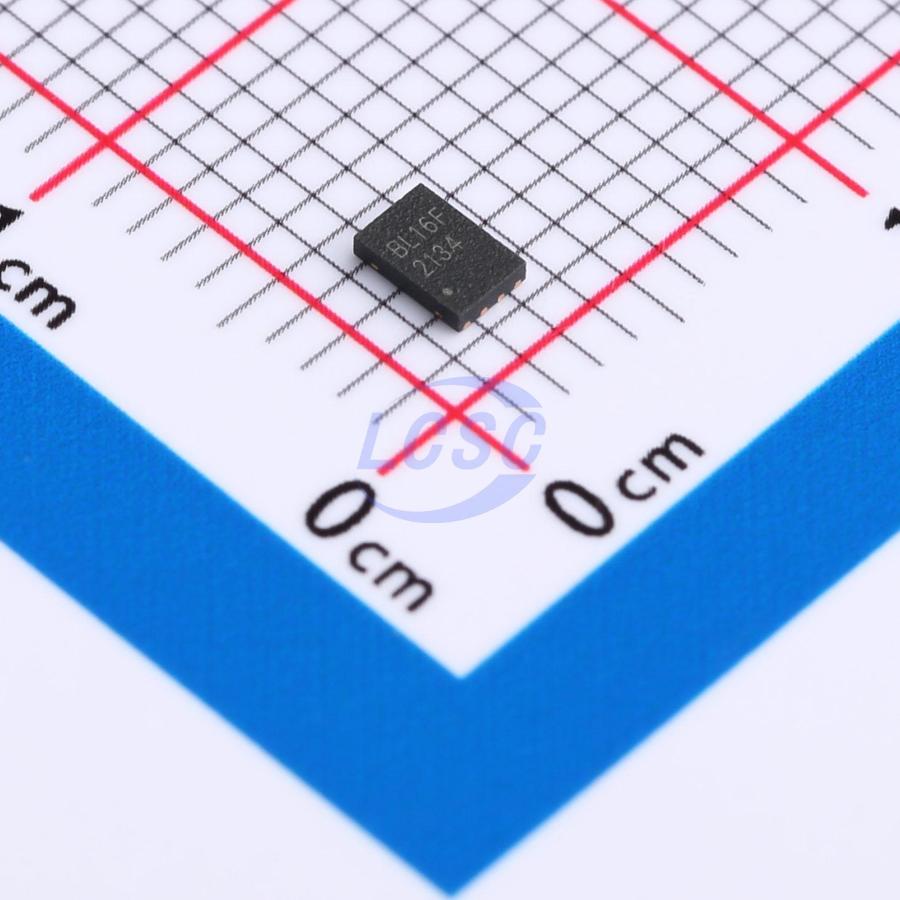

BL24C16F-NTRC
16Kbit 1MHz I2C UDFN-8L(2x3) Memory
UDFN-8L(2x3)RoHSActive
16K-bit I²C Interface EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,810 in stock
#C2999163
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.83 | ₹69.15 |
| 50+ | ₹10.93 | ₹546.50 |
| 150+ | ₹9.49 | ₹1,423.50 |
| 500+ | ₹8.39 | ₹4,195.00 |
| 3,000+ | ₹7.53 | ₹22,590.00 |
| 6,000+ | ₹7.09 | ₹42,540.00 |
5 × ₹13.83
₹69.15
excl. GST
₹81.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL24C16F-NTRC
₹69.15 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The BL24C16F provides 16384 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array: – 16K bits (2048x8) of EEPROM – Page size: 16 bytes
- Single supply voltage and high speed: – 1 MHz
- Random and sequential Read modes
- Write: Byte Write within 3 ms Page Write within 3 ms – Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protect
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability: – Endurance: 1 Million Write Cycles – Data Retention: 100 Years
- Enhanced ESD/Latch-up protection HBM ±3000V MM ±350V CDM ±2000V
- 8-lead PDIP/SOP/TSSOP/ UDFN/SOT23-5 and TSOT23-5 packages
