7,750 in stock
#C53457498
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.93 | ₹64.65 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.17 | ₹1,375.50 |
| 500+ | ₹8.23 | ₹4,115.00 |
| 3,000+ | ₹7.47 | ₹22,410.00 |
| 6,000+ | ₹7.10 | ₹42,600.00 |
5 × ₹12.93
₹64.65
excl. GST
₹76.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

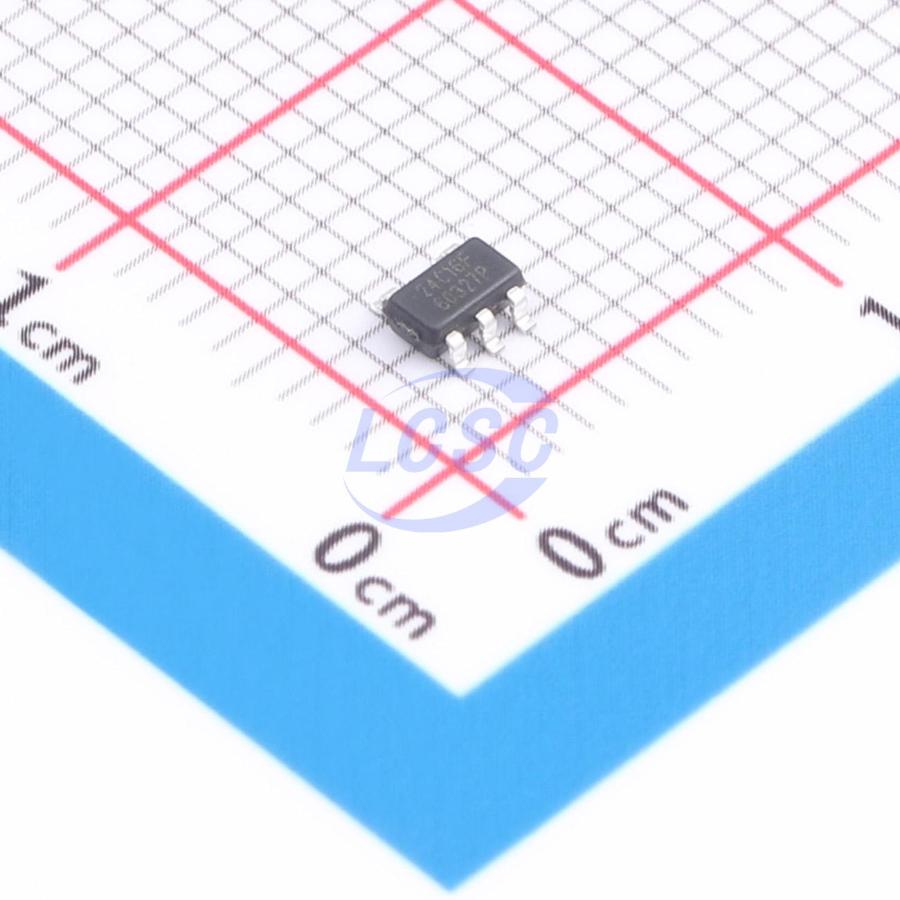

BL24C16F-TCRC
₹64.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Memory Size
- 16Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 1.9ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
The BL24C16F provides 16384 bits of serial EEPROM, organized as 2048 words of 8 bits each. The device is optimized for industrial and commercial applications where low-power and low-voltage operation are critical.
Key features
- Compatible with all I²C bidirectional data transfer protocols
- Memory array: 16K-bit (2048×8) EEPROM, page size 16 bytes
- Single supply voltage, high-speed: 1 MHz random and sequential read modes
- Write: byte write completes within 3 ms, page write completes within 3 ms, partial page write supported
- Write protect pin for hardware data protection
- Schmitt trigger inputs with noise suppression filtering
- High reliability: 1 million write cycle endurance, 100-year data retention
- Enhanced ESD/latch-up protection: HBM ±3000V, MM ±350V, CDM ±2000V
- Available in 8-pin PDIP/SOP/TSSOP/UDFN/SOT23-5 and TSOT23-5 packages
