Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,445 in stock
#C177775
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.33 | ₹71.65 |
| 50+ | ₹11.64 | ₹582.00 |
| 150+ | ₹10.31 | ₹1,546.50 |
| 500+ | ₹9.30 | ₹4,650.00 |
| 3,000+ | ₹8.49 | ₹25,470.00 |
| 6,000+ | ₹8.10 | ₹48,600.00 |
5 × ₹14.33
₹71.65
excl. GST
₹84.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

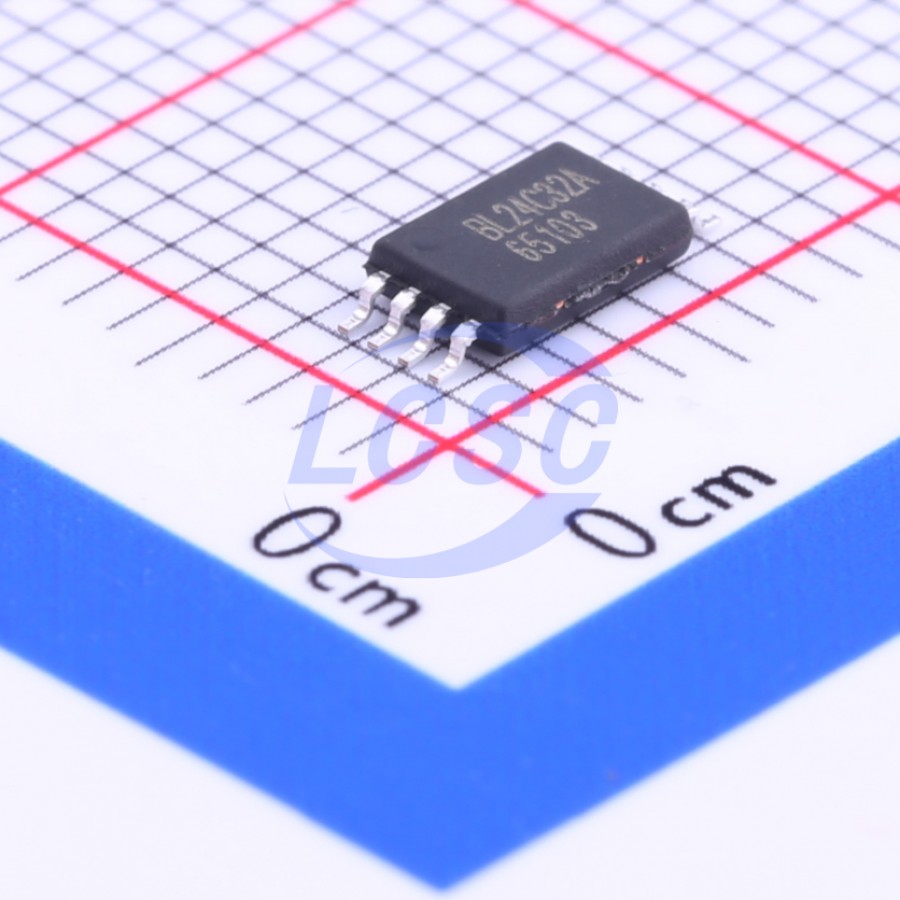

BL24C32A-SFRC
₹71.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 32Kbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
The BL24C32A provides 32768 bits of serial electrically erasable and programmable readonly memory (EEPROM), organized as 4096 byte. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The BL24C32A offers an additional page, named the Identification Page (32 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array:
- 32 Kbits (4Kbytes) of EEPROM
- Page size: 32 bytes
- Additional Write lockable page
- Single supply voltage and high speed:
- 1.7V-5.5V
- 1MHz
- Random and sequential Read modes
- Write:
- Byte Write within 3 ms
