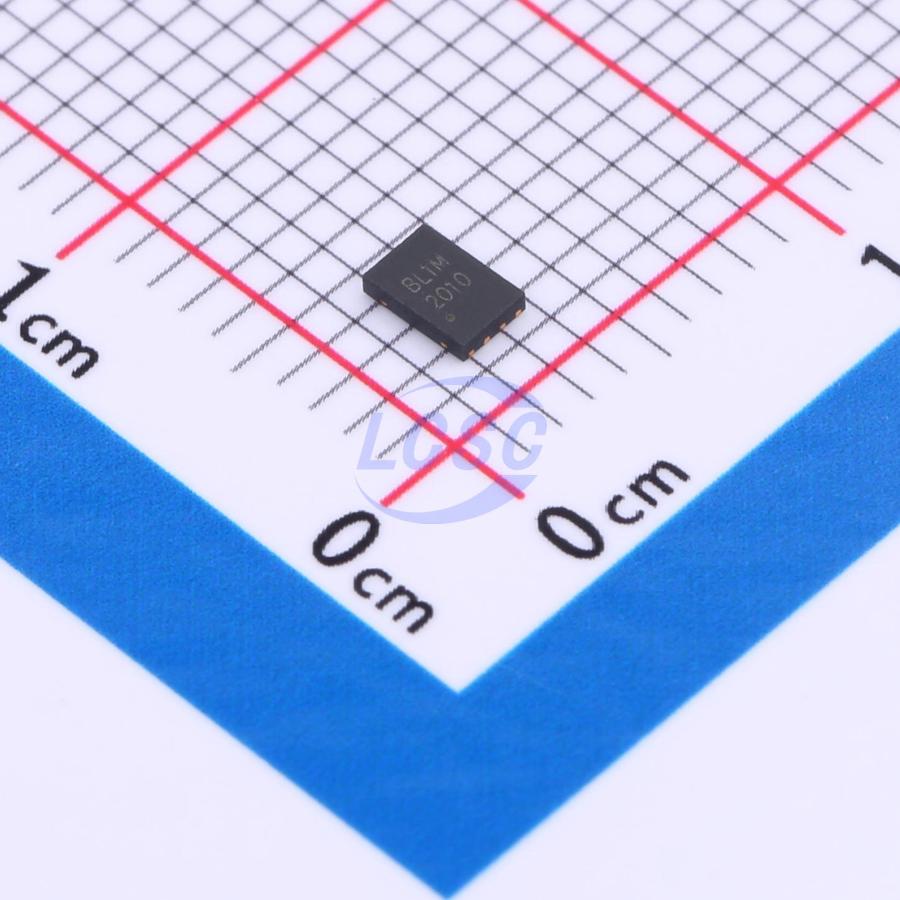

BL24CM1A-NTRC
1Mbit 1MHz I2C UDFN-8L(2x3) Memory
1Mbit I²C Interface EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,500 in stock
#C2999164
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.51 | ₹122.51 |
| 10+ | ₹99.53 | ₹995.30 |
| 30+ | ₹88.03 | ₹2,640.90 |
| 100+ | ₹76.76 | ₹7,676.00 |
| 500+ | ₹70.04 | ₹35,020.00 |
| 1,000+ | ₹66.57 | ₹66,570.00 |
1 × ₹122.51
₹122.51
excl. GST
₹144.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BL24CM1A-NTRC
₹122.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;0.28mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 4,000,000 Cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The BL24CM1A provides 1048576 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 131072 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The BL24CM1A offers an additional page, named the Identification Page (256 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array: 1024 Kbits (128 Kbytes) of EEPROM
- Page size: 256 bytes
- Additional Write lockable page
- Single supply voltage and high speed:
- 400kHz@1.7V
- 1MHz@2.5V
- Random and sequential Read modes
- Write: Byte Write within 5 ms, Page Write within 5 ms
- Partial Page Writes Allowed
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability Endurance: 4 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection – HBM 8000V
- 8-lead PDIP/SOP/TSSOP/UDFN/WLCSP packages
