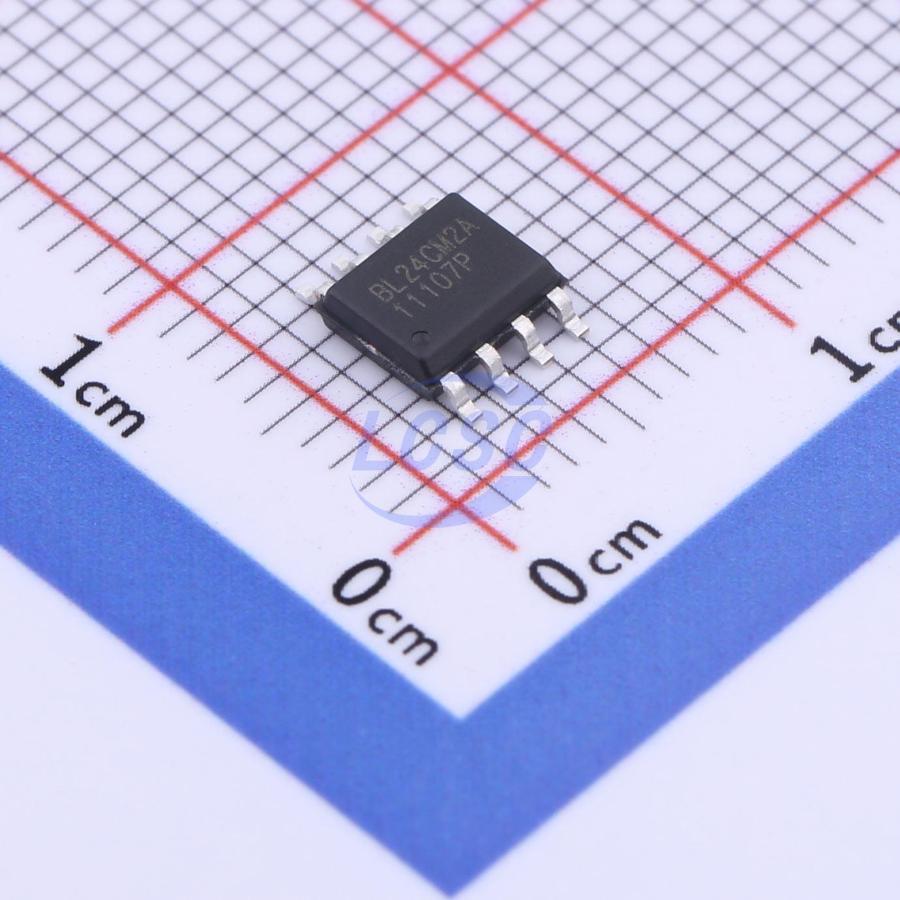

BL24CM2A-PARC
2Mbit 1MHz I2C SOP-8 Memory
2M Bits EEPROM with I²C Protocol, High Reliability
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,621 in stock
#C2932512
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹147.91 | ₹147.91 |
| 10+ | ₹120.94 | ₹1,209.40 |
| 30+ | ₹107.23 | ₹3,216.90 |
| 100+ | ₹93.75 | ₹9,375.00 |
| 500+ | ₹85.70 | ₹42,850.00 |
| 1,000+ | ₹81.56 | ₹81,560.00 |
1 × ₹147.91
₹147.91
excl. GST
₹174.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL24CM2A-PARC
₹147.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in error correction code (ECC) function;Noise suppression function
- Memory Size
- 2Mbit
- Voltage - Supply
- 2.8V~5.5V;0.56mA
- Clock Frequency
- 1MHz
- Access Time
- 0.45us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 8ms
- Standby Supply Current
- 0.03uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The BL24CM2A provides 2097152 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 262144 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The BL24CM2A offers an additional page, named the Identification Page (256 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Compatible with all I²C bidirectional data transfer protocol
- Memory array: 2048 Kbits (256 Kbytes) of EEPROM
- Page size: 256 bytes
- Additional Write lockable page
- Single supply voltage and high speed: 1 MHz
- Random and sequential Read modes
- Write: Byte Write within 8 ms
- Page Write within 8 ms
- ECC (Error Correction Code)
- Write Protect Pin for Hardware Data Protection
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- High-reliability Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- Enhanced ESD/Latch-up protection: HBM 8000V
- 8-lead SOP/WLCSP packages
