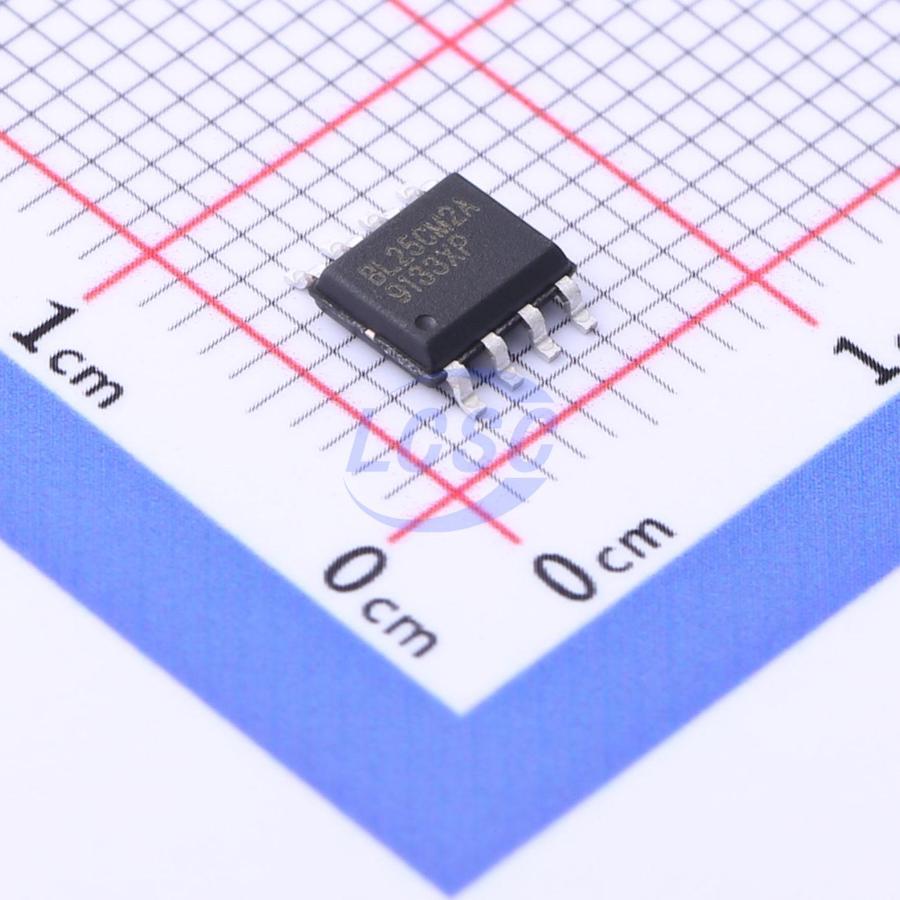

BL25CM2A-PARC
2Mbit 2MHz SPI SOP-8 Memory
2M bits SPI Interface EEPROM
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,288 in stock
#C2932516
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.79 | ₹176.79 |
| 10+ | ₹151.83 | ₹1,518.30 |
| 30+ | ₹137.92 | ₹4,137.60 |
| 100+ | ₹122.50 | ₹12,250.00 |
| 500+ | ₹115.55 | ₹57,775.00 |
| 1,000+ | ₹112.51 | ₹1,12,510.00 |
1 × ₹176.79
₹176.79
excl. GST
₹208.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BL25CM2A-PARC
₹176.79 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Built-in error correction code (ECC) function;Built-in write enable latch (WEL)
- Memory Size
- 2Mbit
- Voltage - Supply
- 2.8V~5.5V;3mA
- Clock Frequency
- 2MHz
- Access Time
- 75ns
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 8ms
- Standby Supply Current
- 5uA
- Interface
- SPI
- Write Cycle Endurance
- 1,000,000 cycles
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
The BL25CM2A devices are Electrically Erasable Programmable Memory (EEPROM) organized as 262144x8 bits, accessed through the SPI bus. The BL25CM2A can operate with a supply range from 2.8V to 5.5V. These devices are guaranteed over the -40℃/+85℃ temperature range. The BL25CM2A offers an additional page, named the Identification Page (256 bytes). The Identification Page can be used to store sensitive application parameters which can be (later) permanently locked in Read-only mode.
Key features
- Serial Peripheral Interface (SPI) data transfer protocol
- Memory array: – 2M bits (256 Kbytes) of EEPROM Page size: 256 bytes – Additional Write lockable page
- Single supply voltage and high speed: – BL25CM2A 2MHz （2.8V - 5.5V） BL25CM2A5 5MHz （2.8V - 5.5V）
- Random and sequential Read modes Write:
- Byte Write within 8 ms Page Write within 8 ms Partial Page Writes Allowed
- Write Protect: quarter, half or whole memory array
- Operating temperature range: from -40℃ to 85℃
- High-reliability Endurance: 1 Million Write Cycles Data Retention: 100 Years
- Enhanced ESD/Latch-up protection – HBM 8000V
- 8-lead SOP and WLCSP8 packages
